4 mm, 1/4", 1.3 MP, M6-mount Low-Distortion M12 Lens (LS-MBL-0132)
  • 4 mm, 1/4", 1.3 MP, M6-mount Low-Distortion M12 Lens (LS-MBL-0132)

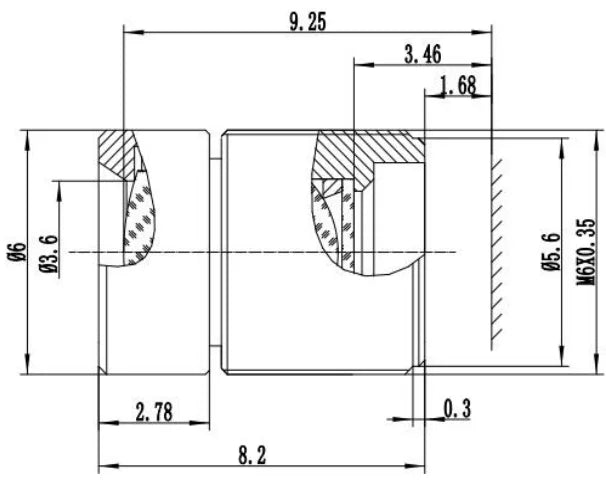

  • LS-MBL-0132 dimensions (mm)

M12 board lenses

4 mm, 1/4", 1.3 MP, M6-mount Low-Distortion M12 Lens (LS-MBL-0132)

Model LS-MBL-0132

  • Focal length4.0mm
  • Sensor1/4"
  • ApertureF6.0 Fixed iris
  • Resolution1.3 Megapixel
$89.00

Ships in 2-3 weeks

0.12 kg shipping weight

Volume pricing, Net 30 terms or a formal quote for purchasing?

Request a quote

4 mm, 1/4", 1.3 MP, M6-mount Low-Distortion M12 Lens (LS-MBL-0132)LS-MBL-0132

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

4 mm, 1/4", 1.3 MP, M6-mount Low-Distortion M12 Lens. A 4 mm F6.0 fixed-iris M6 S-mount lens for 1/4" 1.3-megapixel sensors with <1% distortion, for video conferencing, recognition, scanners and machine vision. At a glance: focal length 4.0mm; format 1/4"; resolution 1.3 Megapixel; aperture F6.0 Fixed iris; mount M6 x 0.35p.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-MBL-0132
Format1/4"
Angle of view (1/4")59° @ image dia. 4.5; 62° @ 4.8
CRA20°

Optics

Focal length4.0mm
ApertureF6.0 Fixed iris
M.O.D.0.25m
Distortion1%
Back focal length3.46mm

Sensor and imaging

Resolution1.3 Megapixel

Mechanical

Sizedia. 6 x 8.2mm
MountM6 x 0.35p
Weight15g
Optical total length9.88 mm
Shipping weight (estimated)0.12 kg
