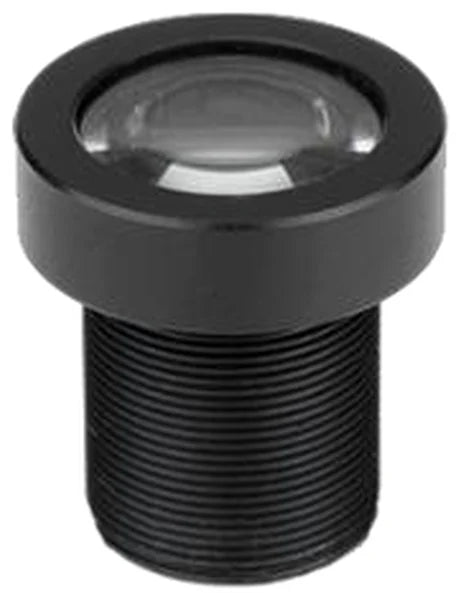

12 mm, 1/1.8", 5 MP, M12-mount Low-Distortion M12 Lens, 5.0 MP (LS-MBL-0140)
  • 12 mm, 1/1.8", 5 MP, M12-mount Low-Distortion M12 Lens, 5.0 MP (LS-MBL-0140)

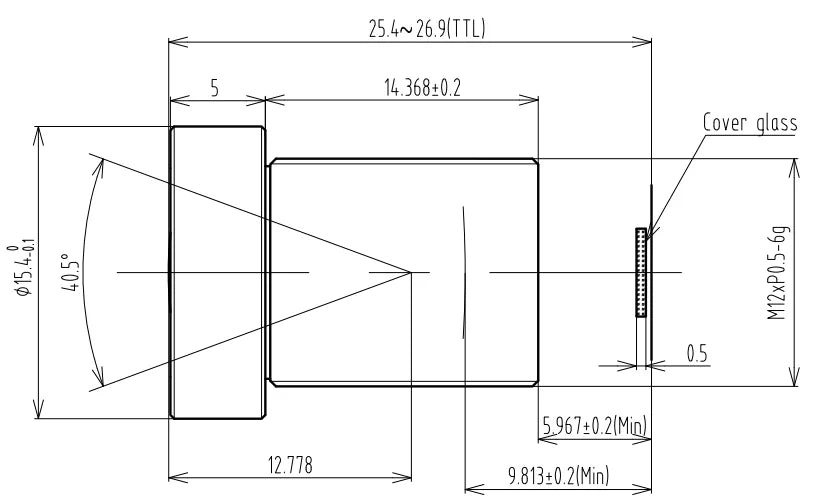

  • LS-MBL-0140 dimensions (mm)

M12 board lenses

12 mm, 1/1.8", 5 MP, M12-mount Low-Distortion M12 Lens, 5.0 MP (LS-MBL-0140)

Model LS-MBL-0140

  • Focal length12 mm
  • MountM12
  • Sensor1/1.8"
  • ApertureF2.8 Fixed Iris
  • Resolution5.0 MP
$89.00

Ships in 2-3 weeks

0.11 kg shipping weight

Volume pricing, Net 30 terms or a formal quote for purchasing?

Request a quote

12 mm, 1/1.8", 5 MP, M12-mount Low-Distortion M12 Lens, 5.0 MP (LS-MBL-0140)LS-MBL-0140

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

12 mm, 1/1.8", 5 MP, M12-mount Low-Distortion M12 Lens. 12 mm, 1/1.8" 5 MP M12 (S-mount) lens with <0.2% distortion, F2.8; small size. Covers 1/1.8", 1/2" and 1/2.5" cameras for video conferencing, UAV, scanners, sports DV and machine vision. At a glance: focal length 12 mm; format 1/1.8"; resolution 5.0 MP; aperture F2.8 Fixed Iris; mount M12.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-MBL-0140
Format1/1.8"
Angle of view (1/1.8", DxHxV)40.5 x 32.8 x 24.5 deg
Angle of view (1/1.8")41 x 33 x 25 deg
Angle of view (1/3")28 x 22.5 x 17 deg

Optics

Focal length12 mm
ApertureF2.8 Fixed Iris
M.O.D.0.1 m
TTL25.4
Distortion<0.2%
Relative illumination68%
Total track length (TTL)25.4 mm
Distortion TV<0.2% ( <0.1% @ 1/3" )
Back focal length9.81 mm

Sensor and imaging

Resolution5.0 MP

Mechanical

Sizedia. 15 x 19.5 mm
MountM12
Weight8 g
Object size (W.D=500 mm)375 x 300 x 225 mm
Shipping weight (estimated)0.11 kg
