5 mm, 1/4", 1.3 MP, M6-mount Low-Distortion M12 Lens (LS-MBL-0134)
Model LS-MBL-0134
- Focal length5.0mm
- Sensor1/4"
- ApertureF6.8 Fixed iris
- Resolution1.3 Megapixel
$89.00
Ships in 2-3 weeks
0.11 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
5 mm, 1/4", 1.3 MP, M6-mount Low-Distortion M12 Lens. A 5 mm F6.8 fixed-iris M6 S-mount lens for 1/4" 1.3-megapixel sensors with 0.45% distortion, for conferencing, recognition, scanners and machine vision. At a glance: focal length 5.0mm; format 1/4"; resolution 1.3 Megapixel; aperture F6.8 Fixed iris; mount M6 x 0.35p.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-MBL-0134 |
|---|---|
| Format | 1/4" |
| Angle of view (1/4") | 47 x 41 x 26.2 (AR0144) |
| CRA | <12.5° |
Optics
| Focal length | 5.0mm |
|---|---|
| Aperture | F6.8 Fixed iris |
| Distortion | 0.45% |
| Back focal length | 4.2mm |
| Total track length (TTL) | 8.7mm |
Sensor and imaging
| Resolution | 1.3 Megapixel |
|---|

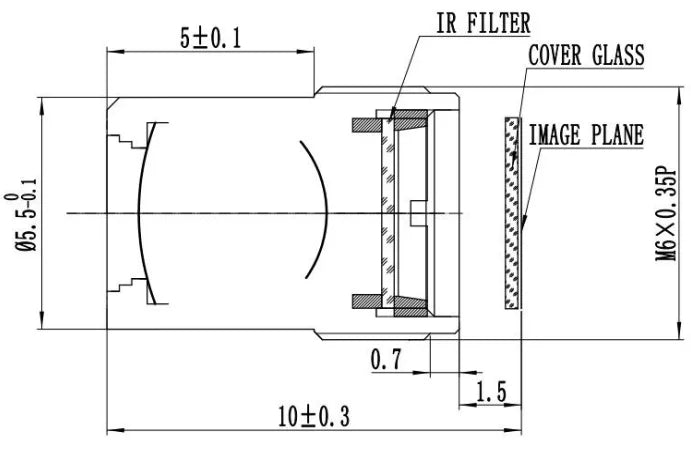

Mechanical
| Size | dia. 5.5 x 8.5mm |
|---|---|
| Mount | M6 x 0.35p |
| Weight | 10g; 1G2P |
| Shipping weight (estimated) | 0.11 kg |
