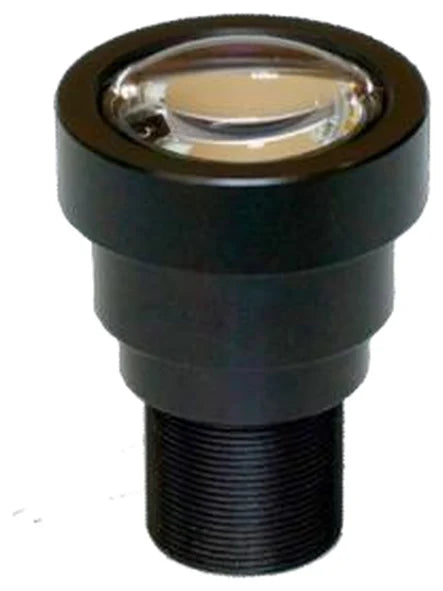

50 mm, 2/3", 5 MP, M12-mount Low-Distortion M12 Lens (LS-MBL-0125)
  • 50 mm, 2/3", 5 MP, M12-mount Low-Distortion M12 Lens (LS-MBL-0125)
  • LS-MBL-0125 dimensions (mm)

M12 board lenses

50 mm, 2/3", 5 MP, M12-mount Low-Distortion M12 Lens (LS-MBL-0125)

Model LS-MBL-0125

  • Focal length50 mm
  • MountM12
  • Sensor2/3"
  • ApertureF3.5 Fixed iris
  • Resolution5 Megapixel
$89.00

Ships in 2-3 weeks

0.12 kg shipping weight

Volume pricing, Net 30 terms or a formal quote for purchasing?

Request a quote

50 mm, 2/3", 5 MP, M12-mount Low-Distortion M12 Lens (LS-MBL-0125)LS-MBL-0125

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

50 mm, 2/3", 5 MP, M12-mount Low-Distortion M12 Lens. A 50 mm, 2/3" format, 5 megapixel super-low-distortion M12 (S-mount) lens for machine vision, face recognition and compact cameras. At a glance: focal length 50 mm; format 2/3" (dia. 11 / 8.8 x 6.6); resolution 5 Megapixel; aperture F3.5 Fixed iris; mount M12 x 0.5.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-MBL-0125
Format2/3" (dia. 11 / 8.8 x 6.6)
Angle of view (2/3", HxV)10.1 x 7.6 deg
Angle of view (1/1.8", HxV)8.2 x 6.1 deg
Angle of view (1/2", HxV)7.3 x 5.5 deg
B.F.L.5.5 mm
T.T.L.8.7 mm
Construction6G

Optics

Focal length50 mm
ApertureF3.5 Fixed iris
M.O.D.0.5 m
Back focal length5.5 mm
Total track length (TTL)8.7 mm

Sensor and imaging

Resolution5 Megapixel

Mechanical

Sizedia. 22 x 30 mm
MountM12 x 0.5
Weight14.5 g
Shipping weight (estimated)0.12 kg
