25 mm, 2/3", 5 MP, M12-mount Low-Distortion M12 Lens (LS-MBL-0123)
  • 25 mm, 2/3", 5 MP, M12-mount Low-Distortion M12 Lens (LS-MBL-0123)

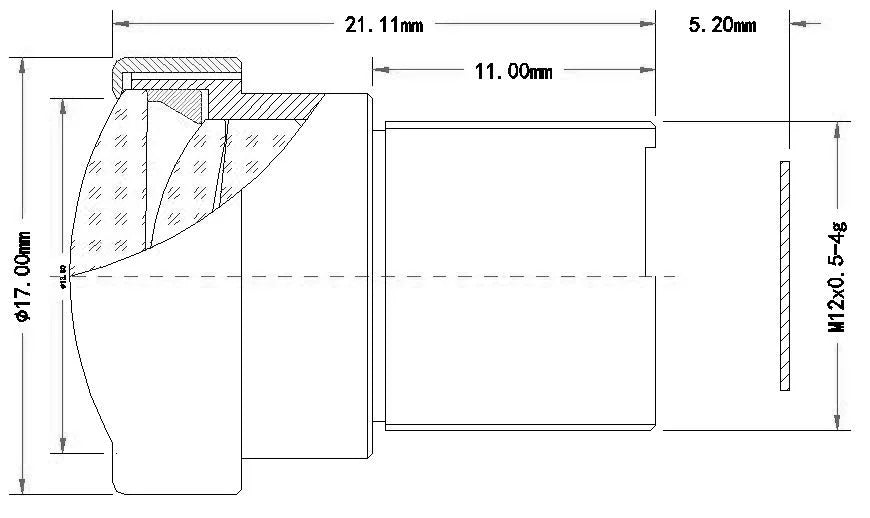

  • LS-MBL-0123 dimensions (mm)

M12 board lenses

25 mm, 2/3", 5 MP, M12-mount Low-Distortion M12 Lens (LS-MBL-0123)

Model LS-MBL-0123

  • Focal length25 mm
  • MountM12
  • Sensor2/3"
  • ApertureF1.8 fixed iris
  • Resolution5.0 MP
$89.00

Ships in 2-3 weeks

0.11 kg shipping weight

Volume pricing, Net 30 terms or a formal quote for purchasing?

Request a quote

25 mm, 2/3", 5 MP, M12-mount Low-Distortion M12 Lens (LS-MBL-0123)LS-MBL-0123

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

25 mm, 2/3", 5 MP, M12-mount Low-Distortion M12 Lens. 25 mm 2/3" 5 MP M12 (S-mount) lens with <0.3% distortion for machine vision, face recognition and 4K cameras; covers 2/3", 1/1.8" and 1/2" sensors. At a glance: focal length 25 mm; format 2/3"; resolution 5.0 MP; aperture F1.8 fixed iris; mount M12.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-MBL-0123
Format2/3"
Angle of view (2/3", DxHxV)24.9 x 20 x 15 deg
NotesEconomy (low-price) type

Optics

Focal length25 mm
ApertureF1.8 fixed iris
M.O.D.0.5 m
Distortion<0.3%

Sensor and imaging

Resolution5.0 MP

Mechanical

Sizedia. 17 x 21.1 mm
MountM12
Weight9 g
Shipping weight (estimated)0.11 kg
