12 mm, 1/1.7", 12 MP, M12-mount Low-Distortion M12 Lens (LS-MBL-0141)
  • 12 mm, 1/1.7", 12 MP, M12-mount Low-Distortion M12 Lens (LS-MBL-0141)

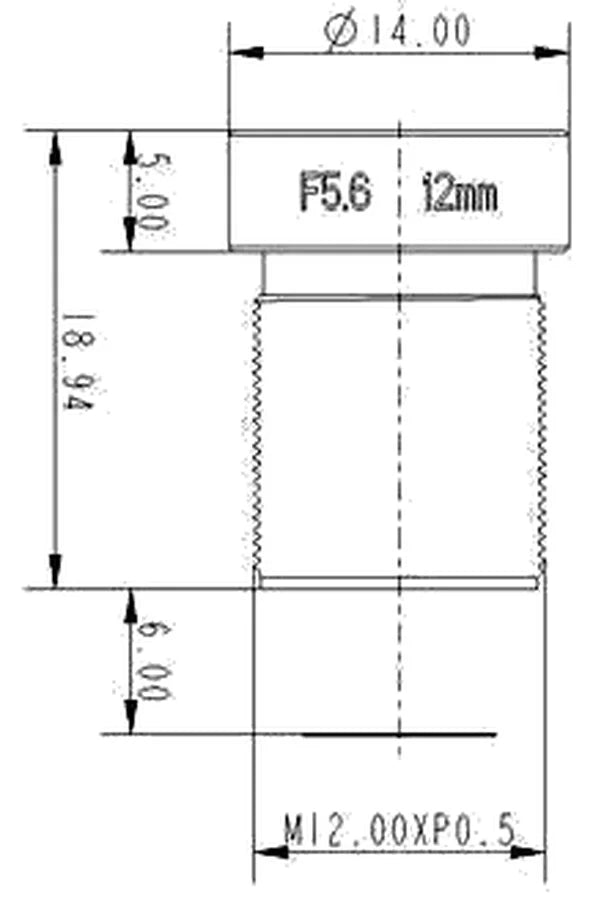

  • LS-MBL-0141 dimensions (mm)

M12 board lenses

12 mm, 1/1.7", 12 MP, M12-mount Low-Distortion M12 Lens (LS-MBL-0141)

Model LS-MBL-0141

  • Focal length12mm
  • MountM12
  • Sensor1/1.7"
  • ApertureF5.6 Fixed iris
  • Resolution12 Megapixel
$109.00

Ships in 2-3 weeks

0.11 kg shipping weight

Volume pricing, Net 30 terms or a formal quote for purchasing?

Request a quote

12 mm, 1/1.7", 12 MP, M12-mount Low-Distortion M12 Lens (LS-MBL-0141)LS-MBL-0141

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

12 mm, 1/1.7", 12 MP, M12-mount Low-Distortion M12 Lens. A 12 mm F5.6 fixed-iris M12 lens for 1/1.7" 12-megapixel sensors with -0.28% TV distortion, for recognition, scanners and machine vision. At a glance: focal length 12mm; format 1/1.7" / dia. 9.3; resolution 12 Megapixel; aperture F5.6 Fixed iris; mount M12 x P0.5.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-MBL-0141
Format1/1.7" / dia. 9.3
Angle of view (1/1.7")33.16 x 22.44 x 40.28 deg
Angle of view (1/2")28.92 x 21.90 x 36.58 deg
NotesWorking temperature -10° ~ +50°

Optics

Focal length12mm
ApertureF5.6 Fixed iris
M.O.D.60mm
FOV at M.O.D.-17.61 x -11.74
Distortion (TV, 200-400 mm WD)-0.28%
Distortion TV (200~400 mm WD)-0.28%
Distortion-0.28%

Sensor and imaging

Resolution12 Megapixel

Environment and compliance

Operating temperature-10° ~ +50°

Mechanical

Sizedia. 14 x 18.94mm
MountM12 x P0.5
Weight4g
Optical total length24.94 mm
Shipping weight (estimated)0.11 kg
