M12 board lenses

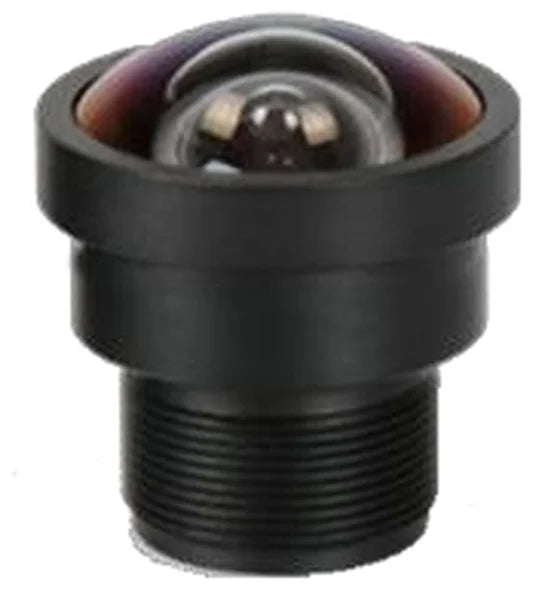

2.2 mm, 1/2.7", 8 MP, M12-mount Low-Distortion M12 Lens (LS-MBL-0153)
Model LS-MBL-0153
- Focal length2.2 mm
- MountM12
- Sensor1/2.7"
- ApertureF2.2 Fixed iris
- Resolution8.0 Megapixel
$109.00
Ships in 2-3 weeks
0.14 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
2.2 mm, 1/2.7", 8 MP, M12-mount Low-Distortion M12 Lens. 2.2 mm F2.2 M12 lens for 1/2.7" 8 MP sensors, IR-cut 650 nm, supplied with a holder (20 mm hole distance). At a glance: focal length 2.2 mm; format 1/2.7"; resolution 8.0 Megapixel; aperture F2.2 Fixed iris; mount M12.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-MBL-0153 |
|---|---|
| Format | 1/2.7" |
| Angle of view (1/2.7") | 120 x 110 x 74 deg |
| Angle of view (1/2.8") | 117 x 108 x 72 deg |
| IR-Filter | IR CUT 650nm |
| CRA | <11° |
| Holder | 20 mm hole distance |
Optics
| Focal length | 2.2 mm |
|---|---|
| Max image circle | dia. 6.8 mm |
| Aperture | F2.2 Fixed iris |
| Distortion | <-4.5% |
| Back focal length | 4.52 mm |
| Relative illumination | >62% |
| Total track length (TTL) | 24.5 mm |
Sensor and imaging
| Resolution | 8.0 Megapixel |
|---|

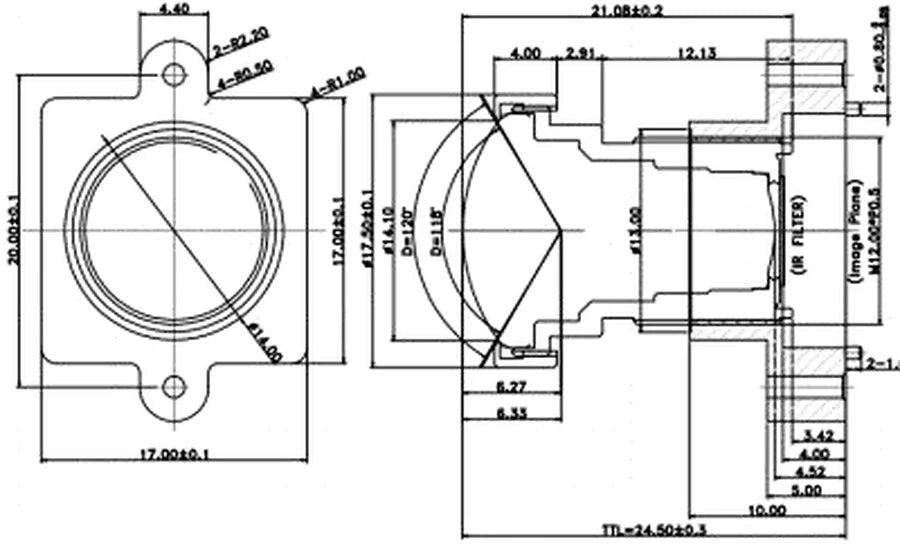

Mechanical
| Size | dia. 17 x 21.08 mm |
|---|---|
| Mount | M12 |
| Weight | 30 g |
| Shipping weight (estimated) | 0.14 kg |
