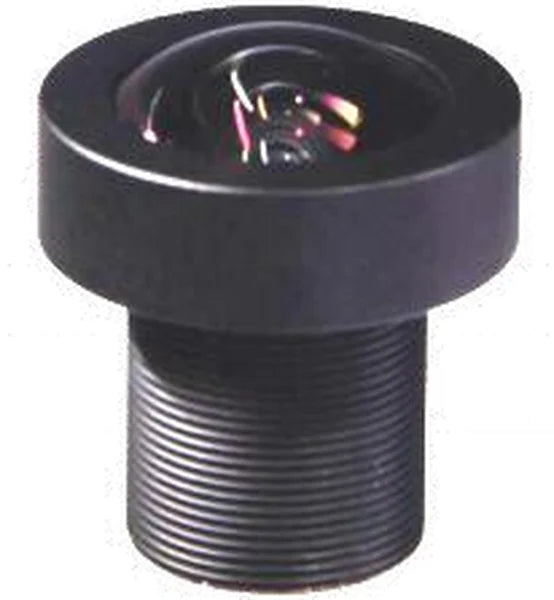

3.3 mm, 1/2.3", 16 MP, M12-mount Low-Distortion M12 Lens (LS-MBL-0159)
  • 3.3 mm, 1/2.3", 16 MP, M12-mount Low-Distortion M12 Lens (LS-MBL-0159)

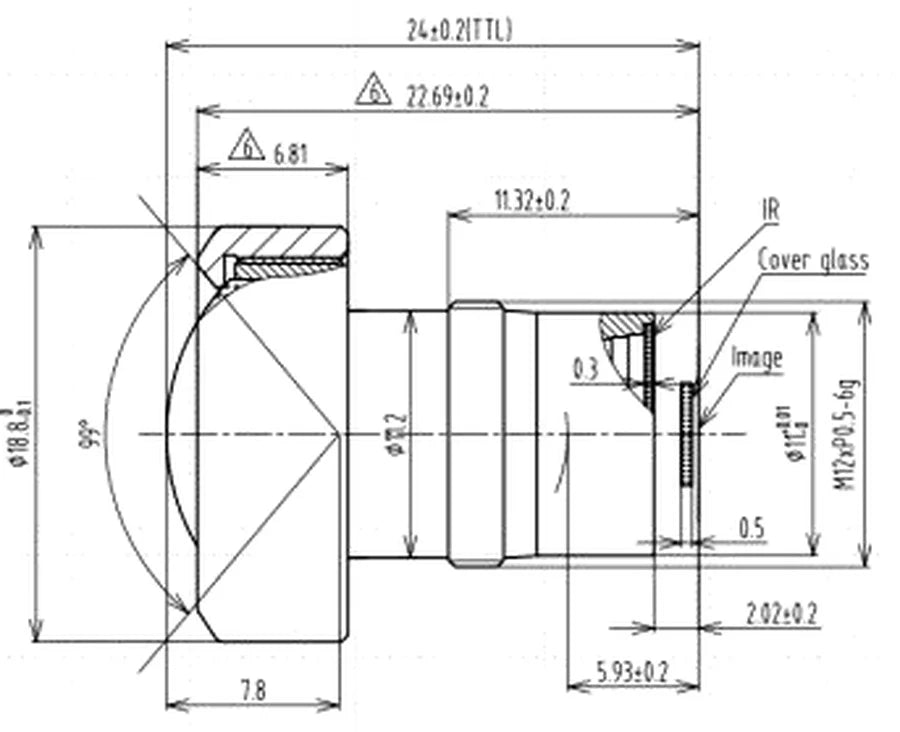

  • LS-MBL-0159 dimensions (mm)

M12 board lenses

3.3 mm, 1/2.3", 16 MP, M12-mount Low-Distortion M12 Lens (LS-MBL-0159)

Model LS-MBL-0159

  • Focal length3.3 mm
  • MountM12
  • Sensor1/2.3"
  • ApertureF2.8 Fixed Iris
  • Resolution16 Megapixel
$109.00

Ships in 2-3 weeks

0.13 kg shipping weight

Volume pricing, Net 30 terms or a formal quote for purchasing?

Request a quote

3.3 mm, 1/2.3", 16 MP, M12-mount Low-Distortion M12 Lens (LS-MBL-0159)LS-MBL-0159

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

3.3 mm, 1/2.3", 16 MP, M12-mount Low-Distortion M12 Lens. 3.3 mm F2.8 IR M12 lens for 1/2.3" 16 MP sensors, distortion <1%, IP67. At a glance: focal length 3.3 mm; format 1/2.3"; resolution 16 Megapixel; aperture F2.8 Fixed Iris; mount M12.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-MBL-0159
IRIR
Format1/2.3"
Angle of view (1/2.3")99.5 x 85 x 70 deg
Angle of view (1/2.5")94.5 x 85 x 56 deg
WaterproofIP67

Optics

Image circleMax dia. 8.0
Focal length3.3 mm
ApertureF2.8 Fixed Iris
M.O.D.0.1 m
Total track length (TTL)24 mm
Distortion<1%

Sensor and imaging

Resolution16 Megapixel

Mechanical

Sizedia. 18.8 x 20.67 mm
MountM12
Weight20 g
Shipping weight (estimated)0.13 kg
