8 mm, 1/1.7", 12 MP, M12-mount Low-Distortion M12 Lens (LS-MBL-0138)
  • 8 mm, 1/1.7", 12 MP, M12-mount Low-Distortion M12 Lens (LS-MBL-0138)

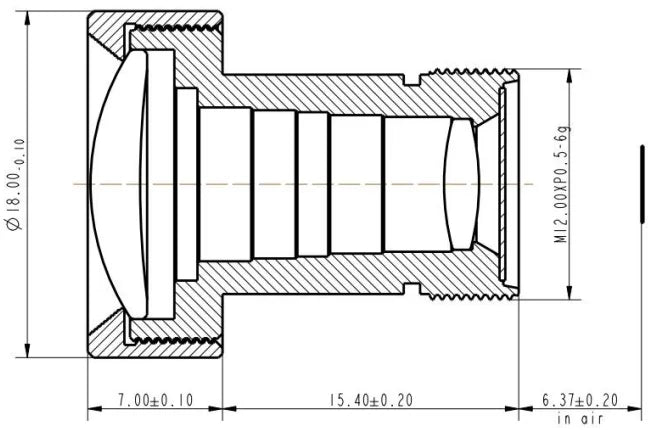

  • LS-MBL-0138 dimensions (mm)

M12 board lenses

8 mm, 1/1.7", 12 MP, M12-mount Low-Distortion M12 Lens (LS-MBL-0138)

Model LS-MBL-0138

  • Focal length8mm
  • MountM12
  • Sensor1/1.7"
  • ApertureF5.6 Fixed iris
  • Resolution12 Megapixel / Pixel size 1.85μm
$109.00

Ships in 2-3 weeks

0.11 kg shipping weight

Volume pricing, Net 30 terms or a formal quote for purchasing?

Request a quote

8 mm, 1/1.7", 12 MP, M12-mount Low-Distortion M12 Lens (LS-MBL-0138)LS-MBL-0138

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

8 mm, 1/1.7", 12 MP, M12-mount Low-Distortion M12 Lens. 8 mm F5.6 M12 (S-mount) low-distortion lens for 1/1.7" 12 megapixel sensors (1.85 µm pixels), small size for video conferencing, recognition, scanners and machine vision. At a glance: focal length 8mm; format 1/1.7" dia. 9.5; resolution 12 Megapixel / Pixel size 1.85μm; aperture F5.6 Fixed iris; mount M12 x P0.5.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-MBL-0138
Format1/1.7" dia. 9.5
Angle of view (1/1.7")63 x 49 x 38
CRA18°
IR correctionIR
Notes420~900nm T>85%; 10G
C.R.A.18°
IRIR

Optics

Focal length8mm
ApertureF5.6 Fixed iris
M.O.D.50mm
Relative illumination74.5%
Back focal length (optical)7.8mm
Distortion (TV)-0.37%
Back focal length7.8 mm
Distortion TV (200 mm WD)-0.37%

Sensor and imaging

Resolution12 Megapixel / Pixel size 1.85μm

Mechanical

MountM12 x P0.5
Sizedia. 14 x 18.94mm
Weight10g
Shipping weight (estimated)0.11 kg
