M12 board lenses
2.8 mm, 1/2.5", 8 MP, M12-mount Low-Distortion M12 Lens (LS-MBL-0149)
Model LS-MBL-0149
- Focal length2.8 mm
- MountM12
- Sensor1/2.5"
- ApertureF2.5 Fixed iris
- Resolution8 Megapixel
$109.00
Ships in 2-3 weeks
0.12 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
2.8 mm, 1/2.5", 8 MP, M12-mount Low-Distortion M12 Lens. High resolution: 8 megapixel covering all 8MP 4K. Large format: 1/2.5". Low distortion: <3.2% low distortion. At a glance: focal length 2.8 mm; format 1/2.5"; resolution 8 Megapixel; aperture F2.5 Fixed iris; mount M12 x 0.5.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-MBL-0149 |
|---|---|
| Format | 1/2.5" |
| Angle of view (1/2.5", DxHxV) | 112 x 100 x 80 deg |
| CRA | <19 |
| Notes | 5G2P |
Optics
| Focal length | 2.8 mm |
|---|---|
| Back focal length | 4.7 mm |
| Aperture | F2.5 Fixed iris |
| Relative illumination | >60% |
| Distortion | <3.2% |
| M.O.D. | 0.1 m |
Sensor and imaging
| Resolution | 8 Megapixel |
|---|
Mechanical

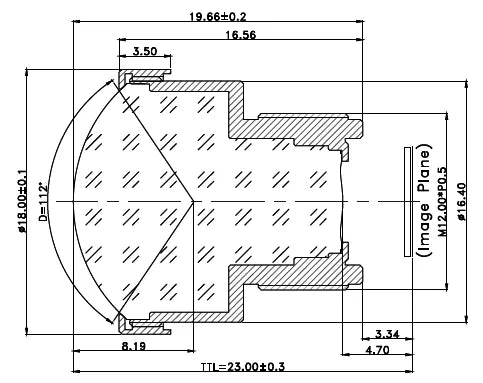

| Size | dia. 18 x 19.6 mm |
|---|---|
| Optical total length | 23 mm |
| Mount | M12 x 0.5 |
| Weight | 12 g |
| Shipping weight (estimated) | 0.12 kg |
