Home / Lenses / Telecentric lenses / Telecentric lens series, 35mm Full Frame
0.38× telecentric lens, 35mm Full Frame, M58-mount, weight 2592 Grams (LS-TCL-0207)

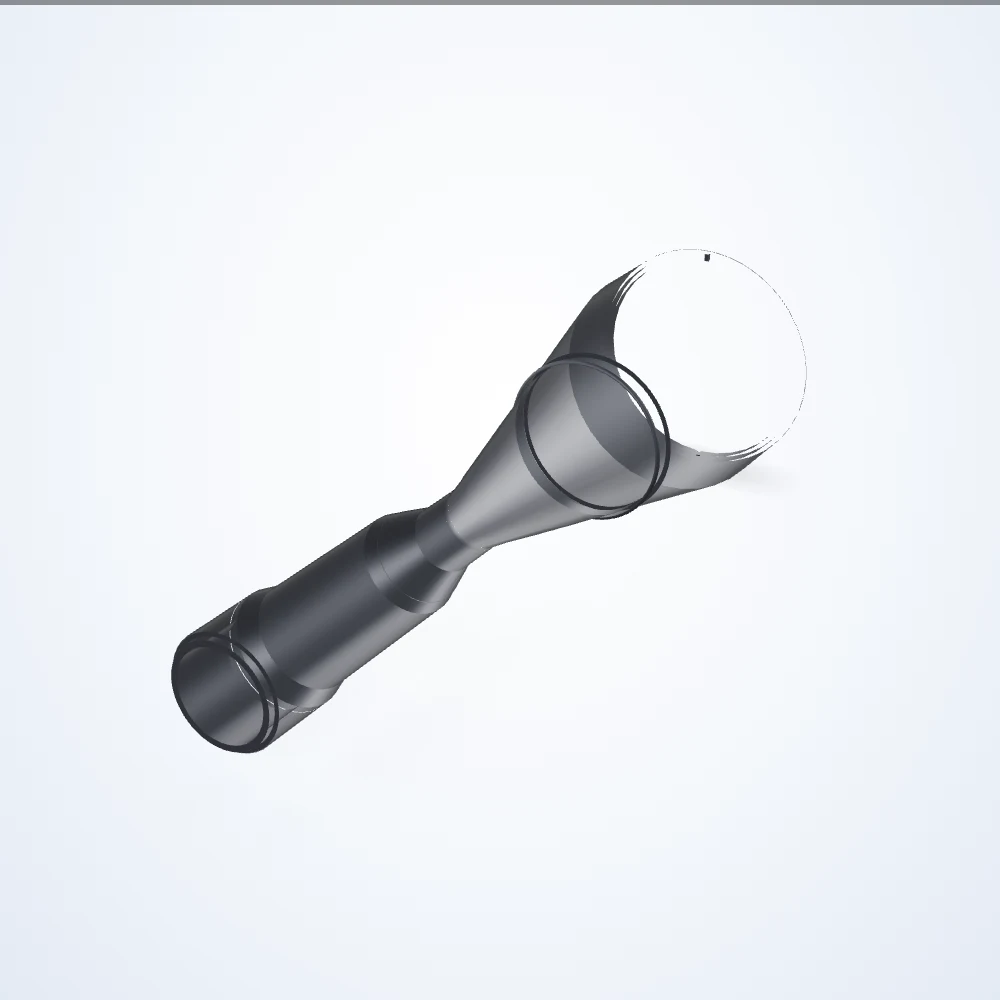

Rendered illustration: the actual product may differ in appearance.

Telecentric lenses

0.38× telecentric lens, 35mm Full Frame, M58-mount, weight 2592 Grams (LS-TCL-0207)

Model LS-TCL-0207

Telecentric lens with constant magnification across the depth of field, for measurement and gauging without perspective error. Working distance 262.3 mm; depth of field 9.1 mm.

Price on request
Lead time confirmed with your quote

Build a system with this lens → Matching lens, light, controller and cables, checked for fit

  • Secure checkout by ShopifyCard, PayPal, Venmo, Shop Pay or Google Pay
  • 90-day returnsUnused items; free return label in the US · Returns policy
  • Tracked UPS or DHL shippingExact cost shown at checkout · Shipping policy
  • Questions about fit?Contact us; we reply within one business day
Datasheet (PDF) - LS-TCL-02073D model (STEP) - LS-TCL-0207

Specifications

ModelLS-TCL-0207
Magnification0.38×
Working distance262.3 mm
Sensor format35mm Full Frame
MountM58-mount
Depth of field9.1 mm
Aps-c IMX34258.84 x 44.13 mm
CHR70M81.58 x 57.87 mm
CMV5000095.87 x 72.68 mm
Dimensions approximate489.1 x 143 x 143 mm
Distortion maximum (%)< 0.15
Distortion typical (%)< 0.07
Filter threadNo Filter Threads
Fov @ full frame94.74 x 63.16 mm
Front diameter143 mm
Image circle43.3 mm
Lens typeTelecentric
Line 8k-5µm107.37 mm
Operating temperature range0 to 40°C
Resolution (pixel size)27 μm
Storage temperature range0 to 50°C
Telecentricity maximum0.08°
Telecentricity typical< 0.06°
Working ƒ/nf/16
Weight2592 Grams
Complete the station

The configurator matches a camera, lens, light, light controller and cables to each other, and to this part.

Configure a system Selection guide

Other sizes in the Telecentric lens series, 35mm Full Frame series

ModelSizePriceAvailabilityLink
LS-TCL-01950.75× Price on request 3 in stockView
LS-TCL-01960.641× Price on request 4 in stockView
LS-TCL-01970.641× Price on request 4 in stockView
LS-TCL-01980.641× Price on request 3 in stockView
LS-TCL-01990.561× Price on request 5 in stockView
LS-TCL-02000.561× Price on request 5 in stockView
LS-TCL-02010.561× Price on request 3 in stockView
LS-TCL-02020.463× Price on request 5 in stockView
LS-TCL-02030.463× Price on request 3 in stockView
LS-TCL-02040.463× Price on request 5 in stockView
LS-TCL-02050.38× Price on request 4 in stockView
LS-TCL-02060.38× Price on request 5 in stockView
LS-TCL-02080.289× Price on request 3 in stockView
LS-TCL-02090.289× Price on request 2 in stockView
LS-TCL-02100.289× Price on request 2 in stockView
LS-TCL-02110.245× Price on request 3 in stockView
LS-TCL-02120.245× Price on request 3 in stockView
LS-TCL-02130.245× Price on request 2 in stockView
LS-TCL-02140.187× Price on request 3 in stockView
LS-TCL-02150.187× Price on request 2 in stockView
LS-TCL-02160.187× Price on request 3 in stockView
LS-TCL-02170.15× Price on request 3 in stockView
LS-TCL-02180.15× Price on request 4 in stockView
LS-TCL-02190.15× Price on request 2 in stockView

See all 38 models in the Telecentric lens series, 35mm Full Frame series
