Home / Lenses / Telecentric lenses / 0.75× telecentric lens, 35mm Full Frame, M58-Mount

0.75× telecentric lens, 35mm Full Frame, M58-Mount (LS-TCL-0195)

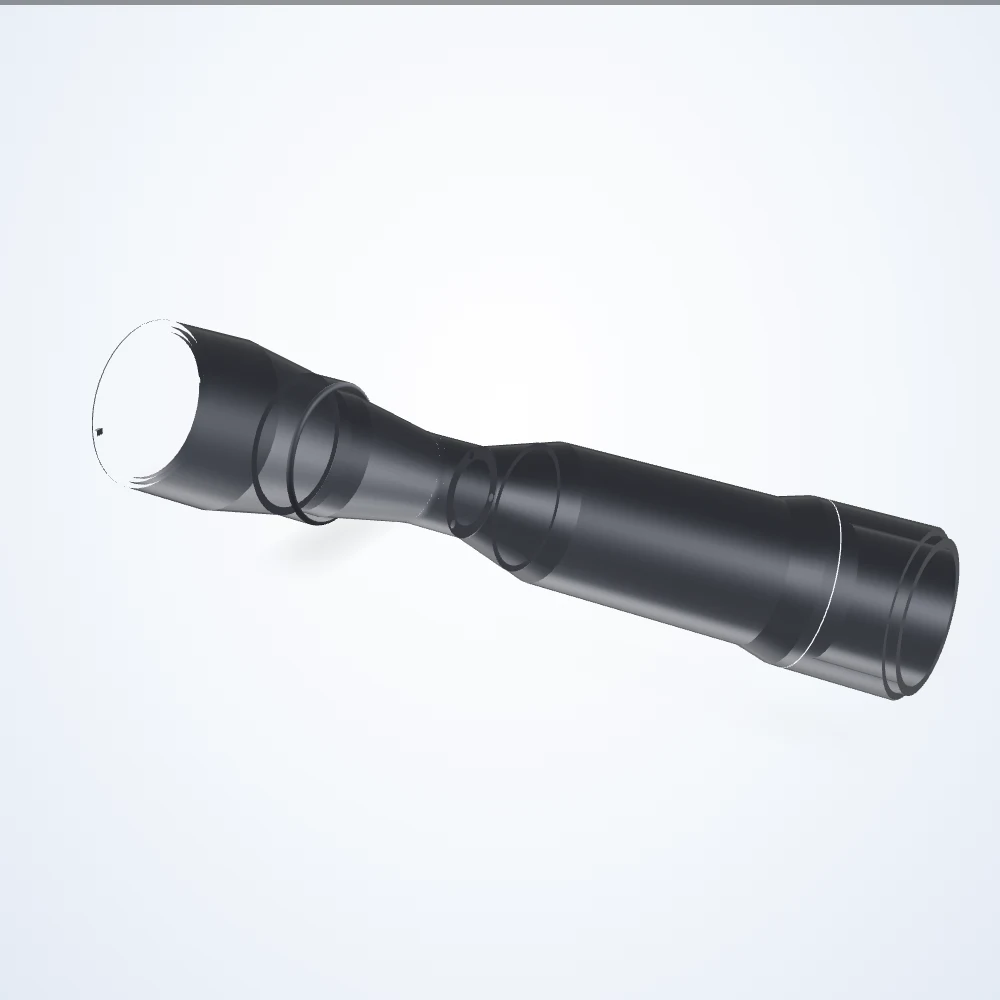

Rendered illustration: the actual product may differ in appearance.

Telecentric lenses

0.75× telecentric lens, 35mm Full Frame, M58-Mount (LS-TCL-0195)

Model LS-TCL-0195

0.75× telecentric lens, 35mm Full Frame, M58-Mount. Working distance 125.6 mm. Depth of field 2.3 mm.

3D model (STEP) - LS-TCL-0195

Specifications

Model	LS-TCL-0195
APS-C IMX342	29.81 x 22.36 mm
CHR70M	41.33 x 29.32 mm
CMV50000	48.58 x 36.82 mm
Depth Of Field	2.3 mm
Distortion Maximum (%)	< 0.1
Distortion Typical (%)	< 0.05
Filter Thread	No Filter Threads
FoV @ Full Frame	48 x 32 mm
Front Diameter	75 mm
Image Circle Diameter	43.3 mm
Imager Format	35mm Full Frame
Lens Type	Telecentric
Line 8k-5µm	54.4 mm
Magnification	0.75×
Mount	M58-Mount
Resolution (Pixel Size)	14 μm
Telecentricity Maximum	0.10°
Telecentricity Typical	< 0.06°
Working Distance	125.6 mm
Working ƒ/N	f/16
