Home / Lenses / Telecentric lenses / 0.463× telecentric lens, 35mm Full Frame, F-Mount

0.463× telecentric lens, 35mm Full Frame, F-Mount (LS-TCL-0202)

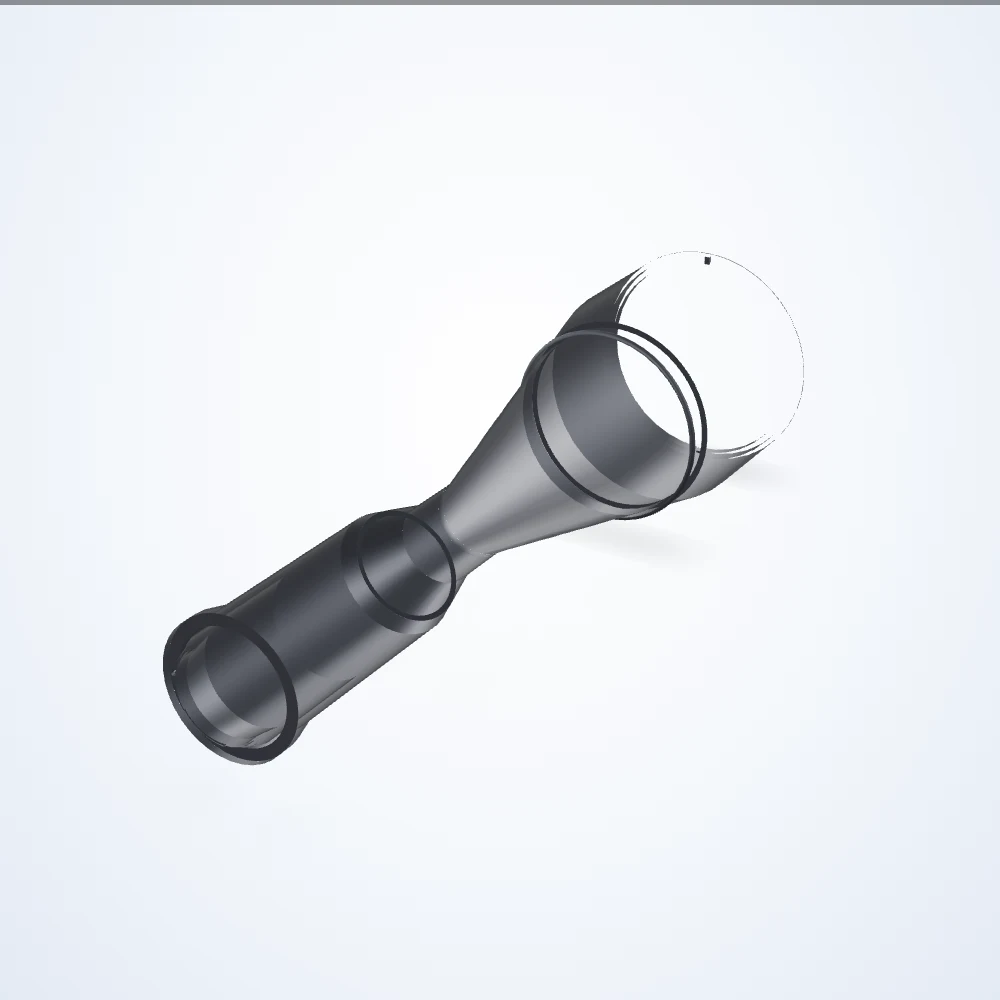

Rendered illustration: the actual product may differ in appearance.

Telecentric lenses

0.463× telecentric lens, 35mm Full Frame, F-Mount (LS-TCL-0202)

Model LS-TCL-0202

0.463× telecentric lens, 35mm Full Frame, F-Mount. Working distance 197.3 mm. Depth of field 6.2 mm.

Datasheet (PDF) - LS-TCL-0202 3D model (STEP) - LS-TCL-0202

Specifications

Model	LS-TCL-0202
APS-C IMX342	48.29 x 36.22 mm
CHR70M	66.95 x 47.5 mm
CMV50000	78.69 x 59.65 mm
Depth Of Field	6.2 mm
Distortion Maximum (%)	< 0.2
Distortion Typical (%)	< 0.09
Filter Thread	No Filter Threads
FoV @ Full Frame	77.75 x 51.84 mm
Front Diameter	116 mm
Image Circle Diameter	43.3 mm
Imager Format	35mm Full Frame
Lens Type	Telecentric
Line 8k-5µm	88.12 mm
Magnification	0.463×
Mount	F-Mount
Resolution (Pixel Size)	22 μm
Telecentricity Maximum	0.08°
Telecentricity Typical	< 0.03°
Working Distance	197.3 mm
Working ƒ/N	f/16
