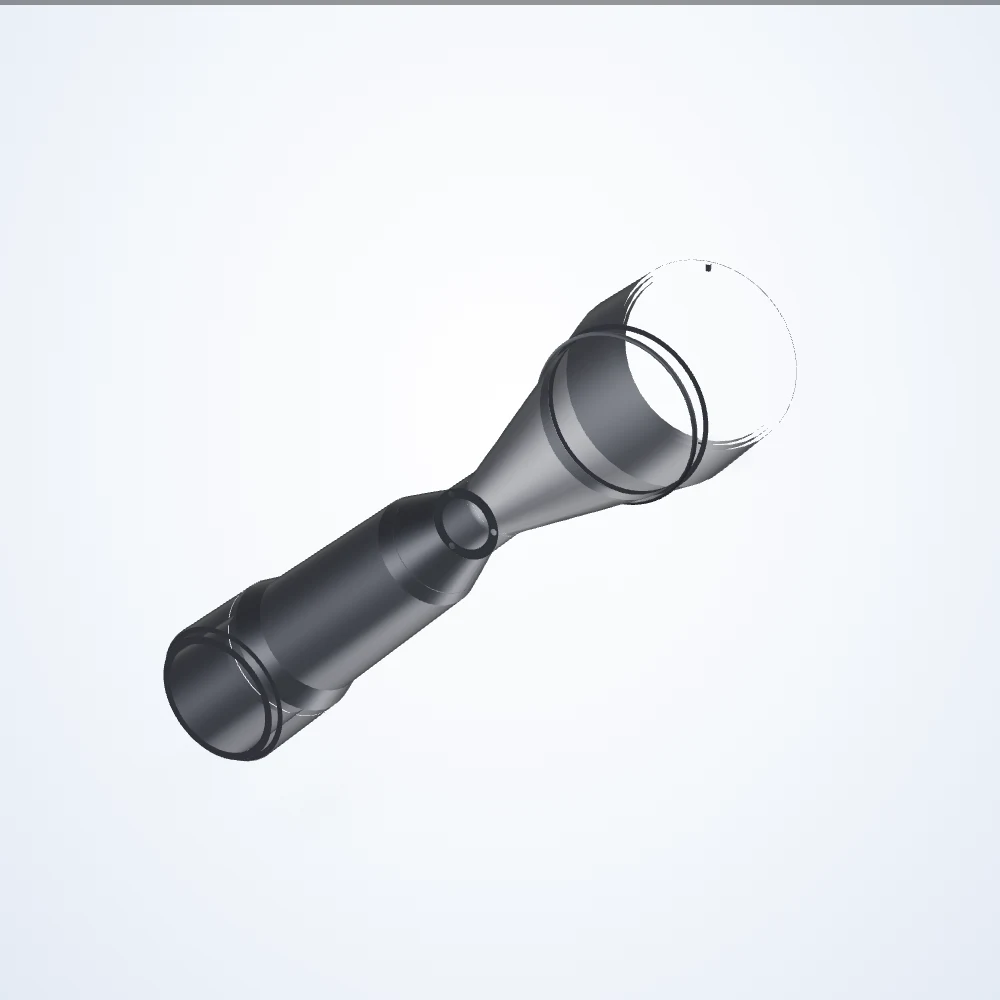

Rendered illustration: the actual product may differ in appearance.
Telecentric lenses
0.463× telecentric lens, 35mm Full Frame, M58-mount (LS-TCL-0204)
Model LS-TCL-0204
Telecentric lens with constant magnification across the depth of field, for measurement and gauging without perspective error. Working distance 197.3 mm; depth of field 6.2 mm.
Specifications
| Model | LS-TCL-0204 |
|---|---|
| Magnification | 0.463× |
| Working distance | 197.3 mm |
| Sensor format | 35mm Full Frame |
| Mount | M58-Mount |
| Depth of field | 6.2 mm |
| Aps-c IMX342 | 48.29 x 36.22 mm |
| CHR70M | 66.95 x 47.5 mm |
| CMV50000 | 78.69 x 59.65 mm |
| Dimensions approximate | 446.4 x 116 x 116 mm |
| Distortion maximum (%) | < 0.2 |
| Distortion typical (%) | < 0.09 |
| Filter thread | No Filter Threads |
| Fov @ full frame | 77.75 x 51.84 mm |
| Front diameter | 116 mm |
| Image circle | 43.3 mm |
| Lens type | Telecentric |
| Line 8k-5µm | 88.12 mm |
| Operating temperature range | 0 to 40°C |
| Resolution (pixel size) | 22 μm |
| Storage temperature range | 0 to 50°C |
| Telecentricity maximum | 0.08° |
| Telecentricity typical | < 0.03° |
| Working ƒ/n | f/16 |
| Weight | 1779 Grams |
