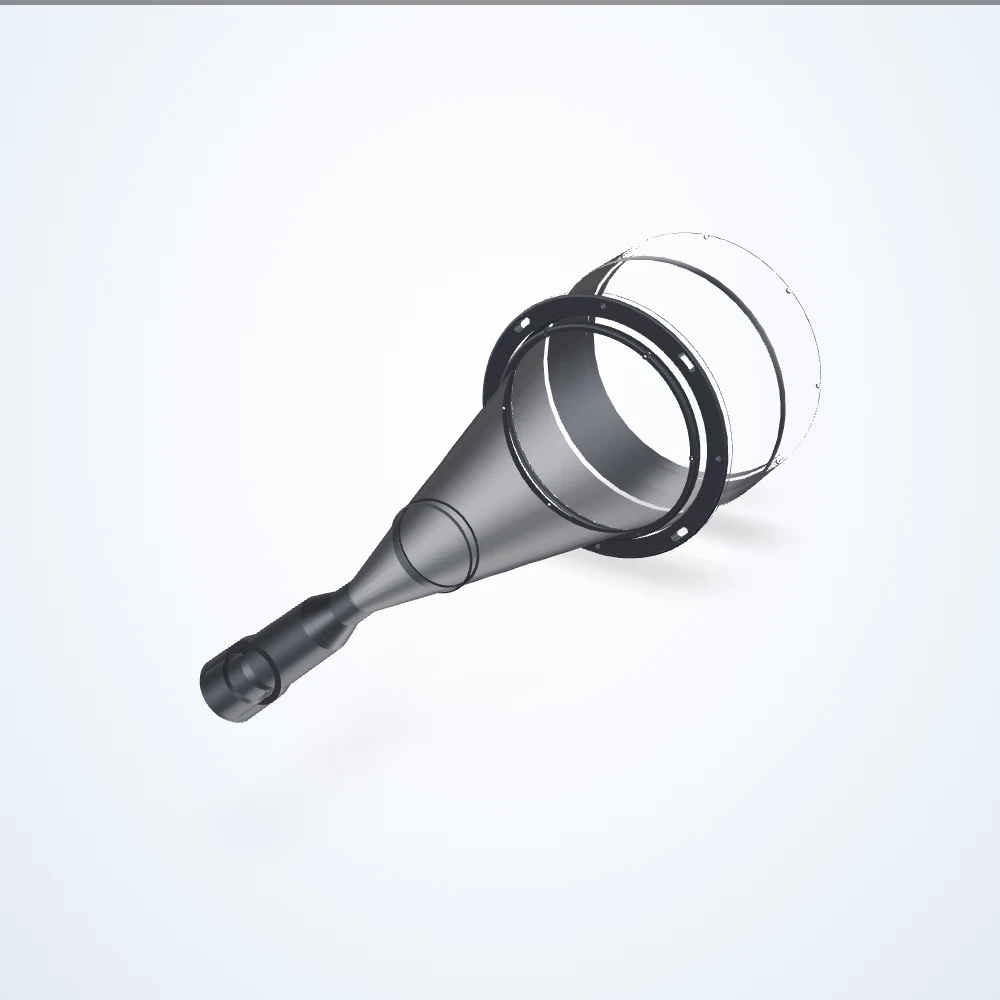

Rendered illustration: the actual product may differ in appearance.
Telecentric lenses
0.15× telecentric lens, 35mm Full Frame, M58-mount (LS-TCL-0218)
Model LS-TCL-0218
Telecentric lens with constant magnification across the depth of field, for measurement and gauging without perspective error. Working distance 542.8 mm; depth of field 58.7 mm.
Specifications
| Model | LS-TCL-0218 |
|---|---|
| Magnification | 0.15× |
| Working distance | 542.8 mm |
| Sensor format | 35mm Full Frame |
| Mount | M58-Mount |
| Depth of field | 58.7 mm |
| Aps-c IMX342 | 149.07 x 111.8 mm |
| CHR70M | 206.67 x 146.61 mm |
| CMV50000 | 242.88 x 184.12 mm |
| Dimensions approximate | 932.3 x 322 x 322 mm |
| Distortion maximum (%) | < 0.15 |
| Distortion typical (%) | < 0.08 |
| Filter thread | No Filter Threads |
| Fov @ full frame | 240 x 160 mm |
| Front diameter | 322 mm |
| Image circle | 43.3 mm |
| Lens type | Telecentric |
| Line 8k-5µm | 272 mm |
| Operating temperature range | 0 to 40°C |
| Resolution (pixel size) | 68 μm |
| Storage temperature range | 0 to 50°C |
| Telecentricity maximum | 0.08° |
| Telecentricity typical | < 0.06° |
| Working ƒ/n | f/16 |
| Weight | 18910 Grams |
