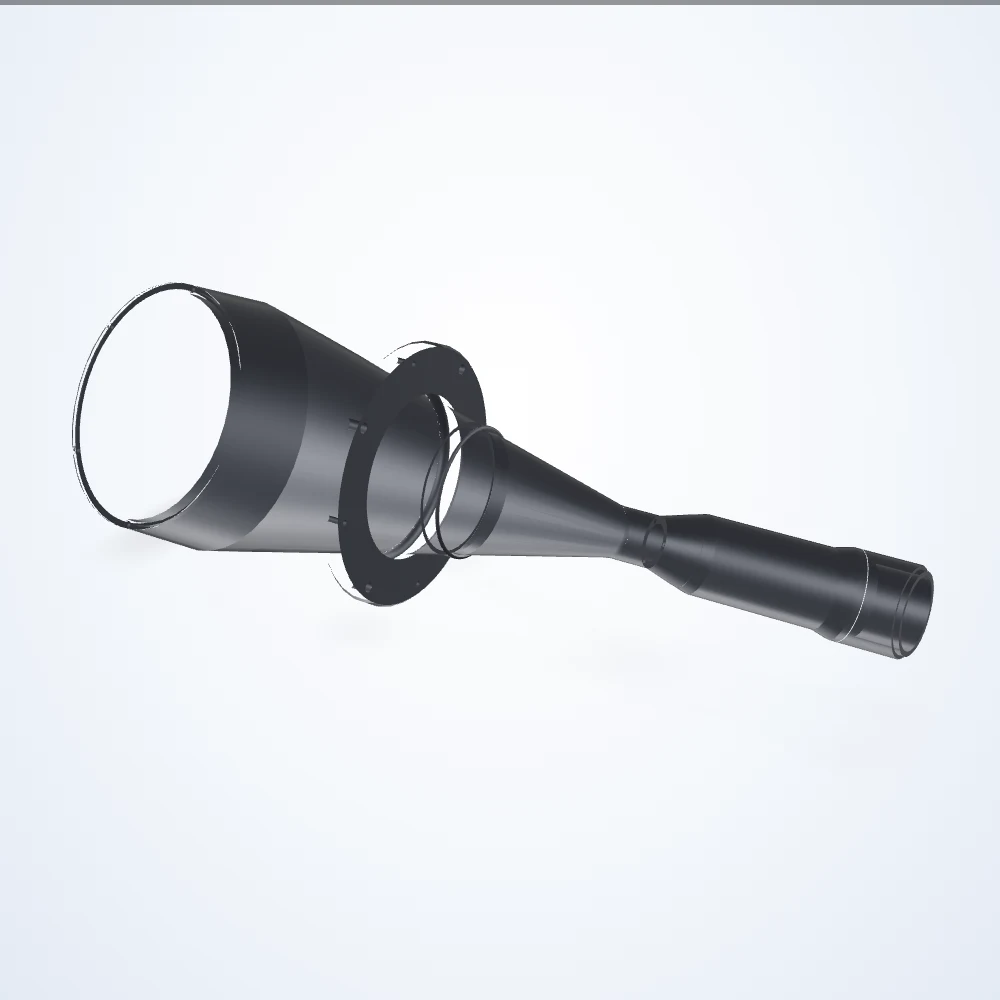

Rendered illustration: the actual product may differ in appearance.
Telecentric lenses
0.245× telecentric lens, 35mm Full Frame, M58-mount (LS-TCL-0213)
Model LS-TCL-0213
Telecentric lens with constant magnification across the depth of field, for measurement and gauging without perspective error. Working distance 397.4 mm; depth of field 22 mm.
Specifications
| Model | LS-TCL-0213 |
|---|---|
| Magnification | 0.245× |
| Working distance | 397.4 mm |
| Sensor format | 35mm Full Frame |
| Mount | M58-Mount |
| Depth of field | 22 mm |
| Aps-c IMX342 | 91.27 x 68.45 mm |
| CHR70M | 126.53 x 89.76 mm |
| CMV50000 | 148.70 x 112.73 mm |
| Dimensions approximate | 637.7 x 200 x 200 mm |
| Distortion maximum (%) | < 0.2 |
| Distortion typical (%) | < 0.08 |
| Filter thread | No Filter Threads |
| Fov @ full frame | 146.94 x 97.96 mm |
| Front diameter | 200 mm |
| Image circle | 43.3 mm |
| Lens type | Telecentric |
| Line 8k-5µm | 166.53 mm |
| Operating temperature range | 0 to 40°C |
| Resolution (pixel size) | 41 μm |
| Storage temperature range | 0 to 50°C |
| Telecentricity maximum | 0.08° |
| Telecentricity typical | < 0.05° |
| Working ƒ/n | f/16 |
| Weight | 6185 Grams |
