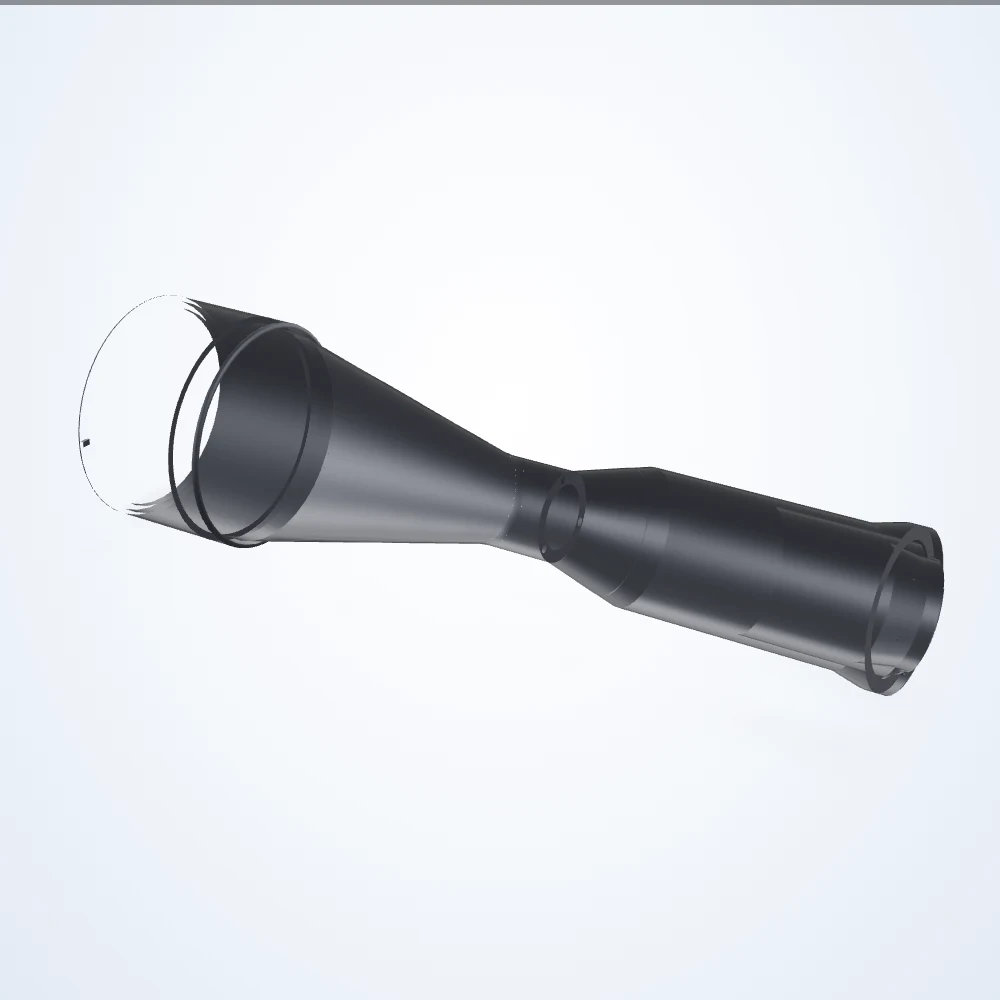

Rendered illustration: the actual product may differ in appearance.
Telecentric lenses
0.561× telecentric lens, 35mm Full Frame, F-mount (LS-TCL-0199)
Model LS-TCL-0199
Telecentric lens with constant magnification across the depth of field, for measurement and gauging without perspective error. Working distance 170.6 mm; depth of field 4.2 mm.
Specifications
| Model | LS-TCL-0199 |
|---|---|
| Magnification | 0.561× |
| Working distance | 170.6 mm |
| Sensor format | 35mm Full Frame |
| Mount | F-Mount |
| Depth of field | 4.2 mm |
| Aps-c IMX342 | 39.86 x 29.89 mm |
| CHR70M | 55.26 x 39.2 mm |
| CMV50000 | 64.94 x 49.23 mm |
| Dimensions approximate | 359.6 x 100 x 100 mm |
| Distortion maximum (%) | < 0.15 |
| Distortion typical (%) | < 0.06 |
| Filter thread | No Filter Threads |
| Fov @ full frame | 64.17 x 42.78 mm |
| Front diameter | 100 mm |
| Image circle | 43.3 mm |
| Lens type | Telecentric |
| Line 8k-5µm | 72.73 mm |
| Operating temperature range | 0 to 40°C |
| Resolution (pixel size) | 18 μm |
| Storage temperature range | 0 to 50°C |
| Telecentricity maximum | 0.08° |
| Telecentricity typical | < 0.04° |
| Working ƒ/n | f/16 |
| Weight | 1294 Grams |
