Home / Lenses / Telecentric lenses / 0.245× telecentric lens, 35mm Full Frame, F-Mount

0.245× telecentric lens, 35mm Full Frame, F-Mount (LS-TCL-0211)

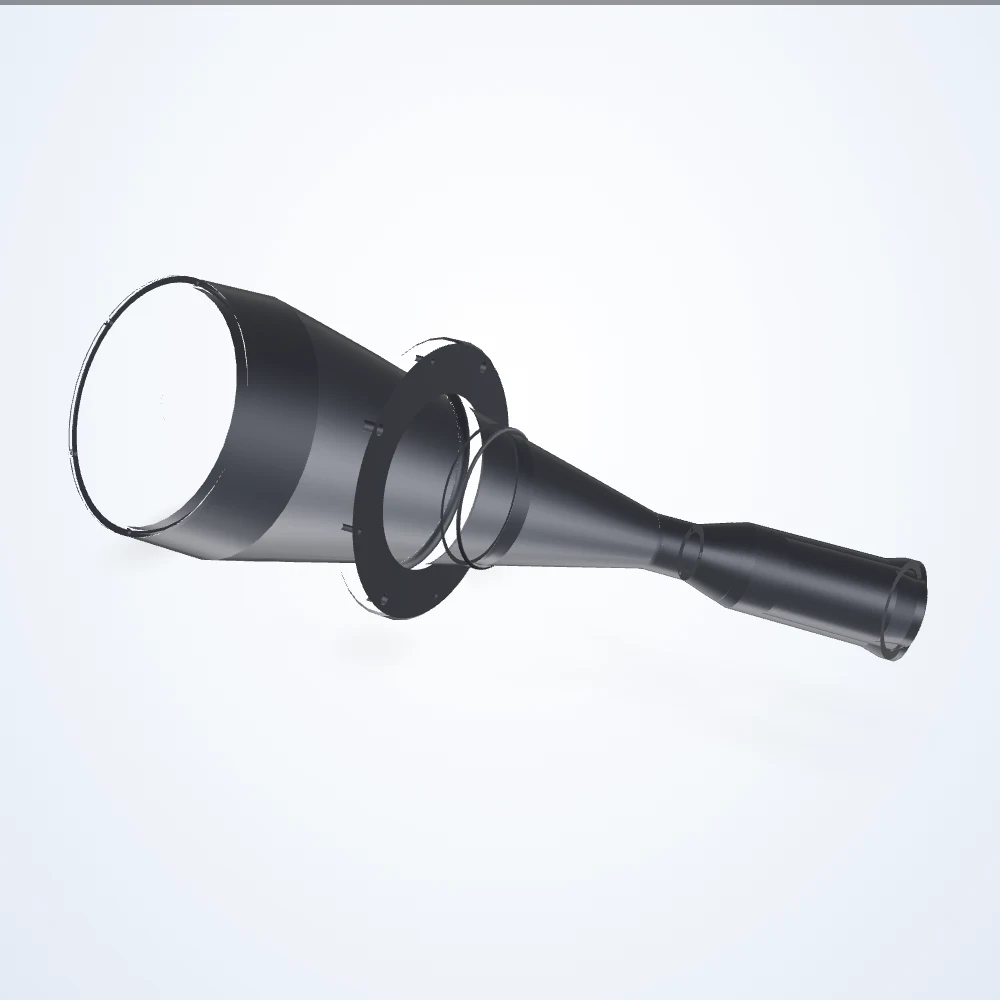

Rendered illustration: the actual product may differ in appearance.

Telecentric lenses

0.245× telecentric lens, 35mm Full Frame, F-Mount (LS-TCL-0211)

Model LS-TCL-0211

0.245× telecentric lens, 35mm Full Frame, F-Mount. Working distance 397.4 mm. Depth of field 22 mm.

Datasheet (PDF) - LS-TCL-0211 3D model (STEP) - LS-TCL-0211

Specifications

Model	LS-TCL-0211
APS-C IMX342	91.27 x 68.45 mm
CHR70M	126.53 x 89.76 mm
CMV50000	148.70 x 112.73 mm
Depth Of Field	22 mm
Distortion Maximum (%)	< 0.2
Distortion Typical (%)	< 0.08
Filter Thread	No Filter Threads
FoV @ Full Frame	146.94 x 97.96 mm
Front Diameter	200 mm
Image Circle Diameter	43.3 mm
Imager Format	35mm Full Frame
Lens Type	Telecentric
Line 8k-5µm	166.53 mm
Magnification	0.245×
Mount	F-Mount
Resolution (Pixel Size)	41 μm
Telecentricity Maximum	0.08°
Telecentricity Typical	< 0.05°
Working Distance	397.4 mm
Working ƒ/N	f/16
