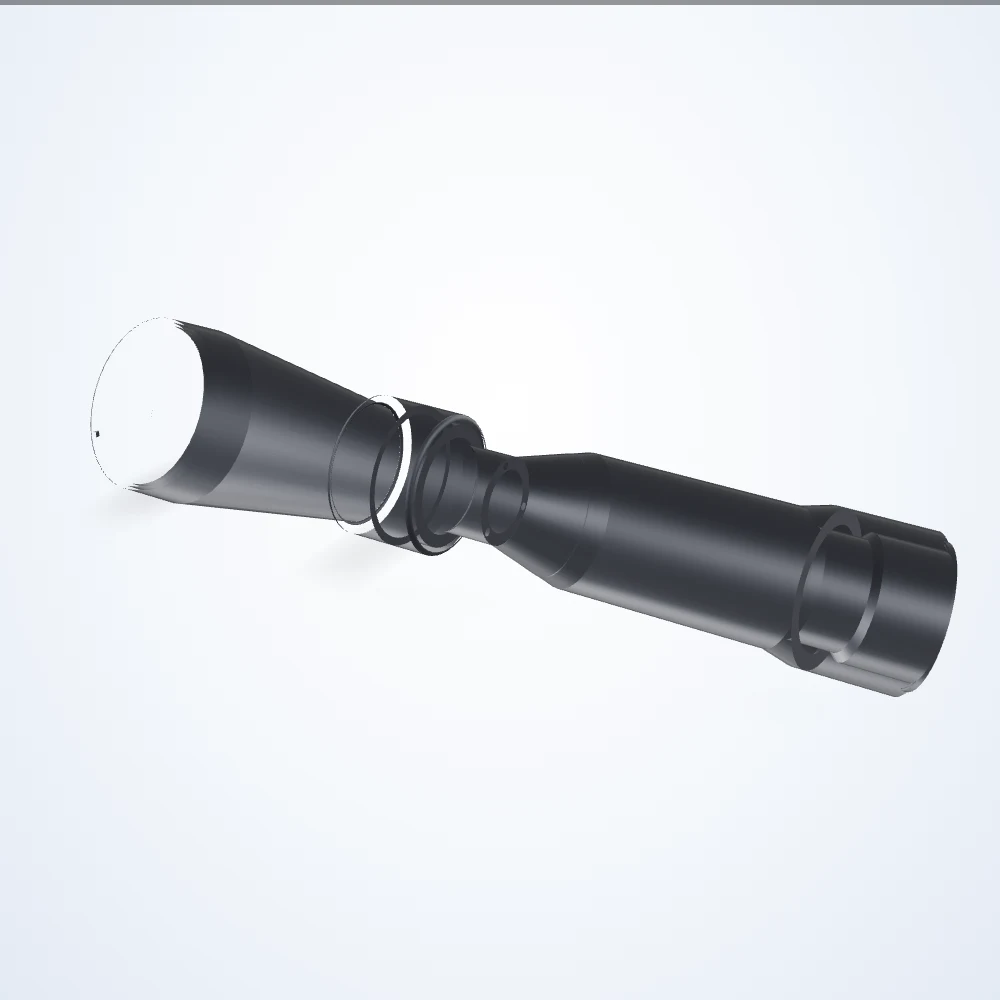

Rendered illustration: the actual product may differ in appearance.
Telecentric lenses
0.641× telecentric lens, 35mm Full Frame, M58-mount (LS-TCL-0197)
Model LS-TCL-0197
Telecentric lens with constant magnification across the depth of field, for measurement and gauging without perspective error. Working distance 148.6 mm; depth of field 3.2 mm.
Specifications
| Model | LS-TCL-0197 |
|---|---|
| Magnification | 0.641× |
| Working distance | 148.6 mm |
| Sensor format | 35mm Full Frame |
| Mount | M58-Mount |
| Depth of field | 3.2 mm |
| Aps-c IMX342 | 34.88 x 26.16 mm |
| CHR70M | 48.36 x 34.31 mm |
| CMV50000 | 56.84 x 43.09 mm |
| Dimensions approximate | 372.1 x 80 x 80 mm |
| Distortion maximum (%) | < 0.1 |
| Distortion typical (%) | < 0.04 |
| Filter thread | No Filter Threads |
| Fov @ full frame | 56.16 x 37.44 mm |
| Front diameter | 80 mm |
| Image circle | 43.3 mm |
| Lens type | Telecentric |
| Line 8k-5µm | 63.65 mm |
| Operating temperature range | 0 to 40°C |
| Resolution (pixel size) | 16 μm |
| Storage temperature range | 0 to 50°C |
| Telecentricity maximum | 0.08° |
| Telecentricity typical | < 0.04° |
| Working ƒ/n | f/16 |
| Weight | 1510 Grams |
