0.289× telecentric lens, 35mm Full Frame, F-Mount (LS-TCL-0208)

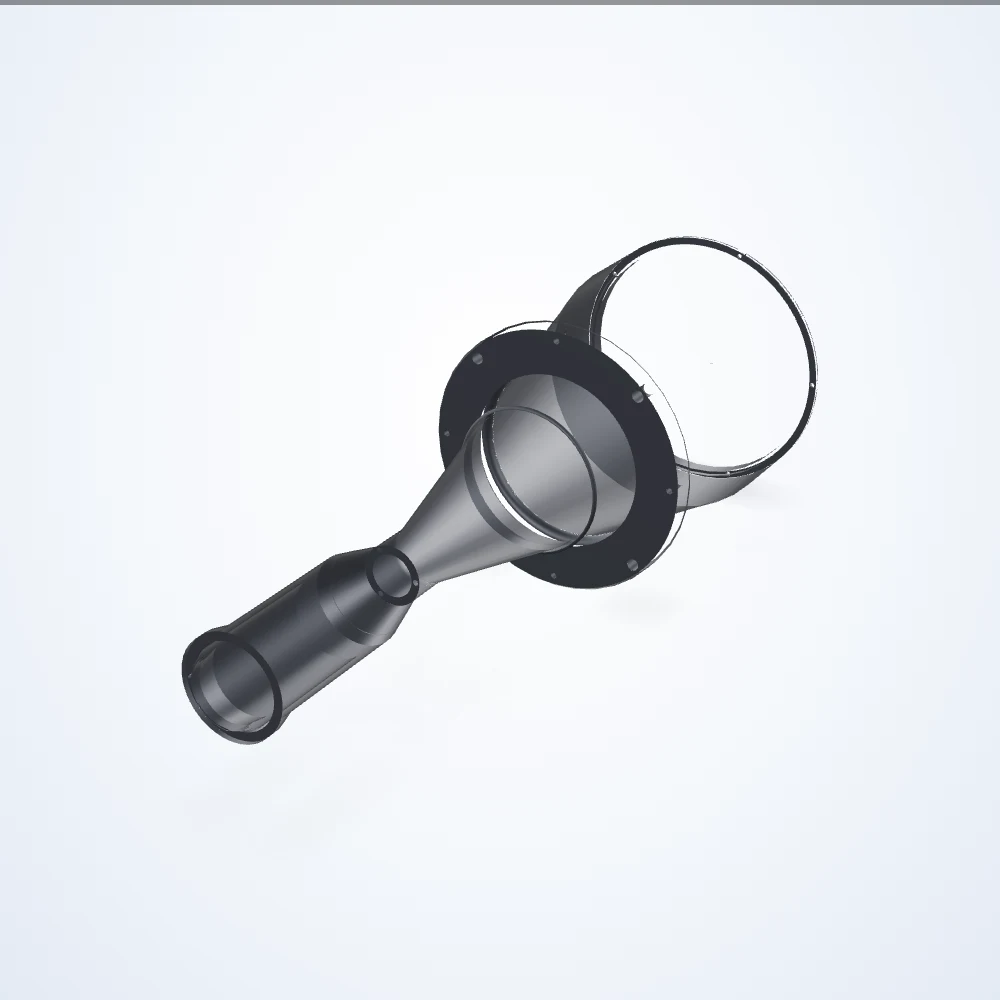

Rendered illustration: the actual product may differ in appearance.

Telecentric lenses

0.289× telecentric lens, 35mm Full Frame, F-Mount (LS-TCL-0208)

Model LS-TCL-0208

0.289× telecentric lens, 35mm Full Frame, F-Mount. Working distance 331.6 mm. Depth of field 15.8 mm.

Datasheet (PDF) - LS-TCL-0208 3D model (STEP) - LS-TCL-0208

Specifications

Model	LS-TCL-0208
APS-C IMX342	77.37 x 58.03 mm
CHR70M	107.27 x 76.09 mm
CMV50000	126.06 x 95.56 mm
Depth Of Field	15.8 mm
Distortion Maximum (%)	< 0.1
Distortion Typical (%)	< 0.05
Filter Thread	No Filter Threads
FoV @ Full Frame	124.57 x 83.04 mm
Front Diameter	180 mm
Image Circle Diameter	43.3 mm
Imager Format	35mm Full Frame
Lens Type	Telecentric
Line 8k-5µm	141.18 mm
Magnification	0.289×
Mount	F-Mount
Resolution (Pixel Size)	35 μm
Telecentricity Maximum	0.08°
Telecentricity Typical	< 0.05°
Working Distance	331.6 mm
Working ƒ/N	f/16
