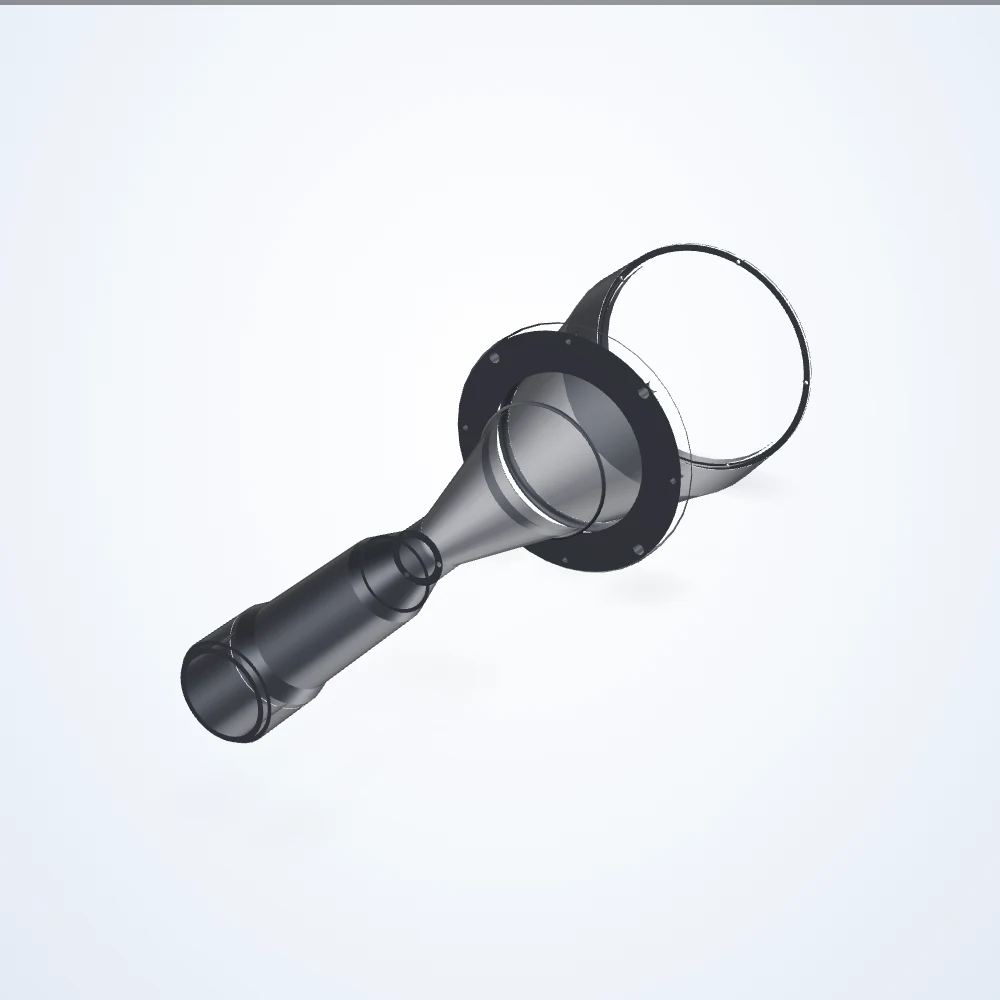

Rendered illustration: the actual product may differ in appearance.
Telecentric lenses
0.289× telecentric lens, 35mm Full Frame, M58-mount (LS-TCL-0210)
Model LS-TCL-0210
Telecentric lens with constant magnification across the depth of field, for measurement and gauging without perspective error. Working distance 331.6 mm; depth of field 15.8 mm.
Specifications
| Model | LS-TCL-0210 |
|---|---|
| Magnification | 0.289× |
| Working distance | 331.6 mm |
| Sensor format | 35mm Full Frame |
| Mount | M58-Mount |
| Depth of field | 15.8 mm |
| Aps-c IMX342 | 77.37 x 58.03 mm |
| CHR70M | 107.27 x 76.09 mm |
| CMV50000 | 126.06 x 95.56 mm |
| Dimensions approximate | 578.1 x 180 x 180 mm |
| Distortion maximum (%) | < 0.1 |
| Distortion typical (%) | < 0.05 |
| Filter thread | No Filter Threads |
| Fov @ full frame | 124.57 x 83.04 mm |
| Front diameter | 180 mm |
| Image circle | 43.3 mm |
| Lens type | Telecentric |
| Line 8k-5µm | 141.18 mm |
| Operating temperature range | 0 to 40°C |
| Resolution (pixel size) | 35 μm |
| Storage temperature range | 0 to 50°C |
| Telecentricity maximum | 0.08° |
| Telecentricity typical | < 0.05° |
| Working ƒ/n | f/16 |
| Weight | 5050 Grams |
