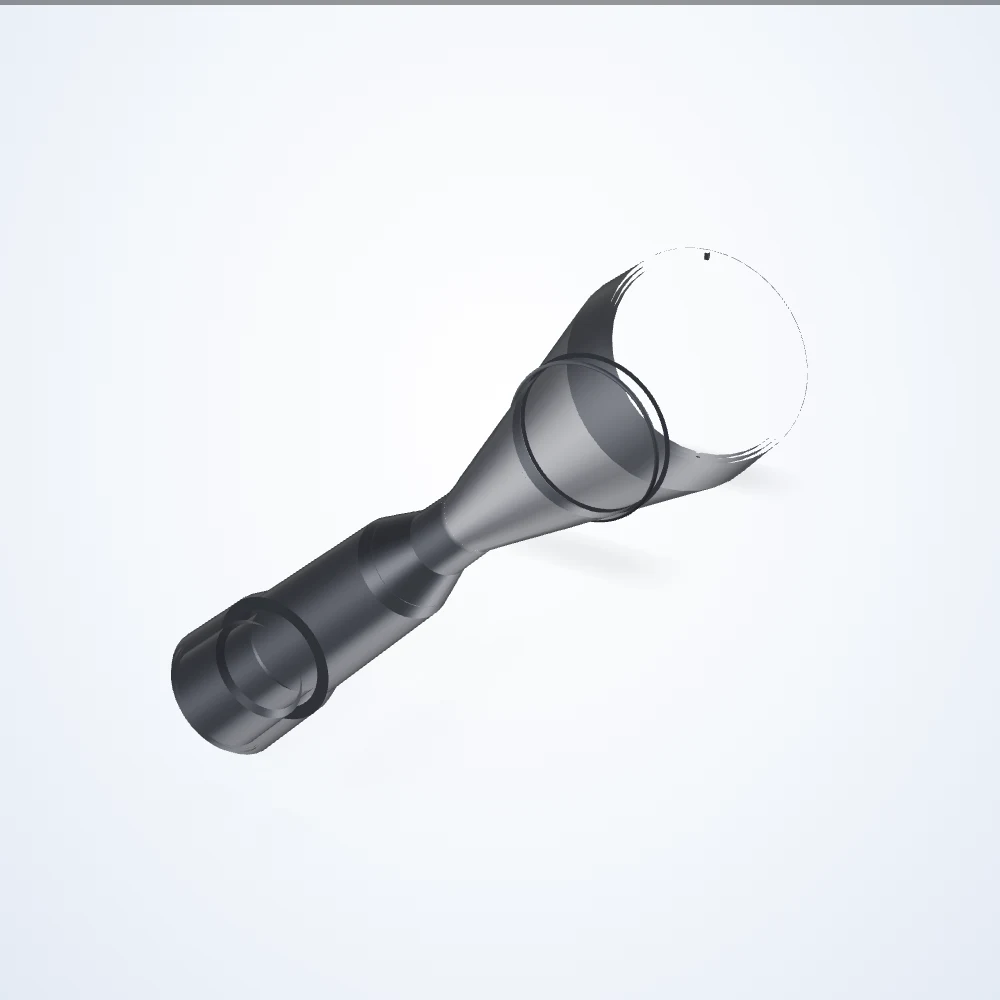

Rendered illustration: the actual product may differ in appearance.
Telecentric lenses
0.38× telecentric lens, 35mm Full Frame, M58-mount (LS-TCL-0206)
Model LS-TCL-0206
Telecentric lens with constant magnification across the depth of field, for measurement and gauging without perspective error. Working distance 262.3 mm; depth of field 9.1 mm.
Specifications
| Model | LS-TCL-0206 |
|---|---|
| Magnification | 0.38× |
| Working distance | 262.3 mm |
| Sensor format | 35mm Full Frame |
| Mount | M58-Mount |
| Depth of field | 9.1 mm |
| Aps-c IMX342 | 58.84 x 44.13 mm |
| CHR70M | 81.58 x 57.87 mm |
| CMV50000 | 95.87 x 72.68 mm |
| Dimensions approximate | 482.7 x 143 x 143 mm |
| Distortion maximum (%) | < 0.15 |
| Distortion typical (%) | < 0.07 |
| Filter thread | No Filter Threads |
| Fov @ full frame | 94.74 x 63.16 mm |
| Front diameter | 143 mm |
| Image circle | 43.3 mm |
| Lens type | Telecentric |
| Line 8k-5µm | 107.37 mm |
| Operating temperature range | 0 to 40°C |
| Resolution (pixel size) | 27 μm |
| Storage temperature range | 0 to 50°C |
| Telecentricity maximum | 0.08° |
| Telecentricity typical | < 0.06° |
| Working ƒ/n | f/16 |
| Weight | 2865 Grams |
