22 mm fixed focal length lens, 1", 5 MP, F2.0, C-mount
LS-FFL-1252
- Focal length 22 mm
- Mount C-mount
- Sensor 1"
$125.00
Ships in 3-4 weeks
Lenses
C-mount machine vision lenses
Choose the lens beyond its mountChoose a C-mount lens for an industrial camera by sensor coverage, field of view and working distance. These catalog entries are explicitly classified as C-mount; CS-mount and other lens interfaces are separate choices.
Products
16 mm fixed focal length lens, 1", 5 MP, F1.6, C-mount
LS-FFL-1250
- Focal length 16 mm
- Mount C-mount
- Sensor 1"
$125.00
Ships in 3-4 weeks

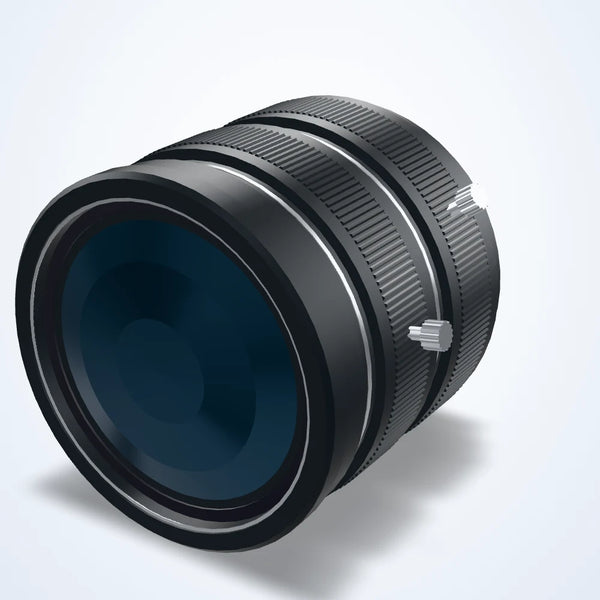

3.5 mm fisheye lens, 2/3", F1.4, C-mount
LS-FFL-1188
- Focal length 3.5 mm
- Mount C-mount
- Sensor 2/3"
$665.00
Ships in 3-4 weeks
3.3 mm fisheye lens, 1", F2.4, C-mount
LS-FFL-1187
- Focal length 3.3 mm
- Mount C-mount
- Sensor 1"
$855.00
Ships in 3-4 weeks
4.4 - 11 mm lens, 1/1.8", C-mount
LS-ZML-0022
- Focal length 4.4-11 mm
- Mount C-mount
- Sensor 1/1.8"
$339.00Quote
Lead time confirmed with your quote
15.5 - 20.4 mm lens, 2/3", C-mount
LS-ZML-0021
- Magnification 0.3X-1.0X
- Mount C-mount
- Sensor 2/3"
$489.00Quote
Lead time confirmed with your quote
13 - 130 mm lens, 1/2", C-mount
LS-ZML-0020
- Focal length 13 - 130 mm
- Magnification 10×
- Mount C-mount
$399.00Quote
Lead time confirmed with your quote
12 mm lens, 1", C-mount, SWIR
LS-FFL-0294
- Focal length 12 mm
- Mount C-mount
- Sensor 1"
$3,139.00Quote
Lead time confirmed with your quote
8 mm lens, 2/3", C-mount, 2.4-16
LS-FFL-0291
- Focal length 8 mm
- Mount C-mount
- Sensor 2/3"
$459.00Quote
Lead time confirmed with your quote
35 mm lens, 2/3", C-mount
LS-FFL-0293
- Focal length 35 mm
- Mount C-mount
- Sensor 2/3"
$329.00Quote
Lead time confirmed with your quote
25 mm lens, 2/3", C-mount, Visible, dimensions 29 x 31.5
LS-FFL-0292
- Focal length 25 mm
- Mount C-mount
- Sensor 2/3"
$329.00Quote
Lead time confirmed with your quote
16 mm lens, 1.1", C-mount, 24 MP
LS-FFL-0288
- Focal length 16 mm
- Mount C-mount
- Sensor 1.1"
$789.00Quote
Lead time confirmed with your quote
35 mm lens, 1.1", C-mount, focus range 0.2 m~inf
LS-FFL-0289
- Focal length 35 mm
- Mount C-mount
- Sensor 1.1"
$749.00Quote
Lead time confirmed with your quote
50 mm lens, 1.1", C-mount, 24 MP
LS-FFL-0290
- Focal length 50 mm
- Mount C-mount
- Sensor 1.1"
$739.00Quote
Lead time confirmed with your quote
12 mm lens, 1/1.8", C-mount, rear dia. 30.5 mm
LS-FFL-0284
- Focal length 12 mm
- Mount C-mount
- Sensor 1/1.8"
$239.00Quote
Lead time confirmed with your quote
6 mm lens, 1/1.8", C-mount, 2 MP
LS-FFL-0283
- Focal length 6 mm
- Mount C-mount
- Sensor 1/1.8"
$229.00Quote
Lead time confirmed with your quote
50 mm lens, 1/1.8", C-mount
LS-FFL-0287
- Focal length 50 mm
- Mount C-mount
- Sensor 1/1.8"
$179.00Quote
Lead time confirmed with your quote

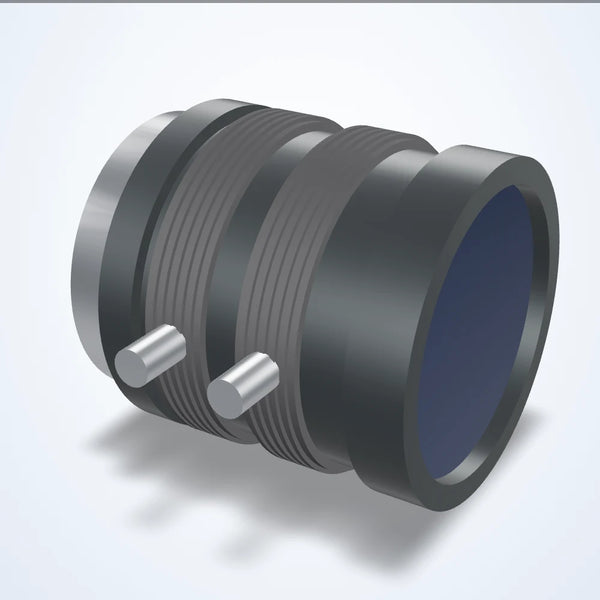

25 mm lens, 1/1.8", C-mount
LS-FFL-0286
- Focal length 25 mm
- Mount C-mount
- Sensor 1/1.8"
$179.00Quote
Lead time confirmed with your quote

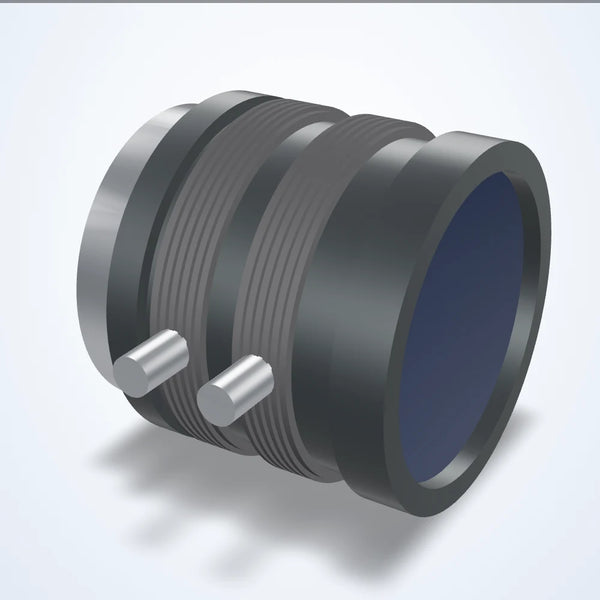

16 mm lens, 1/1.8", C-mount
LS-FFL-0285
- Focal length 16 mm
- Mount C-mount
- Sensor 1/1.8"
$169.00Quote
Lead time confirmed with your quote
6 mm lens, 1/1.7", C-mount
LS-FFL-0276
- Focal length 6 mm
- Mount C-mount
- Sensor 1/1.7"
$459.00Quote
Lead time confirmed with your quote
12 mm lens, 1/1.7", C-mount
LS-FFL-0278
- Focal length 12 mm
- Mount C-mount
- Sensor 1/1.7"
$429.00Quote
Lead time confirmed with your quote
50 mm lens, 1/1.7", C-mount
LS-FFL-0282
- Focal length 50 mm
- Mount C-mount
- Sensor 1/1.7"
$379.00Quote
Lead time confirmed with your quote
35 mm lens, 1/1.7", C-mount
LS-FFL-0281
- Focal length 35 mm
- Mount C-mount
- Sensor 1/1.7"
$379.00Quote
Lead time confirmed with your quote
25 mm lens, 1/1.7", C-mount
LS-FFL-0280
- Focal length 25 mm
- Mount C-mount
- Sensor 1/1.7"
$379.00Quote
Lead time confirmed with your quote
| Compare | |||||||||
|---|---|---|---|---|---|---|---|---|---|
 LS-FFL-125222 mm fixed focal length lens, 1", 5 MP, F2.0, C-mount
| 22 mm | C-mount | 1" | F2.0 | 5 MP | - | $125.00 | Ships in 3-4 weeks | |
 LS-FFL-125016 mm fixed focal length lens, 1", 5 MP, F1.6, C-mount
| 16 mm | C-mount | 1" | F1.6 | 5 MP | - | $125.00 | Ships in 3-4 weeks | |
 LS-FFL-11883.5 mm fisheye lens, 2/3", F1.4, C-mount
| 3.5 mm | C-mount | 2/3" | F1.4 | - | 0.1 m~ ∞ | $665.00 | Ships in 3-4 weeks | |
 LS-FFL-11873.3 mm fisheye lens, 1", F2.4, C-mount
| 3.3 mm | C-mount | 1" | F2.4 | - | 0.1 m~ ∞ | $855.00 | Ships in 3-4 weeks | |
 LS-ZML-00224.4 - 11 mm lens, 1/1.8", C-mount
| 4.4-11 mm | C-mount | 1/1.8" | F1.6-16 | - | - | $339.00Quote | Lead time confirmed with your quote | |
 LS-ZML-002115.5 - 20.4 mm lens, 2/3", C-mount
| - | C-mount | 2/3" | F4.5-F22C | 1.5 MP | 90 mm | $489.00Quote | Lead time confirmed with your quote | |
 LS-ZML-002013 - 130 mm lens, 1/2", C-mount
| 13 - 130 mm | C-mount | 1/2" | f/5.6 | 1 MP | - | $399.00Quote | Lead time confirmed with your quote | |
 LS-FFL-029412 mm lens, 1", C-mount, SWIR
| 12 mm | C-mount | 1" | F1.6-22 | 5 μm | - | $3,139.00Quote | Lead time confirmed with your quote | |
 LS-FFL-02918 mm lens, 2/3", C-mount, 2.4-16
| 8 mm | C-mount | 2/3" | F2.4-16 | 8 MP | - | $459.00Quote | Lead time confirmed with your quote | |
 LS-FFL-029335 mm lens, 2/3", C-mount
| 35 mm | C-mount | 2/3" | F2.4-16 | 8 MP | - | $329.00Quote | Lead time confirmed with your quote | |
 LS-FFL-029225 mm lens, 2/3", C-mount, Visible, dimensions 29 x 31.5
| 25 mm | C-mount | 2/3" | F2.4-16 | 8 MP | - | $329.00Quote | Lead time confirmed with your quote | |
 LS-FFL-028816 mm lens, 1.1", C-mount, 24 MP
| 16 mm | C-mount | 1.1" | F2.8-16 | 24 MP | - | $789.00Quote | Lead time confirmed with your quote | |
 LS-FFL-028935 mm lens, 1.1", C-mount, focus range 0.2 m~inf
| 35 mm | C-mount | 1.1" | F2.8-16 | 24 MP | - | $749.00Quote | Lead time confirmed with your quote | |
 LS-FFL-029050 mm lens, 1.1", C-mount, 24 MP
| 50 mm | C-mount | 1.1" | F2.8-16 | 24 MP | - | $739.00Quote | Lead time confirmed with your quote | |
 LS-FFL-028412 mm lens, 1/1.8", C-mount, rear dia. 30.5 mm
| 12 mm | C-mount | 1/1.8" | F1.4-16 | 2 MP | - | $239.00Quote | Lead time confirmed with your quote | |
 LS-FFL-02836 mm lens, 1/1.8", C-mount, 2 MP
| 6 mm | C-mount | 1/1.8" | F1.4-16 | 2 MP | - | $229.00Quote | Lead time confirmed with your quote | |
 LS-FFL-028750 mm lens, 1/1.8", C-mount
| 50 mm | C-mount | 1/1.8" | F2.8-22 | 2 MP | - | $179.00Quote | Lead time confirmed with your quote | |
 LS-FFL-028625 mm lens, 1/1.8", C-mount
| 25 mm | C-mount | 1/1.8" | F1.6-16 | 2 MP | - | $179.00Quote | Lead time confirmed with your quote | |
 LS-FFL-028516 mm lens, 1/1.8", C-mount
| 16 mm | C-mount | 1/1.8" | F1.4-16 | 2 MP | - | $169.00Quote | Lead time confirmed with your quote | |
 LS-FFL-02766 mm lens, 1/1.7", C-mount
| 6 mm | C-mount | 1/1.7" | F2.4-16 | 6 MP | - | $459.00Quote | Lead time confirmed with your quote | |
 LS-FFL-027812 mm lens, 1/1.7", C-mount
| 12 mm | C-mount | 1/1.7" | F2.4-16 | 6 MP | - | $429.00Quote | Lead time confirmed with your quote | |
 LS-FFL-028250 mm lens, 1/1.7", C-mount
| 50 mm | C-mount | 1/1.7" | F2.8-16 | 6 MP | - | $379.00Quote | Lead time confirmed with your quote | |
 LS-FFL-028135 mm lens, 1/1.7", C-mount
| 35 mm | C-mount | 1/1.7" | F2.4-16 | 6 MP | - | $379.00Quote | Lead time confirmed with your quote | |
 LS-FFL-028025 mm lens, 1/1.7", C-mount
| 25 mm | C-mount | 1/1.7" | F2.4-16 | 6 MP | - | $379.00Quote | Lead time confirmed with your quote |
Choose the lens beyond its mount
A matching thread is the start of a lens selection. The lens must also cover the sensor and form the required field at the available working distance. Use the individual specifications to compare focal length, image circle and focus range before choosing a model.
- Match the camera mount and flange arrangement. A CS-mount camera is a different mechanical case; confirm the adapter or spacer arrangement rather than treating the two mounts as interchangeable.
- Compare the sensor diagonal with the rated image circle. A lens may attach correctly and still vignette the corners of a larger sensor.
- Set the field of view and working distance first, then check focal length, aperture, resolution and the clearance needed for connectors and mounting.
