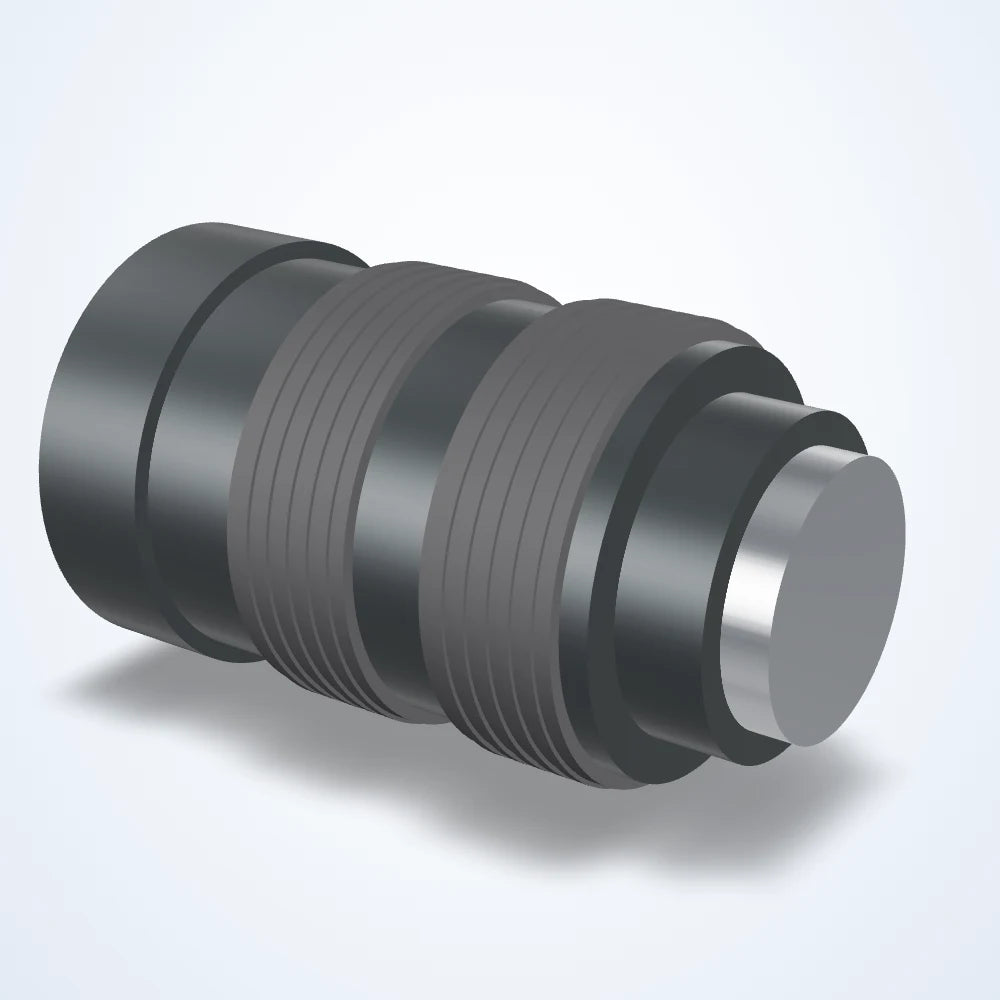

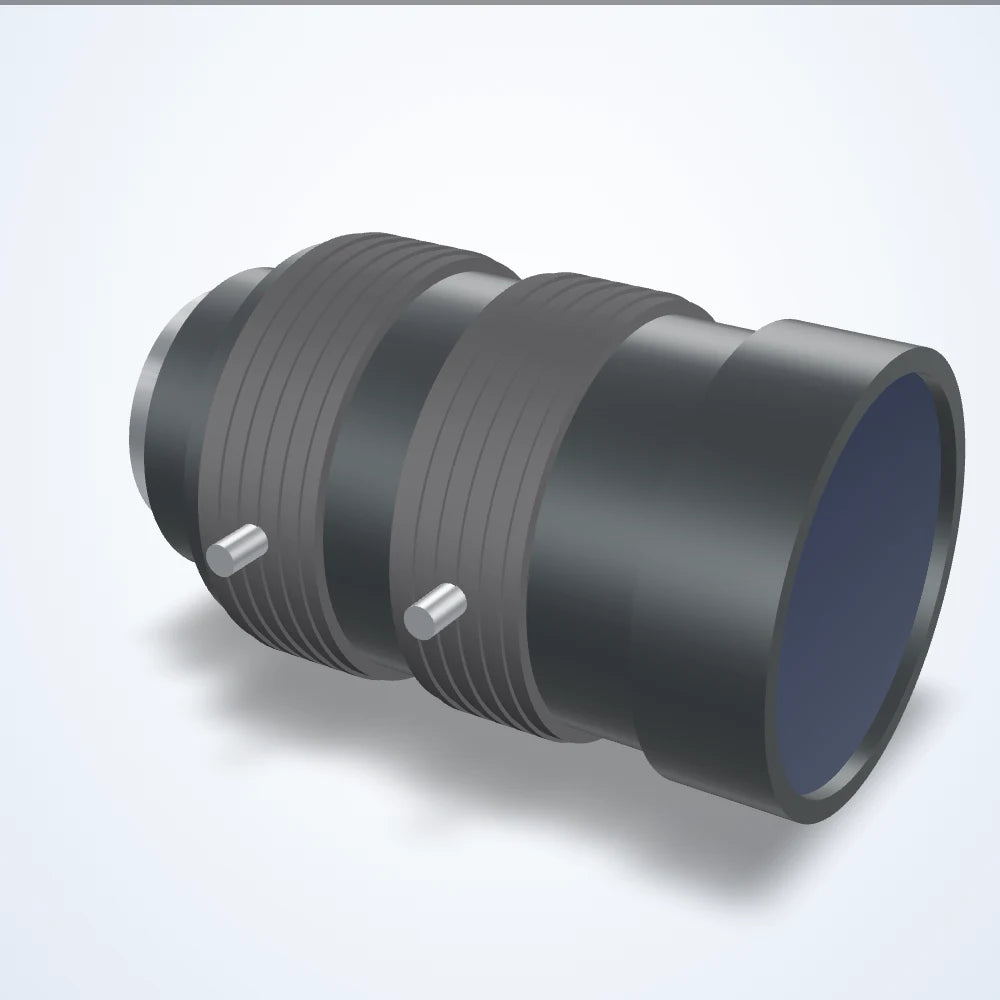

Rendered illustration: the actual product may differ in appearance.
Machine vision lenses
50 mm lens, 1.1", C-mount, 24 MP (LS-FFL-0290)
Model LS-FFL-0290
- Focal length50 mm
- MountC-mount
- Sensor1.1"
- Aperture2.8-16
- Resolution24
$739.00
Quoted price: add to quote for lead time and volume pricing.
Lead time confirmed with your quote
Collect parts in your quote list; we reply with price, lead time and volume pricing.
Machine vision lens for industrial cameras.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-FFL-0290 |
|---|---|
| Angle of view | 16.0 x 12.0 deg |
| Angle of view 1/2" | 7.3 x 5.5 deg |
| Angle of view 2/3" | 10.1 x 7.5 deg |
| FOV @ 1.1″ | 16° × 12° |
| FOV @ 1/2″ | 7.3° × 5.5° |
| FOV @ 2/3″ | 10.1° × 7.5° |
| Flange back | 17.526mm in air |
| Lens type | Fixed Focal Length |
| Minimum object distance (m) | 0.2 |
| Operation | Focus: manual w/lock / Iris: manual w/lock |
| Rear dia. | 40.4mm |
| Spectrum | Visible + NIR |
Optics
| Focal length | 50 mm |
|---|---|
| Aperture (F) | 2.8-16 |
| Distortion | 0.1% (TV, design value) |
| Filter thread | M40.5x0.5 |
| Focus angle | 85 deg |
| Focus control | Manual with Lock |
| Focus lock screw position | 35.5mm from flange |
| Focus range | 0.2m~inf |
| Iris angle | 72 deg |
| Iris control | Manual with Lock |
| Iris lock screw position | 10.4mm from flange |
Sensor and imaging
| Max. sensor format | 1.1" |
|---|---|
| Resolution (MP) | 24 |
Light
| Wavelength | Visible light ~ near infrared |
|---|
Environment and compliance
| Operating temperature | -20~+60 C |
|---|---|
| Operating temperature range | -20 to +60 °C |
Mechanical
| Mount | C-mount |
|---|---|

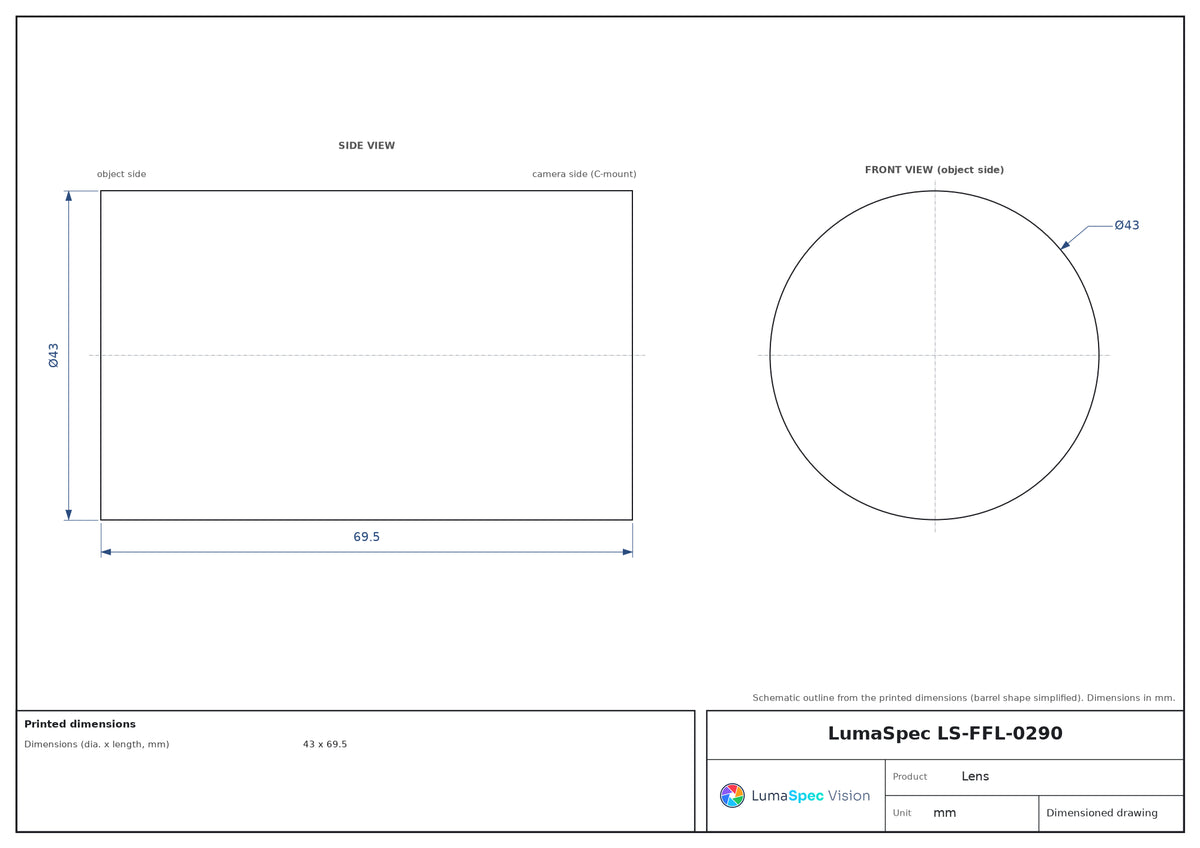

| Dimensions (dia. x length, mm) | 43 x 69.5 |
| Weight (g) | 181 |
