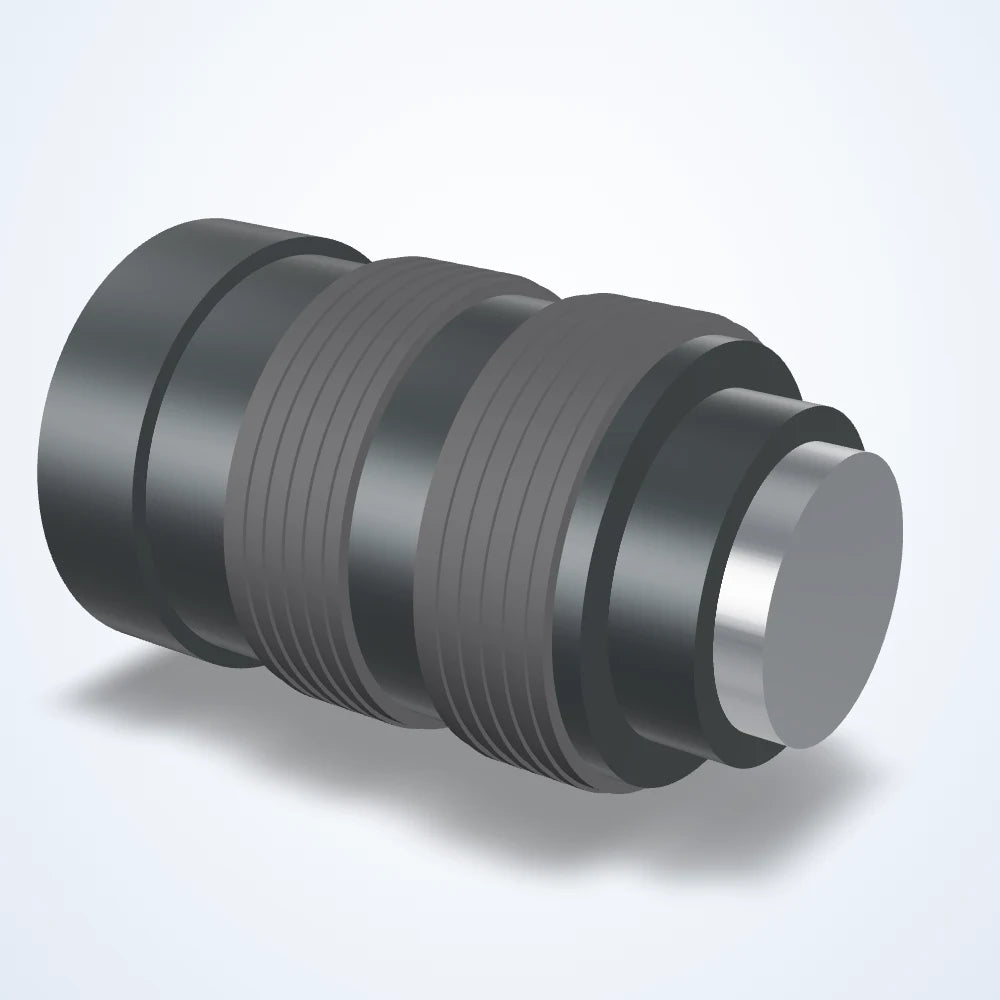

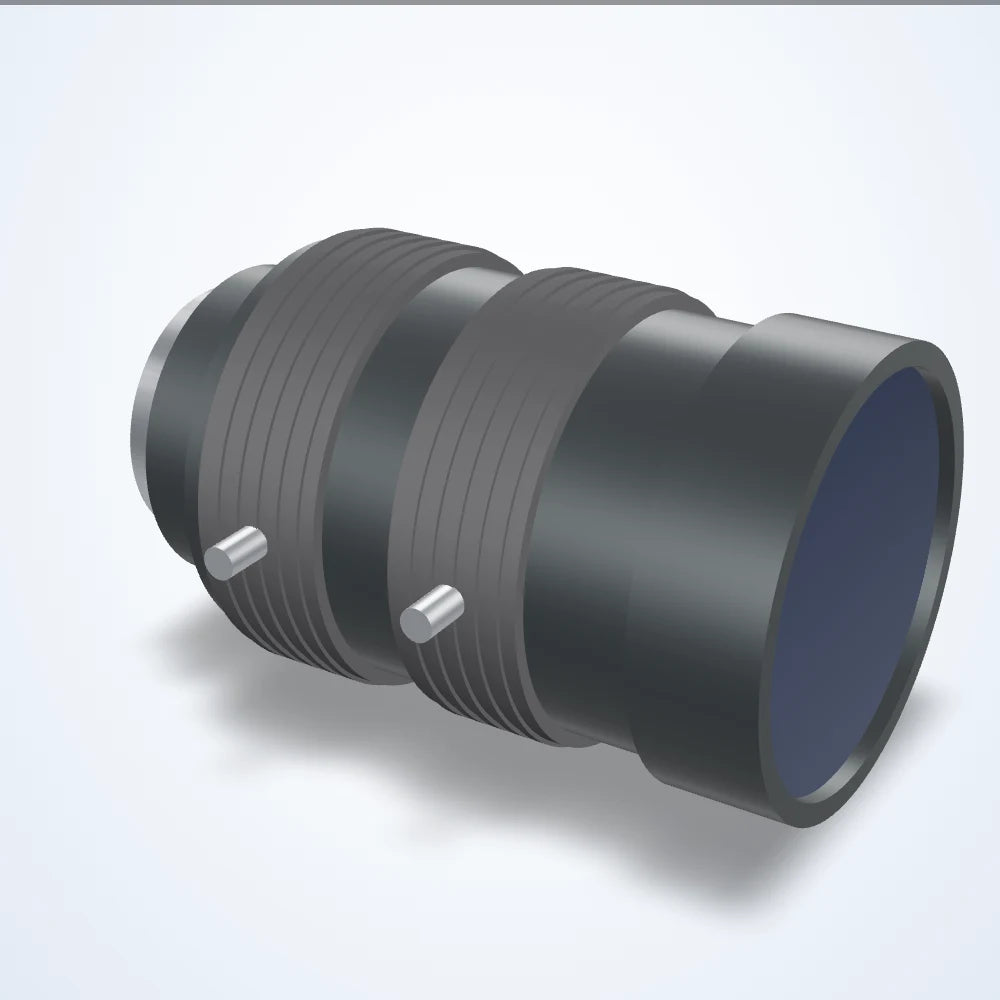

Rendered illustration: the actual product may differ in appearance.
Machine vision lenses
35 mm lens, 1.1", C-mount, focus range 0.2m~inf (LS-FFL-0289)
Model LS-FFL-0289
- Focal length35 mm
- MountC-mount
- Sensor1.1"
- Aperture2.8-16
- Resolution24
$749.00
Quoted price: add to quote for lead time and volume pricing.
Lead time confirmed with your quote
Collect parts in your quote list; we reply with price, lead time and volume pricing.
Machine vision lens for industrial cameras.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-FFL-0289 |
|---|---|
| Angle of view | 22.8 x 17.2 deg |
| Angle of view 1/2" | 10.5 x 7.9 deg |
| Angle of view 2/3" | 14.4 x 10.8 deg |
| FOV @ 1.1″ | 22.8° × 17.2° |
| FOV @ 1/2″ | 10.5° × 7.9° |
| FOV @ 2/3″ | 14.4° × 10.8° |
| Flange back | 17.526mm in air |
| Lens type | Fixed Focal Length |
| Minimum object distance (m) | 0.2 |
| Operation | Focus: manual w/lock / Iris: manual w/lock |
| Rear dia. | 40.4mm |
| Spectrum | Visible + NIR |
Optics
| Focal length | 35 mm |
|---|---|
| Aperture (F) | 2.8-16 |
| Distortion | 0.3% (TV, design value) |
| Filter thread | M40.5x0.5 |
| Focus angle | 80 deg |
| Focus control | Manual with Lock |
| Focus lock screw position | 42.9mm from flange |
| Focus range | 0.2m~inf |
| Iris angle | 77 deg |
| Iris control | Manual with Lock |
| Iris lock screw position | 11.4mm from flange |
Sensor and imaging
| Max. sensor format | 1.1" |
|---|---|
| Resolution (MP) | 24 |
Light
| Wavelength | Visible light ~ near infrared |
|---|
Environment and compliance
| Operating temperature | -20~+60 C |
|---|---|
| Operating temperature range | -20 to +60 °C |
Mechanical
| Mount | C-mount |
|---|---|

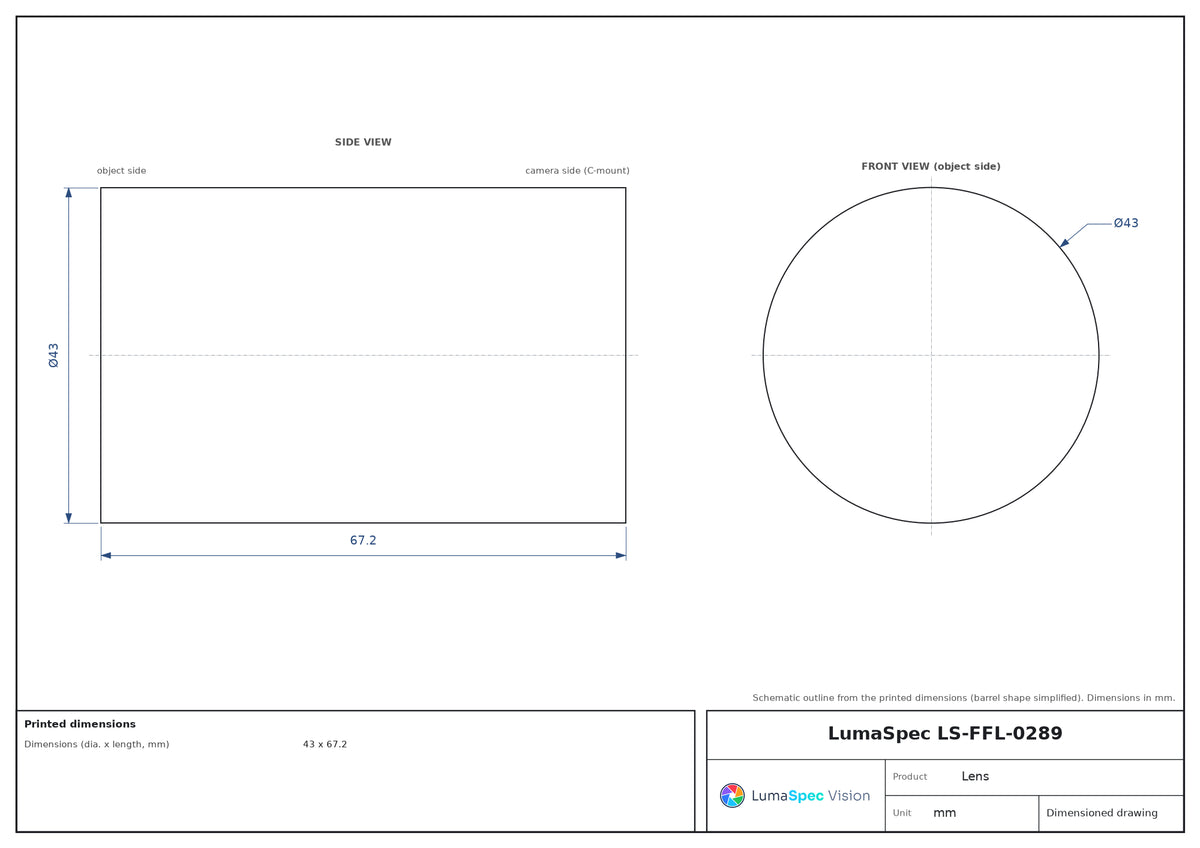

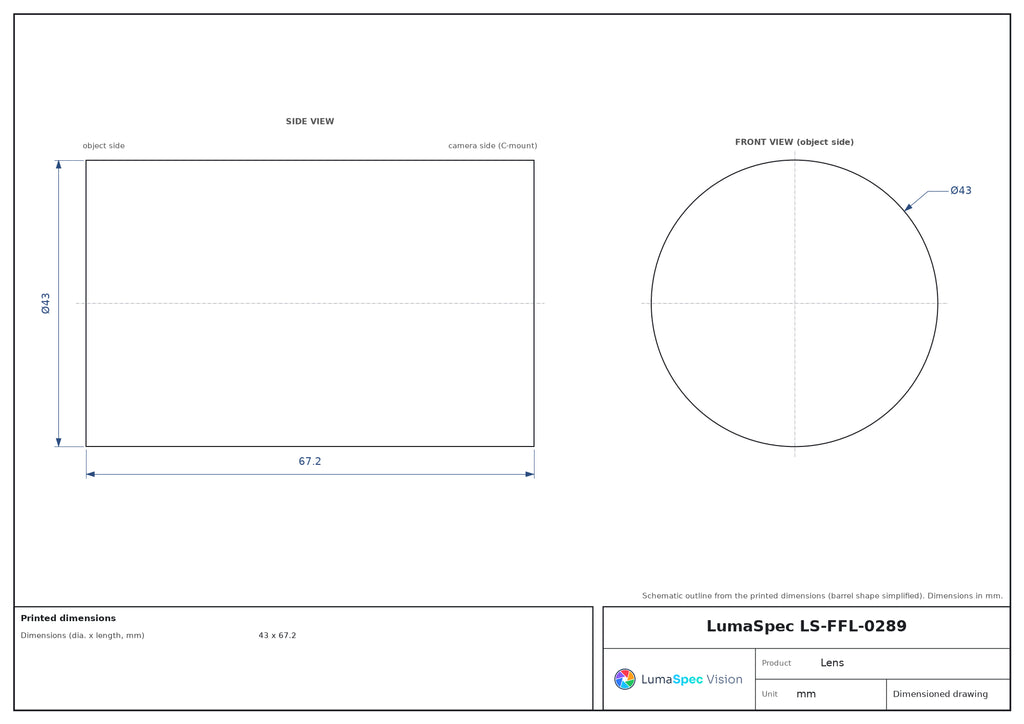

| Dimensions (dia. x length, mm) | 43 x 67.2 |
| Weight (g) | 179 |
