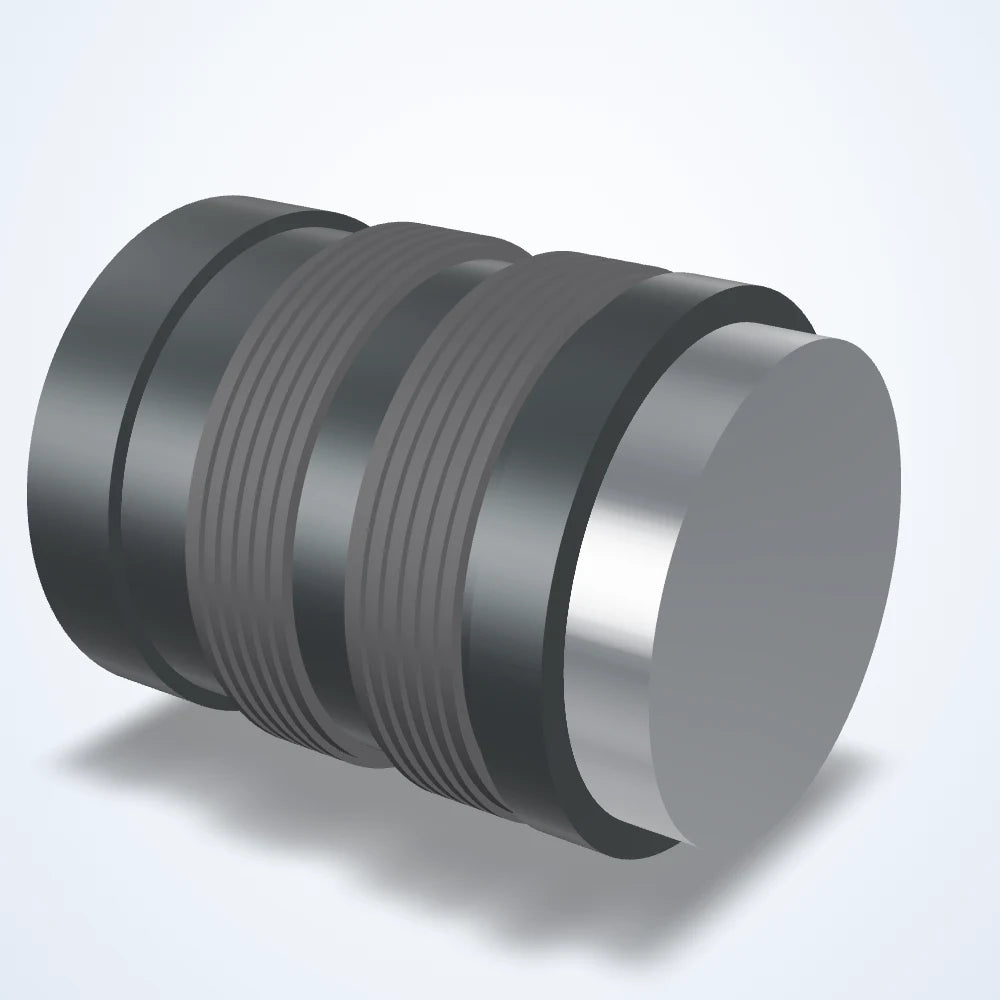

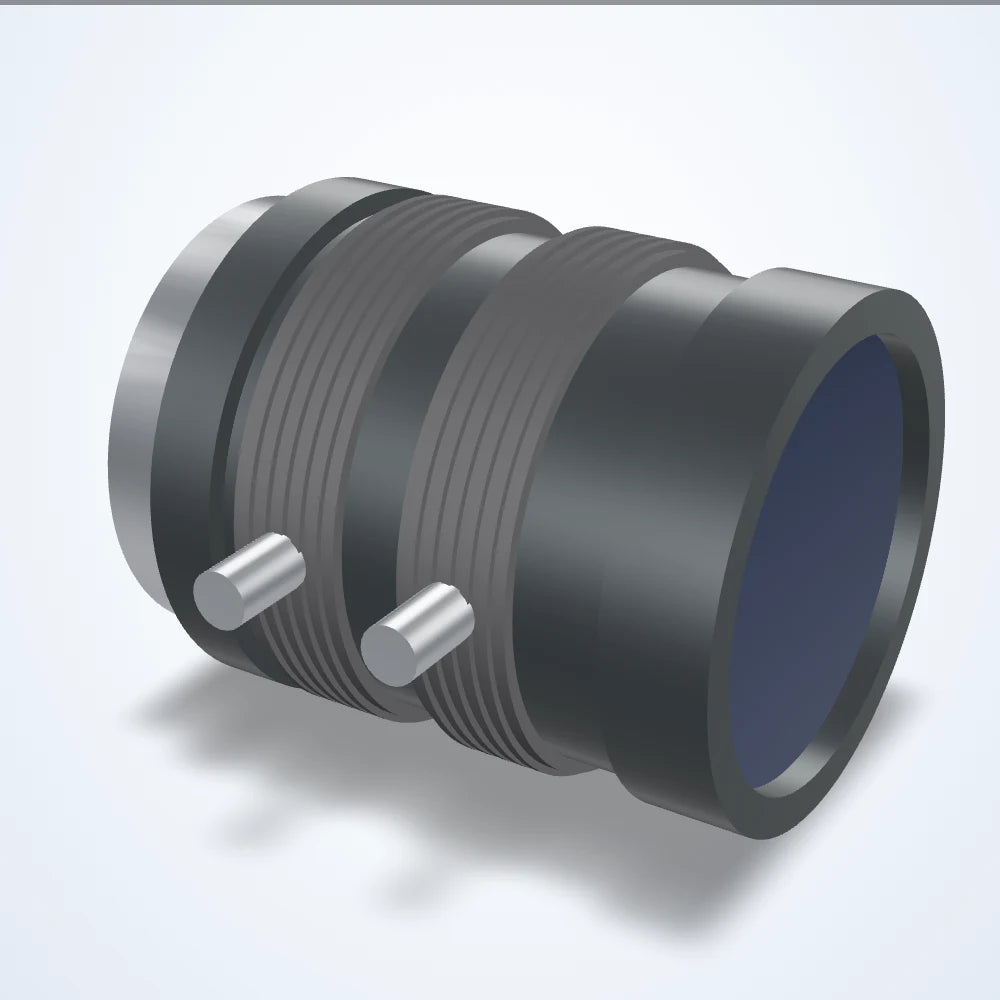

Rendered illustration: the actual product may differ in appearance.
Machine vision lenses
35 mm lens, 2/3", C-mount (LS-FFL-0293)
Model LS-FFL-0293
- Focal length35 mm
- MountC-mount
- Sensor2/3"
- Aperture2.4-16
- Resolution8
$329.00
Quoted price: add to quote for lead time and volume pricing.
Lead time confirmed with your quote
Collect parts in your quote list; we reply with price, lead time and volume pricing.
Machine vision lens for industrial cameras.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-FFL-0293 |
|---|---|
| Angle of view | 12.5 x 9.4 deg (2/3" 4:3) |
| Angle of view 1/1.8" 4:3 | 9.8 x 7.4 deg |
| Angle of view 1/2" 4:3 | 9.1 x 6.8 deg |
| Angle of view 1/3" 4:3 | 6.8 x 5.1 deg |
| Angle of view 2/3" 16:9 | 13.7 x 7.7 deg |
| Angle of view 2/3" 1:1 | 11.1 x 11.1 deg |
| FOV @ 1/1.8″ (4:3) | 9.8° × 7.4° |
| FOV @ 1/2″ (4:3) | 9.1° × 6.8° |
| FOV @ 1/3″ (4:3) | 6.8° × 5.1° |
| FOV @ 2/3″ (1:1) | 11.1° × 11.1° |
| Flange back | 17.526mm (in air) |
| Lens type | Fixed Focal Length |
| Minimum object distance (m) | 0.2 |
| Operation | Focus: manual w/lock / Iris: manual w/lock |
| Rear dia. | 28.5mm |
| Spectrum | Visible |
Optics
| Focal length | 35 mm |
|---|---|
| Aperture (F) | 2.4-16 |
| Distortion | 0.04% (TV, design value) |
| Filter thread | M27x0.5 |
| Focus angle | 187.2 deg |
| Focus control | Manual with Lock |
| Focus range | 0.2m~inf (recommended shooting distance 0.3m) |
| Iris angle | 77.3 deg |
| Iris control | Manual with Lock |
Sensor and imaging
| Max. sensor format | 2/3" |
|---|---|
| Resolution (MP) | 8 |
Light
| Wavelength | Visible light |
|---|
Environment and compliance
| Operating temperature | -20~+60 C |
|---|---|
| Operating temperature range | -20 to +60 °C |

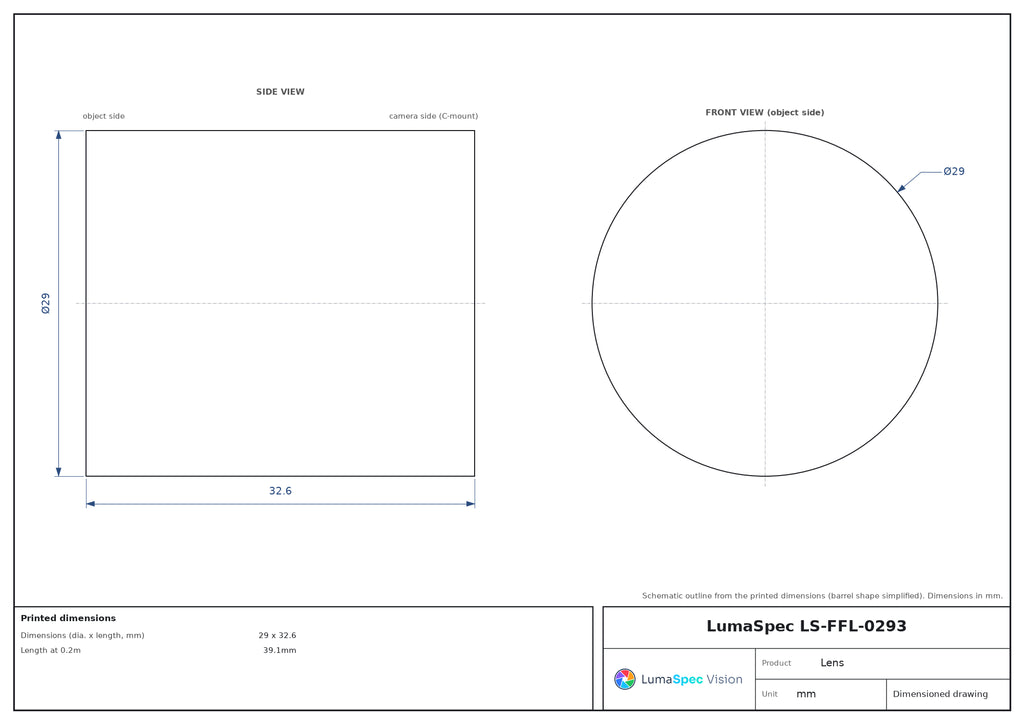

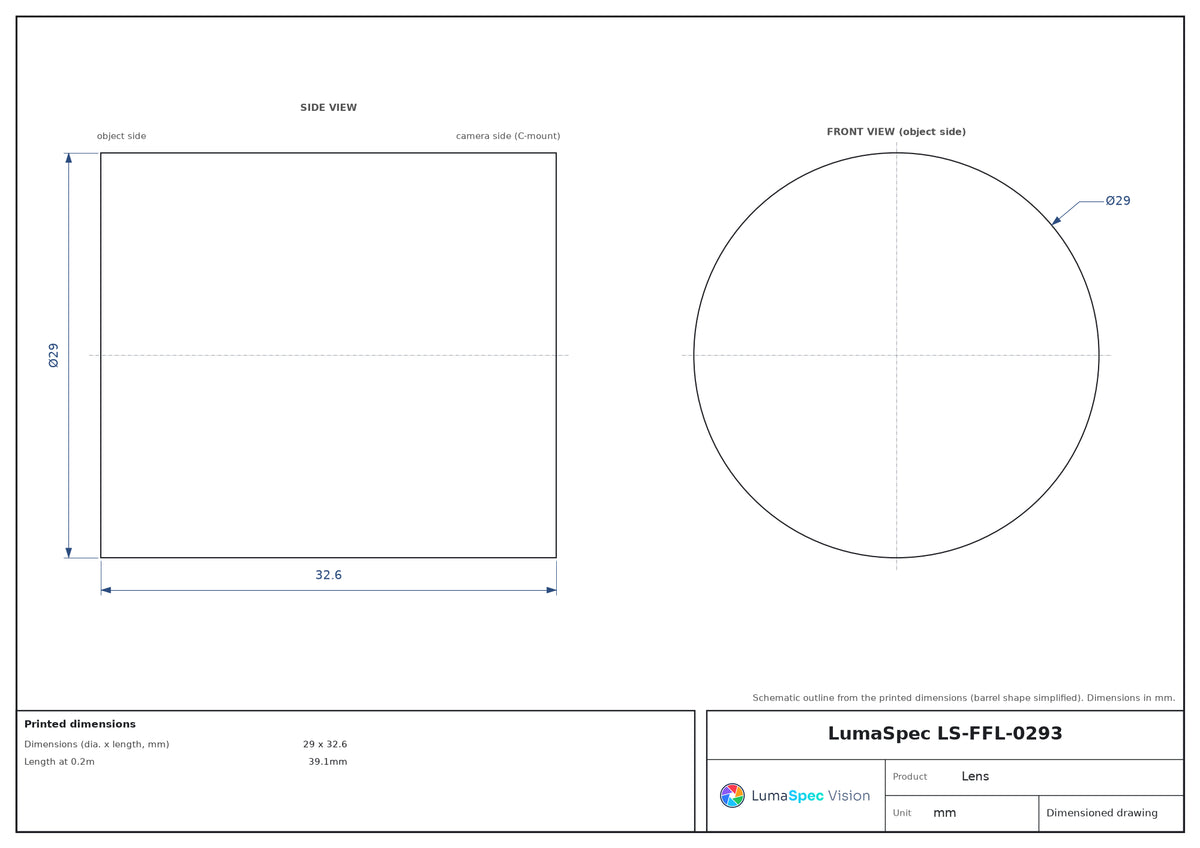

Mechanical
| Mount | C-mount |
|---|---|
| Dimensions (dia. x length, mm) | 29 x 32.6 |
| Length at 0.2m | 39.1mm |
| Weight (g) | 58 |
