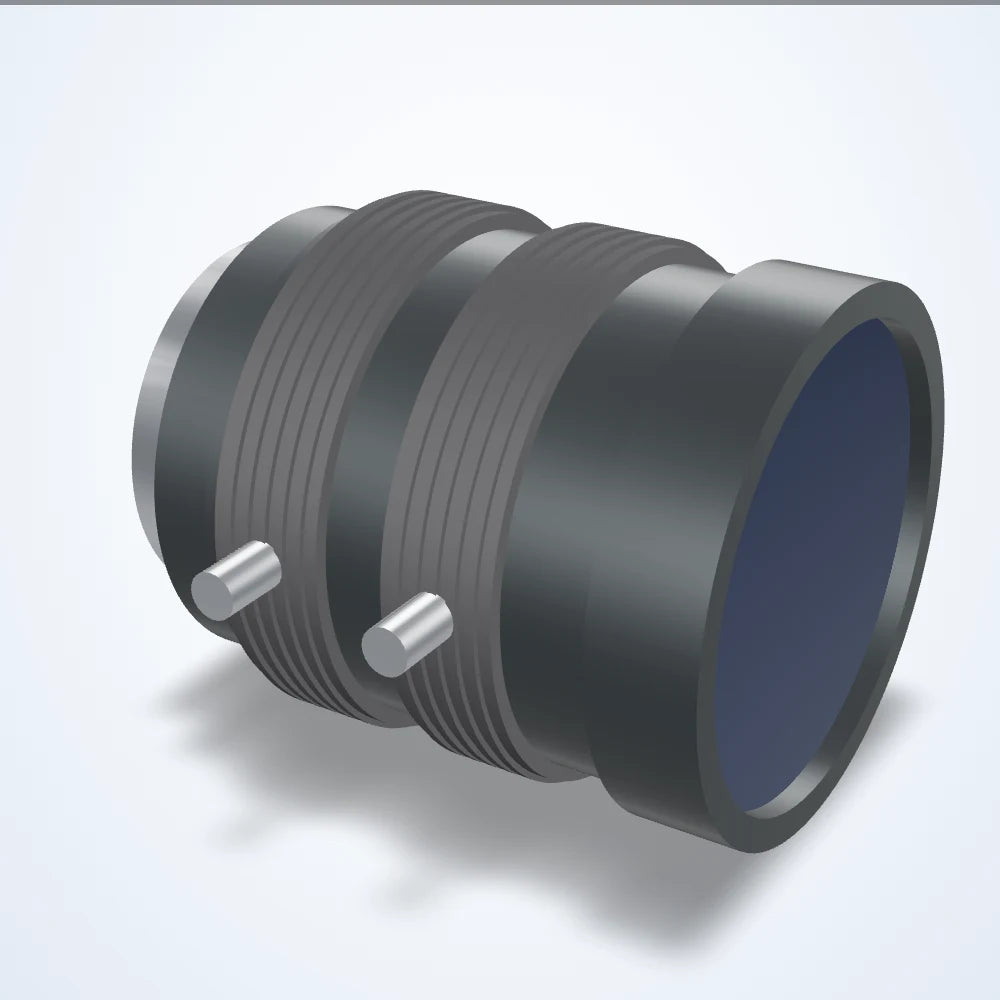

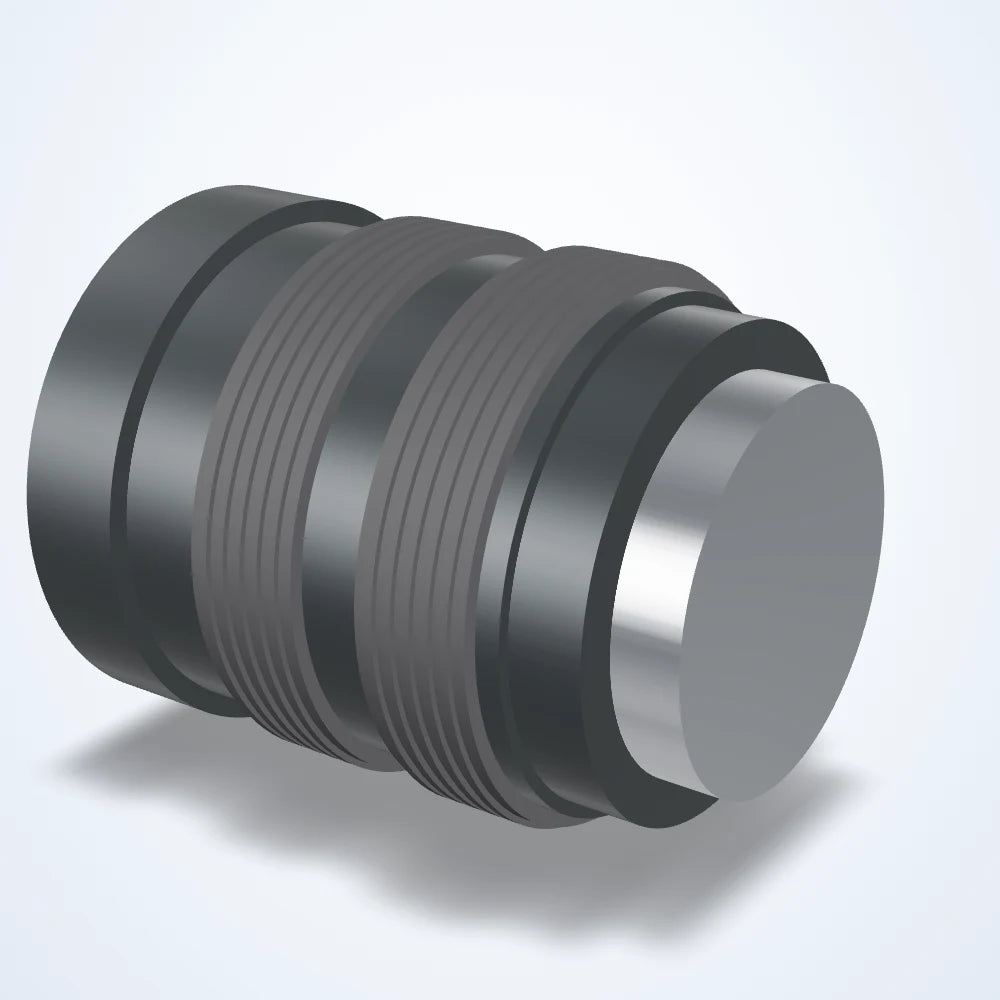

Rendered illustration: the actual product may differ in appearance.
Machine vision lenses
8 mm lens, 2/3", C-mount (LS-FFL-0291)
Model LS-FFL-0291
- Focal length8 mm
- MountC-mount
- Sensor2/3"
- Aperture2.4-16
- Resolution8
$459.00
Quoted price: add to quote for lead time and volume pricing.
Lead time confirmed with your quote
Collect parts in your quote list; we reply with price, lead time and volume pricing.
Machine vision lens for industrial cameras.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-FFL-0291 |
|---|---|
| Angle of view | 58.9 x 45.5 deg (2/3" 4:3) |
| Angle of view 1/1.8" 4:3 | 47.4 x 36.4 deg |
| Angle of view 1/2" 4:3 | 44.3 x 33.7 deg |
| Angle of view 1/3" 4:3 | 33.7 x 25.5 deg |
| Angle of view 2/3" 16:9 | 63.2 x 37.7 deg |
| Angle of view 2/3" 1:1 | 53.1 x 53.1 deg |
| Body dia. | 29mm |
| FOV @ 1/1.8″ (4:3) | 47.4° × 36.4° |
| FOV @ 1/2″ (4:3) | 44.3° × 33.7° |
| FOV @ 1/3″ (4:3) | 33.7° × 25.5° |
| FOV @ 2/3″ (1:1) | 53.1° × 53.1° |
| Flange back | 17.526mm (in air) |
| Lens type | Fixed Focal Length |
| Minimum object distance (m) | 0.1 |
| Operation | Focus: manual w/lock / Iris: manual w/lock |
| Rear dia. | 28.5mm |
| Rear protrusion (inf) | 7.39mm |
| Spectrum | Visible |
Optics
| Focal length | 8 mm |
|---|---|
| Aperture (F) | 2.4-16 |
| Distortion | -0.6% (TV, design value) |
| Filter thread | M34x0.5 |
| Focus angle | 81.4 deg |
| Focus control | Manual with Lock |
| Focus range | 0.1m~inf (recommended shooting distance 0.3m) |
| Iris angle | 79.3 deg |
| Iris control | Manual with Lock |
Sensor and imaging
| Max. sensor format | 2/3" |
|---|---|
| Resolution (MP) | 8 |
Light
| Wavelength | Visible light |
|---|
Environment and compliance
| Operating temperature | -20~+60 C |
|---|---|
| Operating temperature range | -20 to +60 °C |

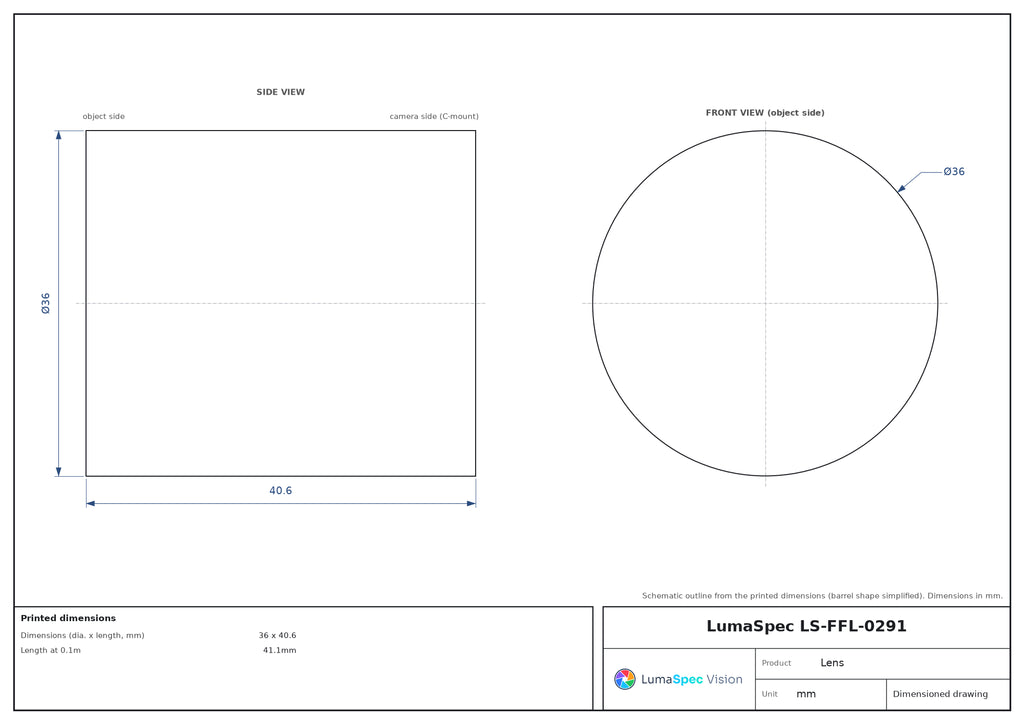

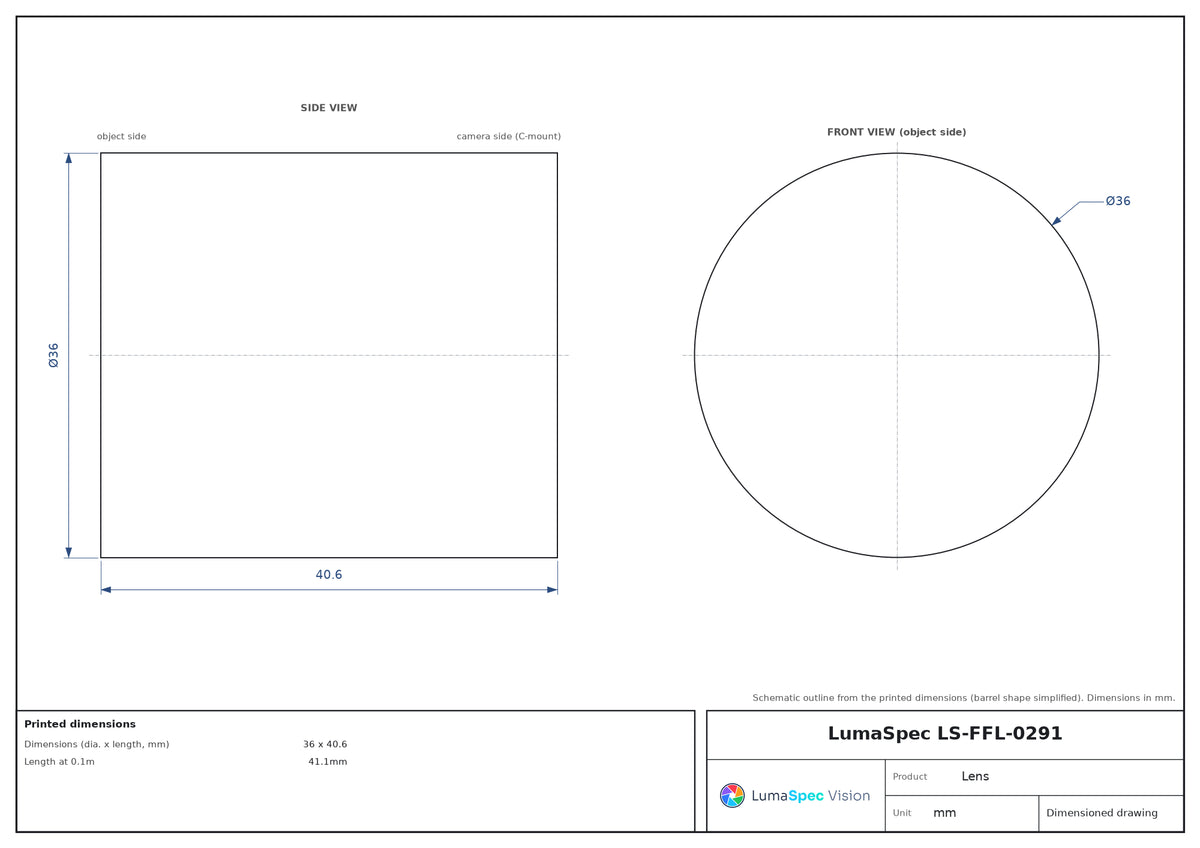

Mechanical
| Mount | C-mount |
|---|---|
| Dimensions (dia. x length, mm) | 36 x 40.6 |
| Length at 0.1m | 41.1mm |
| Weight (g) | 84 |
