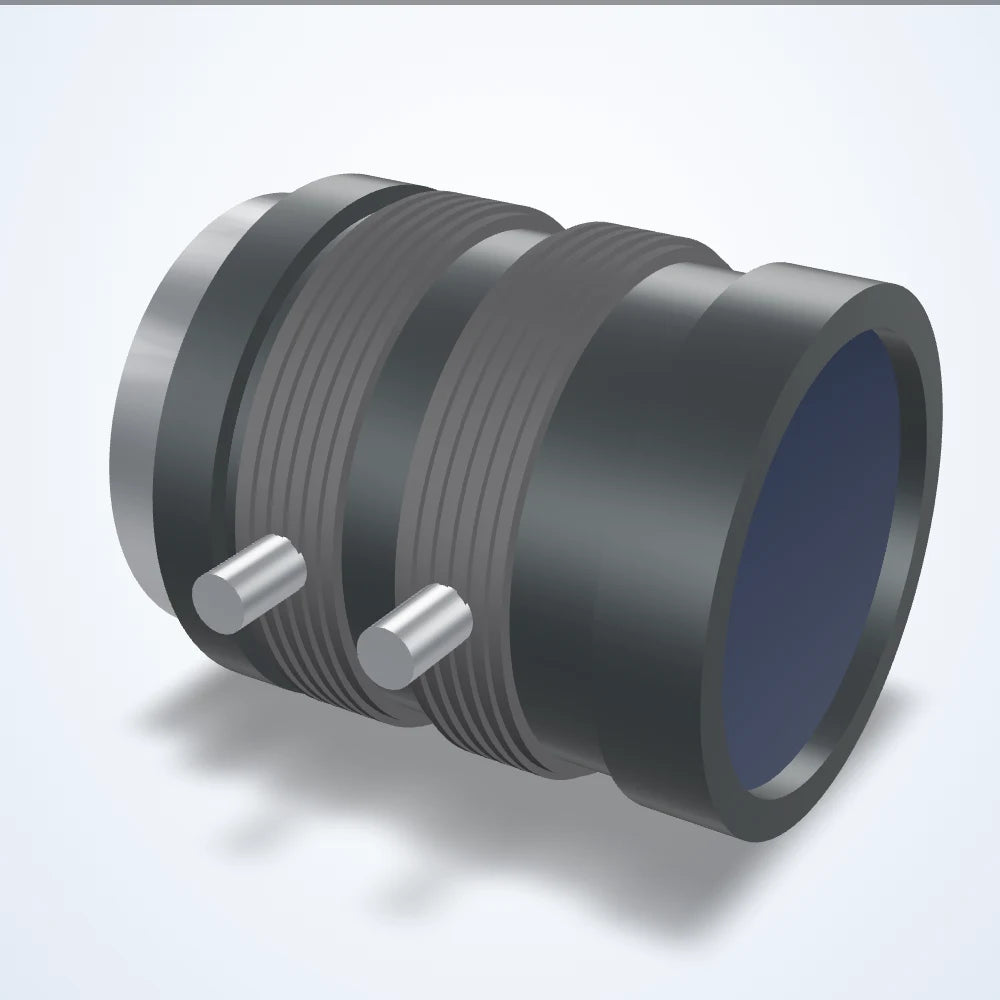

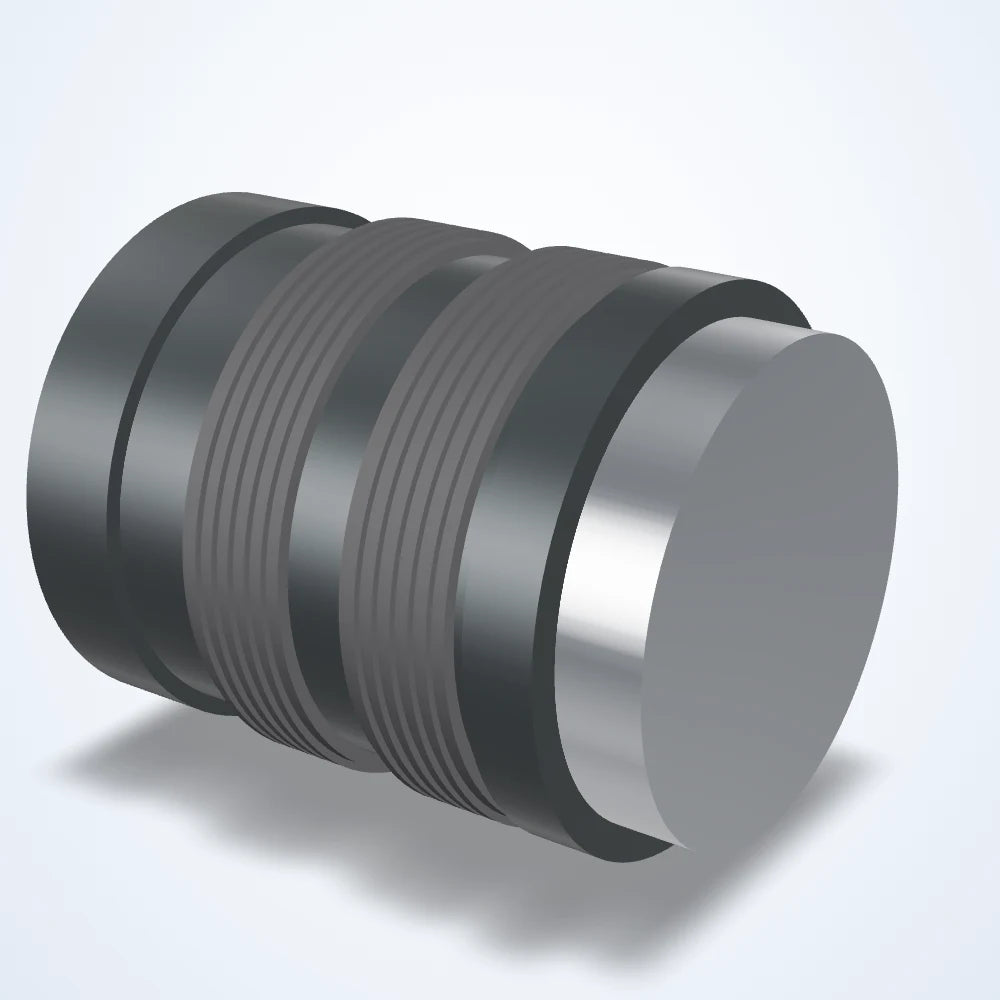

Rendered illustration: the actual product may differ in appearance.
Machine vision lenses
25 mm lens, 2/3", C-mount, Visible, dimensions 29 x 31.5 (LS-FFL-0292)
Model LS-FFL-0292
- Focal length25 mm
- MountC-mount
- Sensor2/3"
- Aperture2.4-16
- Resolution8
$329.00
Quoted price: add to quote for lead time and volume pricing.
Lead time confirmed with your quote
Collect parts in your quote list; we reply with price, lead time and volume pricing.
Machine vision lens for industrial cameras.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-FFL-0292 |
|---|---|
| Angle of view | 18.9 x 14.3 deg (2/3" 4:3) |
| Angle of view 1/1.8" 4:3 | 14.9 x 11.3 deg |
| Angle of view 1/2" 4:3 | 13.8 x 10.4 deg |
| Angle of view 1/3" 4:3 | 10.4 x 7.8 deg |
| Angle of view 2/3" 16:9 | 20.6 x 11.7 deg |
| Angle of view 2/3" 1:1 | 16.9 x 16.9 deg |
| FOV @ 1/1.8″ (4:3) | 14.9° × 11.3° |
| FOV @ 1/2″ (4:3) | 13.8° × 10.4° |
| FOV @ 1/3″ (4:3) | 10.4° × 7.8° |
| FOV @ 2/3″ (1:1) | 16.9° × 16.9° |
| Flange back | 17.526mm (in air) |
| Lens type | Fixed Focal Length |
| Minimum object distance (m) | 0.1 |
| Operation | Focus: manual w/lock / Iris: manual w/lock |
| Rear dia. | 28.5mm |
| Spectrum | Visible |
Optics
| Focal length | 25 mm |
|---|---|
| Aperture (F) | 2.4-16 |
| Distortion | -0.01% (TV, design value) |
| Filter thread | M27x0.5 |
| Focus angle | 167 deg |
| Focus control | Manual with Lock |
| Focus range | 0.1m~inf (recommended shooting distance 0.3m) |
| Iris angle | 76 deg |
| Iris control | Manual with Lock |
Sensor and imaging
| Max. sensor format | 2/3" |
|---|---|
| Resolution (MP) | 8 |
Light
| Wavelength | Visible light |
|---|
Environment and compliance
| Operating temperature | -20~+60 C |
|---|---|
| Operating temperature range | -20 to +60 °C |
Mechanical
| Mount | C-mount |
|---|---|

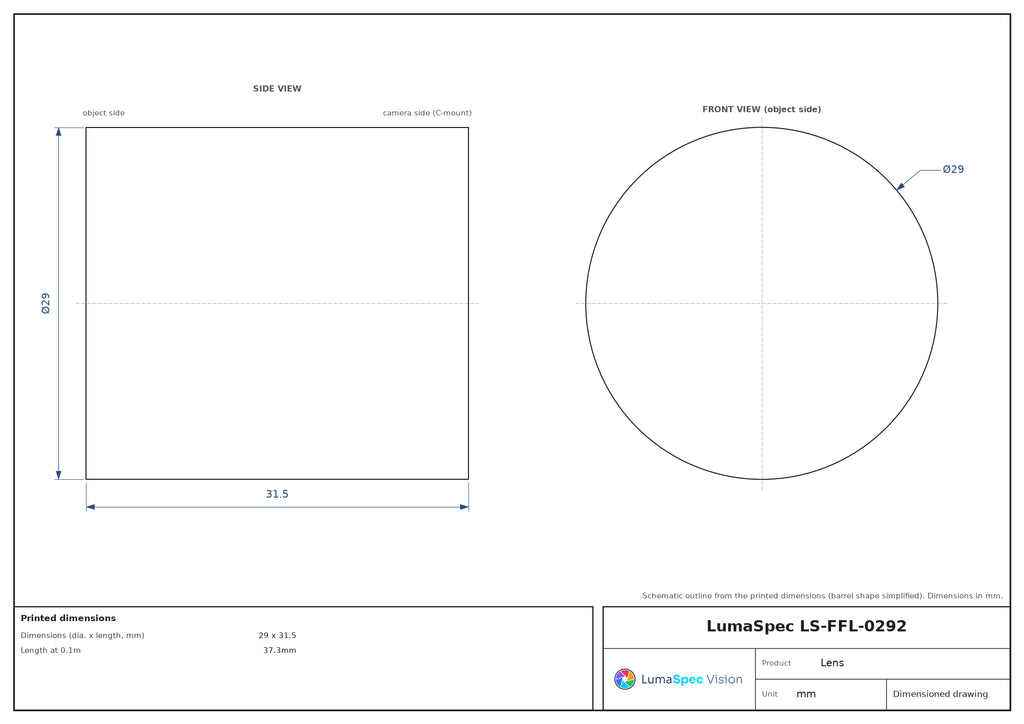

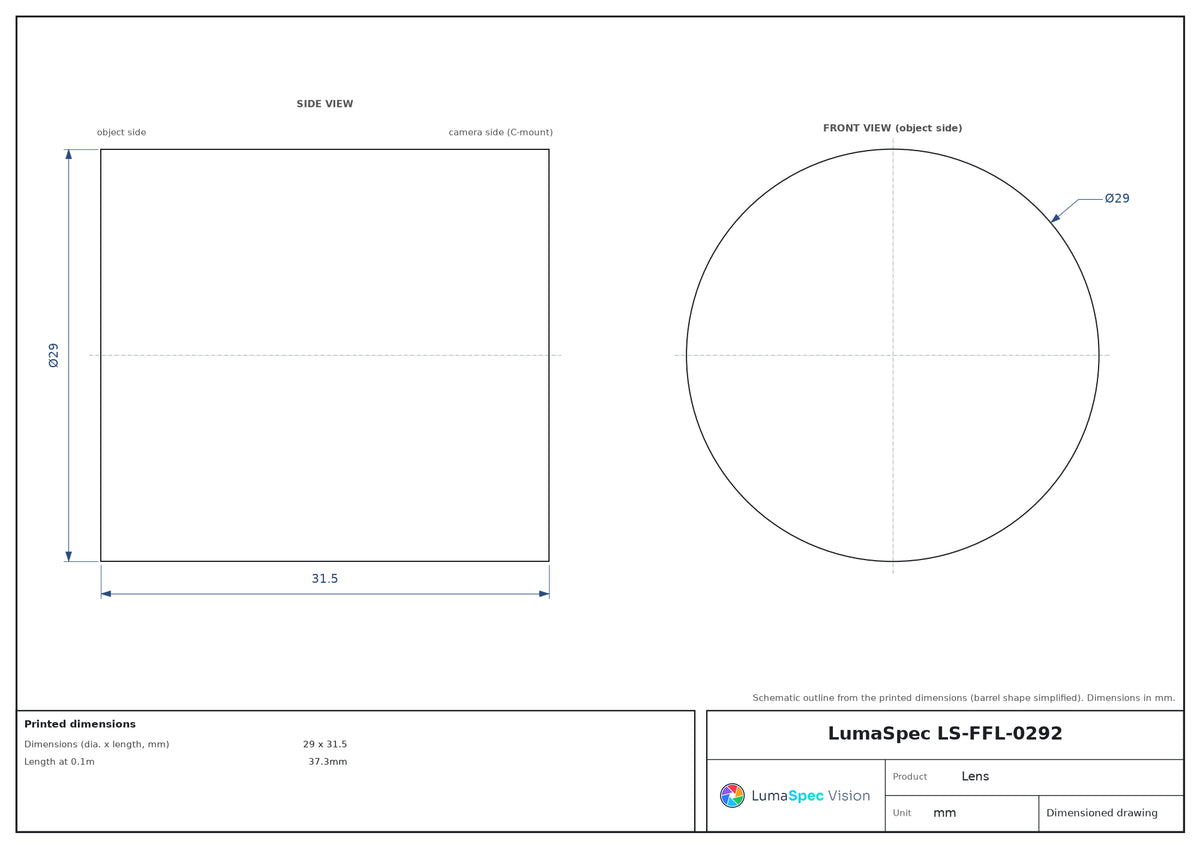

| Dimensions (dia. x length, mm) | 29 x 31.5 |
| Length at 0.1m | 37.3mm |
| Weight (g) | 55 |
Other models in the Lens series, 2/3", C-mount (S45) series
See all 3 models| Model | Size / key data | Price | Availability | Link |
|---|---|---|---|---|
| LS-FFL-0293 | 35 mm | $329.00 Quote | Lead time confirmed with your quote | View |
| LS-FFL-0291 | 8 mm | $459.00 Quote | Lead time confirmed with your quote | View |
