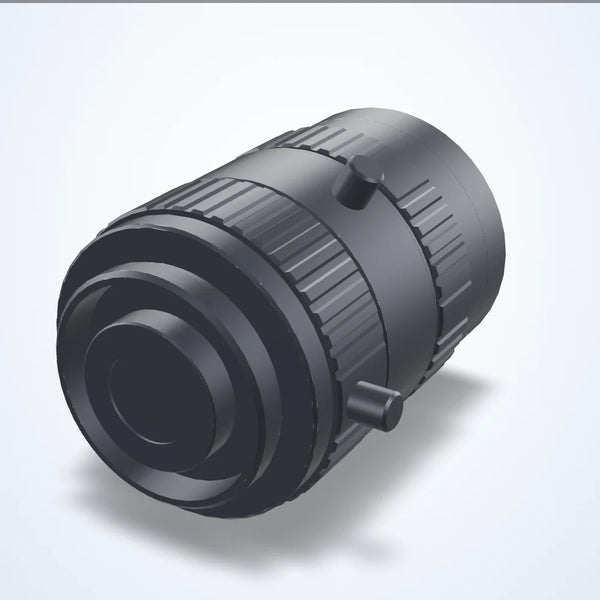

50 mm lens, 2/3", C-mount
LS-FFL-0254
- Focal length 50 mm
- Mount C-mount
- Sensor 2/3"
$1,309.00Quote
Lead time confirmed with your quote
Lenses
C-mount machine vision lenses
Choose the lens beyond its mountChoose a C-mount lens for an industrial camera by sensor coverage, field of view and working distance. These catalog entries are explicitly classified as C-mount; CS-mount and other lens interfaces are separate choices.
Products
25 mm lens, 2/3", C-mount
LS-FFL-0253
- Focal length 25 mm
- Mount C-mount
- Sensor 2/3"
$1,309.00Quote
Lead time confirmed with your quote
16 mm lens, 2/3", C-mount, f/1.4
LS-FFL-0252
- Focal length 16 mm
- Mount C-mount
- Sensor 2/3"
$1,309.00Quote
Lead time confirmed with your quote
12 mm lens, 2/3", C-mount
LS-FFL-0251
- Focal length 12 mm
- Mount C-mount
- Sensor 2/3"
$1,309.00Quote
Lead time confirmed with your quote
8 mm lens, 2/3", C-mount
LS-FFL-0250
- Focal length 8 mm
- Mount C-mount
- Sensor 2/3"
$1,309.00Quote
Lead time confirmed with your quote
6 mm lens, 1/2" (3CCD), C-mount
LS-FFL-0217
- Focal length 6.0 mm
- Mount C-mount
- Sensor 1/2"
$589.00Quote
Lead time confirmed with your quote
3.5 mm lens, 1/1.8", C-mount, F2.4, 4, 5.6, 8
LS-FFL-0193
- Focal length 3.5 mm
- Mount C-mount
- Sensor 1/1.8"
$739.00Quote
Lead time confirmed with your quote
6 mm lens, 1/2", C-mount, M30.5x0.5 thread
LS-FFL-0219
- Focal length 6 mm
- Mount C-mount
- Sensor 1/2"
$239.00Quote
Lead time confirmed with your quote
35 mm lens, 2/3", C-mount, front diameter 19.7 mm
LS-FFL-0184
- Focal length 35 mm
- Mount C-mount
- Sensor 2/3"
$489.00Quote
Lead time confirmed with your quote
25 mm lens, 2/3", C-mount, Visible, 23.7 mm dia., dimensions 34 x 47
LS-FFL-0166
- Focal length 25 mm
- Mount C-mount
- Sensor 2/3"
$489.00Quote
Lead time confirmed with your quote
16 mm lens, 2/3", C-mount, 14.5 mm dia., dimensions 34 x 44.5
LS-FFL-0150
- Focal length 16 mm
- Mount C-mount
- Sensor 2/3"
$489.00Quote
Lead time confirmed with your quote
8.5 mm lens, 4/3", C-mount
LS-FFL-0233
- Focal length 8.5 mm
- Magnification with 1mm ring 0.19×
- Mount C-mount
$1,329.00Quote
Lead time confirmed with your quote
12 mm lens, 4/3", C-mount
LS-FFL-0141
- Focal length 12 mm
- Magnification with 1mm ring 0.19×
- Mount C-mount
$1,329.00Quote
Lead time confirmed with your quote
16 mm lens, 4/3", C-mount
LS-FFL-0155
- Focal length 16 mm
- Magnification with 1mm ring 0.2×
- Mount C-mount
$1,269.00Quote
Lead time confirmed with your quote
50 mm lens, 4/3", C-mount
LS-FFL-0209
- Focal length 50 mm
- Magnification with 10mm ring 0.39×
- Mount C-mount
$1,119.00Quote
Lead time confirmed with your quote
35 mm lens, 4/3", C-mount
LS-FFL-0192
- Focal length 35 mm
- Magnification with 10mm ring 0.48×
- Mount C-mount
$1,119.00Quote
Lead time confirmed with your quote
25 mm lens, 4/3", C-mount
LS-FFL-0173
- Focal length 25 mm
- Magnification with 10mm ring 0.55×
- Mount C-mount
$1,119.00Quote
Lead time confirmed with your quote
4.5 mm lens, 1/1.8", C-mount
LS-FFL-0213
- Focal length 4.5 mm
- Mount C-mount
- Sensor 1/1.8"
$159.00Quote
Lead time confirmed with your quote
3.5 mm lens, 1/1.8", C-mount, F1.4-16
LS-FFL-0195
- Focal length 3.5 mm
- Mount C-mount
- Sensor 1/1.8"
$149.00Quote
Lead time confirmed with your quote
6 mm lens, 1/1.8", C-mount
LS-FFL-0218
- Focal length 6 mm
- Magnification with 1mm ring 0.19×
- Mount C-mount
$139.00Quote
Lead time confirmed with your quote
12 mm lens, 1/1.8", C-mount
LS-FFL-0140
- Focal length 12 mm
- Magnification with 1mm ring 0.12×
- Mount C-mount
$139.00Quote
Lead time confirmed with your quote
5 mm lens, 2/3", C-mount, back focus 10.2 mm in air
LS-FFL-0212
- Focal length 5 mm
- Mount C-mount
- Sensor 2/3"
$759.00Quote
Lead time confirmed with your quote
8 mm lens, 2/3", C-mount, 17.5 mm dia., 1.4-16, IP67
LS-FFL-0232
- Focal length 8 mm
- Mount C-mount
- Sensor 2/3"
$319.00Quote
Lead time confirmed with your quote
25 mm lens, 2/3", C-mount, Visible, 24 mm dia., dimensions 33 x 39.7
LS-FFL-0170
- Focal length 25 mm
- Mount C-mount
- Sensor 2/3"
$299.00Quote
Lead time confirmed with your quote
| Compare | |||||||||
|---|---|---|---|---|---|---|---|---|---|
 LS-FFL-025450 mm lens, 2/3", C-mount
| 50 mm | C-mount | 2/3" | 0.5 m to ∞ | f/1.8 | - | $1,309.00Quote | Lead time confirmed with your quote | |
 LS-FFL-025325 mm lens, 2/3", C-mount
| 25 mm | C-mount | 2/3" | 0.3 m to ∞ | f/1.4 | - | $1,309.00Quote | Lead time confirmed with your quote | |
 LS-FFL-025216 mm lens, 2/3", C-mount, f/1.4
| 16 mm | C-mount | 2/3" | 0.3 m to ∞ | f/1.4 | - | $1,309.00Quote | Lead time confirmed with your quote | |
 LS-FFL-025112 mm lens, 2/3", C-mount
| 12 mm | C-mount | 2/3" | 0.15 m to ∞ | f/1.4 | - | $1,309.00Quote | Lead time confirmed with your quote | |
 LS-FFL-02508 mm lens, 2/3", C-mount
| 8 mm | C-mount | 2/3" | 0.1 m to ∞ | f/1.4 | - | $1,309.00Quote | Lead time confirmed with your quote | |
 LS-FFL-02176 mm lens, 1/2" (3CCD), C-mount
| 6.0 mm | C-mount | 1/2" | - | F1.8-16 | Center 120lp/mm, corner 100lp/mm | $589.00Quote | Lead time confirmed with your quote | |
 LS-FFL-01933.5 mm lens, 1/1.8", C-mount, F2.4, 4, 5.6, 8
| 3.5 mm | C-mount | 1/1.8" | - | 2.4, 4, 5.6, 8 | Center 100lp/mm, corner 80lp/mm | $739.00Quote | Lead time confirmed with your quote | |
 LS-FFL-02196 mm lens, 1/2", C-mount, M30.5x0.5 thread
| 6 mm | C-mount | 1/2" | - | 1.2 to closed | - | $239.00Quote | Lead time confirmed with your quote | |
 LS-FFL-018435 mm lens, 2/3", C-mount, front diameter 19.7 mm
| 35 mm | C-mount | 2/3" | - | F2.0-22 | Center 120/mm, corner 80/mm | $489.00Quote | Lead time confirmed with your quote | |
 LS-FFL-016625 mm lens, 2/3", C-mount, Visible, 23.7 mm dia., dimensions 34 x 47
| 25 mm | C-mount | 2/3" | - | F1.4-16 | - | $489.00Quote | Lead time confirmed with your quote | |
 LS-FFL-015016 mm lens, 2/3", C-mount, 14.5 mm dia., dimensions 34 x 44.5
| 16 mm | C-mount | 2/3" | - | F1.4-16 | - | $489.00Quote | Lead time confirmed with your quote | |
 LS-FFL-02338.5 mm lens, 4/3", C-mount
| 8.5 mm | C-mount | 4/3" | - | F2.8-22 | - | $1,329.00Quote | Lead time confirmed with your quote | |
 LS-FFL-014112 mm lens, 4/3", C-mount
| 12 mm | C-mount | 4/3" | - | F2.0-22 | - | $1,329.00Quote | Lead time confirmed with your quote | |
 LS-FFL-015516 mm lens, 4/3", C-mount
| 16 mm | C-mount | 4/3" | - | F2.0-22 | - | $1,269.00Quote | Lead time confirmed with your quote | |
 LS-FFL-020950 mm lens, 4/3", C-mount
| 50 mm | C-mount | 4/3" | - | F2.0-22 | Center 160/mm, corner 80/mm | $1,119.00Quote | Lead time confirmed with your quote | |
 LS-FFL-019235 mm lens, 4/3", C-mount
| 35 mm | C-mount | 4/3" | - | F2.0-16 | Center 160/mm, corner 80/mm | $1,119.00Quote | Lead time confirmed with your quote | |
 LS-FFL-017325 mm lens, 4/3", C-mount
| 25 mm | C-mount | 4/3" | - | F2.0-16 | Center 160/mm, corner 80/mm | $1,119.00Quote | Lead time confirmed with your quote | |
 LS-FFL-02134.5 mm lens, 1/1.8", C-mount
| 4.5 mm | C-mount | 1/1.8" | - | F1.4-16 | Center 100lp/mm, corner 40lp/mm | $159.00Quote | Lead time confirmed with your quote | |
 LS-FFL-01953.5 mm lens, 1/1.8", C-mount, F1.4-16
| 3.5 mm | C-mount | 1/1.8" | - | F1.4-16 | Center 100lp/mm, corner 40lp/mm | $149.00Quote | Lead time confirmed with your quote | |
 LS-FFL-02186 mm lens, 1/1.8", C-mount
| 6 mm | C-mount | 1/1.8" | - | F1.4-16 | Center 100lp/mm, corner 40lp/mm | $139.00Quote | Lead time confirmed with your quote | |
 LS-FFL-014012 mm lens, 1/1.8", C-mount
| 12 mm | C-mount | 1/1.8" | - | F1.4-16 | Center 100 lp/mm / Corner 40 lp/mm | $139.00Quote | Lead time confirmed with your quote | |
|
LS-FFL-02125 mm lens, 2/3", C-mount, back focus 10.2 mm in air
| 5 mm | C-mount | 2/3" | - | 2.8, 4, 5.6, 8 | - | $759.00Quote | Lead time confirmed with your quote | |
 LS-FFL-02328 mm lens, 2/3", C-mount, 17.5 mm dia., 1.4-16, IP67
| 8 mm | C-mount | 2/3" | - | F1.4-16 | - | $319.00Quote | Lead time confirmed with your quote | |
 LS-FFL-017025 mm lens, 2/3", C-mount, Visible, 24 mm dia., dimensions 33 x 39.7
| 25 mm | C-mount | 2/3" | - | 1.4, 4, 8, 16 | - | $299.00Quote | Lead time confirmed with your quote |
Choose the lens beyond its mount
A matching thread is the start of a lens selection. The lens must also cover the sensor and form the required field at the available working distance. Use the individual specifications to compare focal length, image circle and focus range before choosing a model.
- Match the camera mount and flange arrangement. A CS-mount camera is a different mechanical case; confirm the adapter or spacer arrangement rather than treating the two mounts as interchangeable.
- Compare the sensor diagonal with the rated image circle. A lens may attach correctly and still vignette the corners of a larger sensor.
- Set the field of view and working distance first, then check focal length, aperture, resolution and the clearance needed for connectors and mounting.
