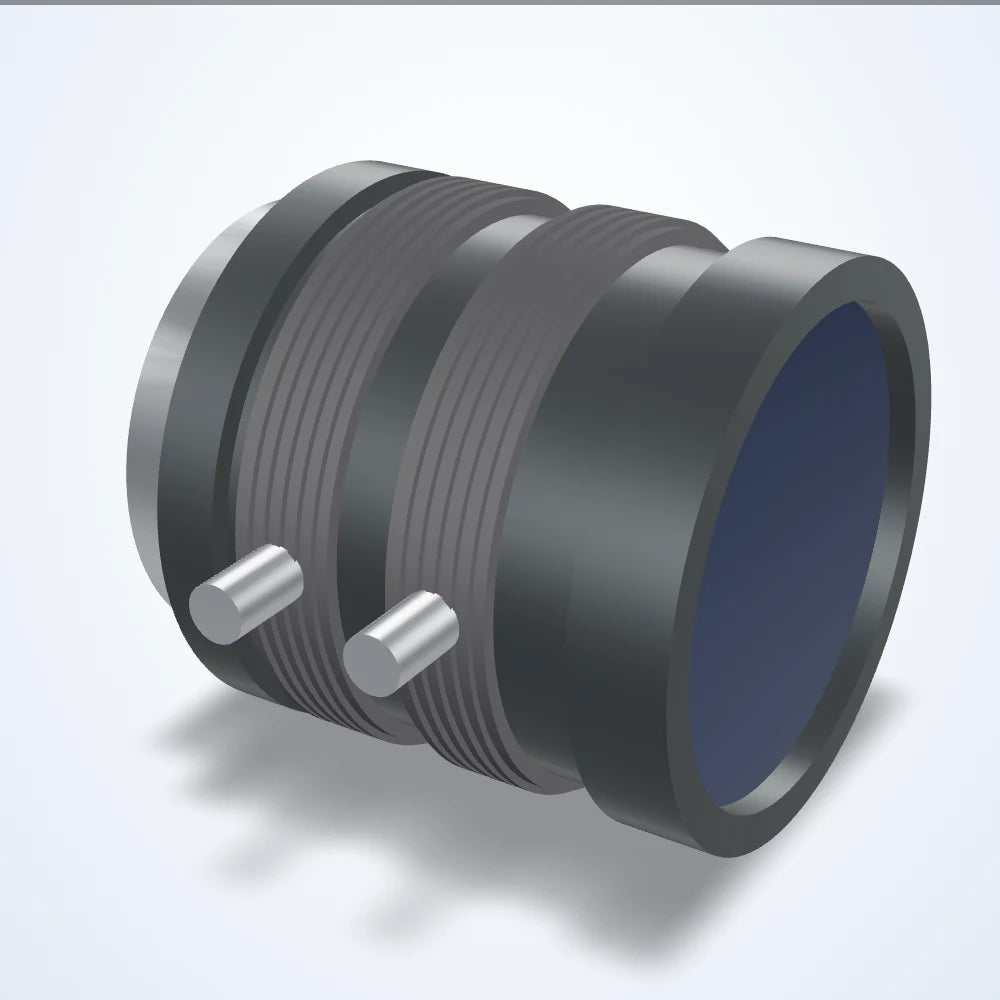

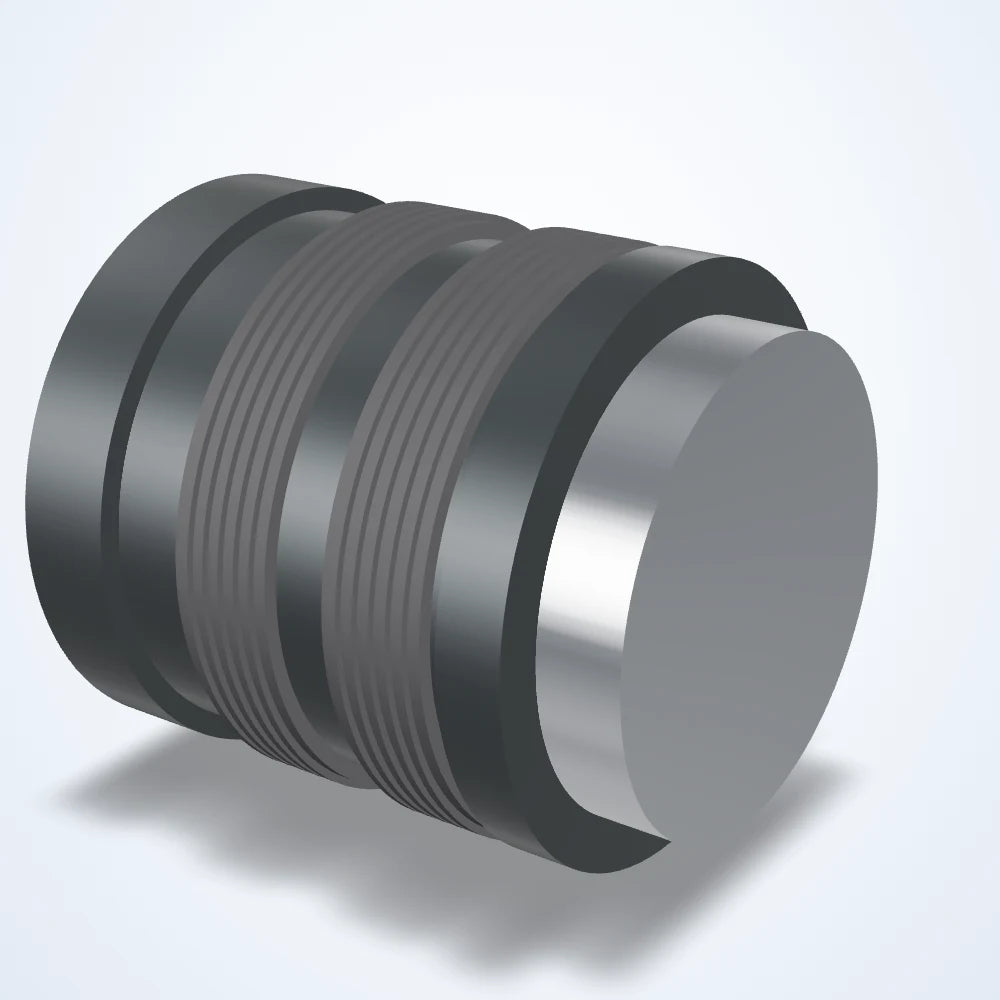

Rendered illustration: the actual product may differ in appearance.
Machine vision lenses
12 mm lens, 1/1.8", C-mount (LS-FFL-0140)
Model LS-FFL-0140
- Focal length12 mm
- Magnification0.12×
- MountC-mount
- Sensor1/1.8"
- Aperture1.4-16
- ResolutionCenter 100 lp/mm / Corner 40 lp/mm
$139.00
Quoted price: add to quote for lead time and volume pricing.
Lead time confirmed with your quote
Collect parts in your quote list; we reply with price, lead time and volume pricing.
Machine vision lens for industrial cameras.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-FFL-0140 |
|---|---|
| Angle of view | 34.6 x 25.9 deg (H x V), 43.5 deg diagonal |
| Angle of view @ 1/1.8″ | 34.6° × 25.9° |
| Angle of view @ 1/2″ | 30.7° × 23.0° |
| Angle of view @ 1/3″ | 23.0° × 17.2° |
| Entrance pupil position | 13.4 mm from front |
| Exit pupil | -32.5mm |
| Flange back | 17.526mm in air |
| Front / rear effective dia. | Front 12.3mm / Rear 11.7mm |
| Lens type | Fixed Focal Length |
| Minimum object distance (m) | 0.3 |
| Minimum object distance with 1mm ring | 93 mm |
| Minimum object distance with 5mm ring | 22 mm |
| Shooting range at mod (1/1.8") | V 140.0mm, H 189.9mm, D 242.9mm |
| Spectrum | Visible |
| Thumb screw | M2 |
Optics
| Focal length | 12 mm |
|---|---|
| Aperture (F) | 1.4-16 |
| Distortion | -0.8% (TV) |
| Back focus | 11.1mm in air |
| Filter thread | M25.5x0.5 |
| Focus control | Manual |
| Focus range | 0.3 m - ∞ |
| Image circle | 9 mm |
| Image size dimensions | 7.2 mm x 5.4 mm |
| Iris control | Manual |
| Magnification with 1mm ring | 0.12× |
| Magnification with 5mm ring | 0.45× |
Sensor and imaging
| Max. sensor format | 1/1.8" |
|---|---|
| Resolution center/corner | Center 100 lp/mm / Corner 40 lp/mm |
Environment and compliance
| Operating temperature range | -10 to +50 °C |
|---|---|
| Storage temperature range | -20~+60 C |
Mechanical
| Mount | C-mount |
|---|---|

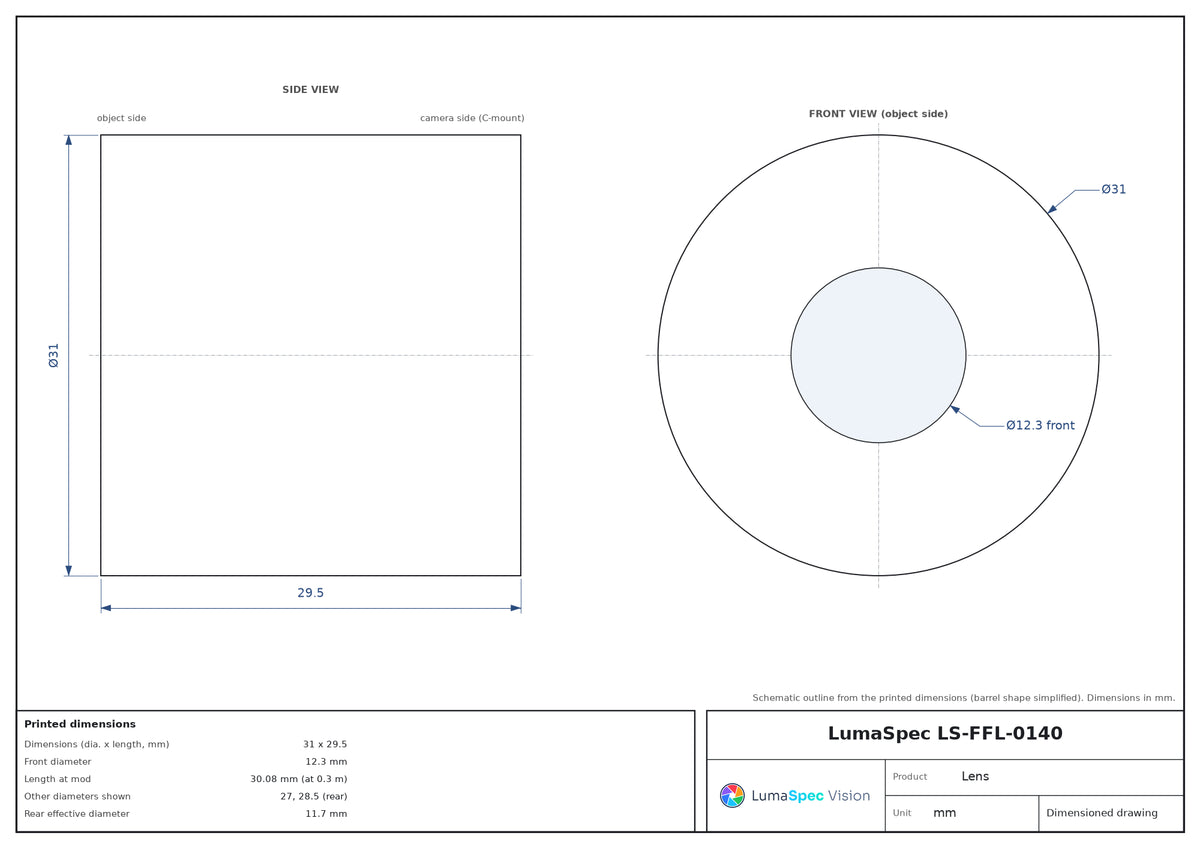

| Dimensions (dia. x length, mm) | 31 x 29.5 |
| Front diameter | 12.3 mm |
| Length at mod | 30.08 mm (at 0.3 m) |
| Mount thread | 1-32UNF |
| Weight (g) | 55 |
