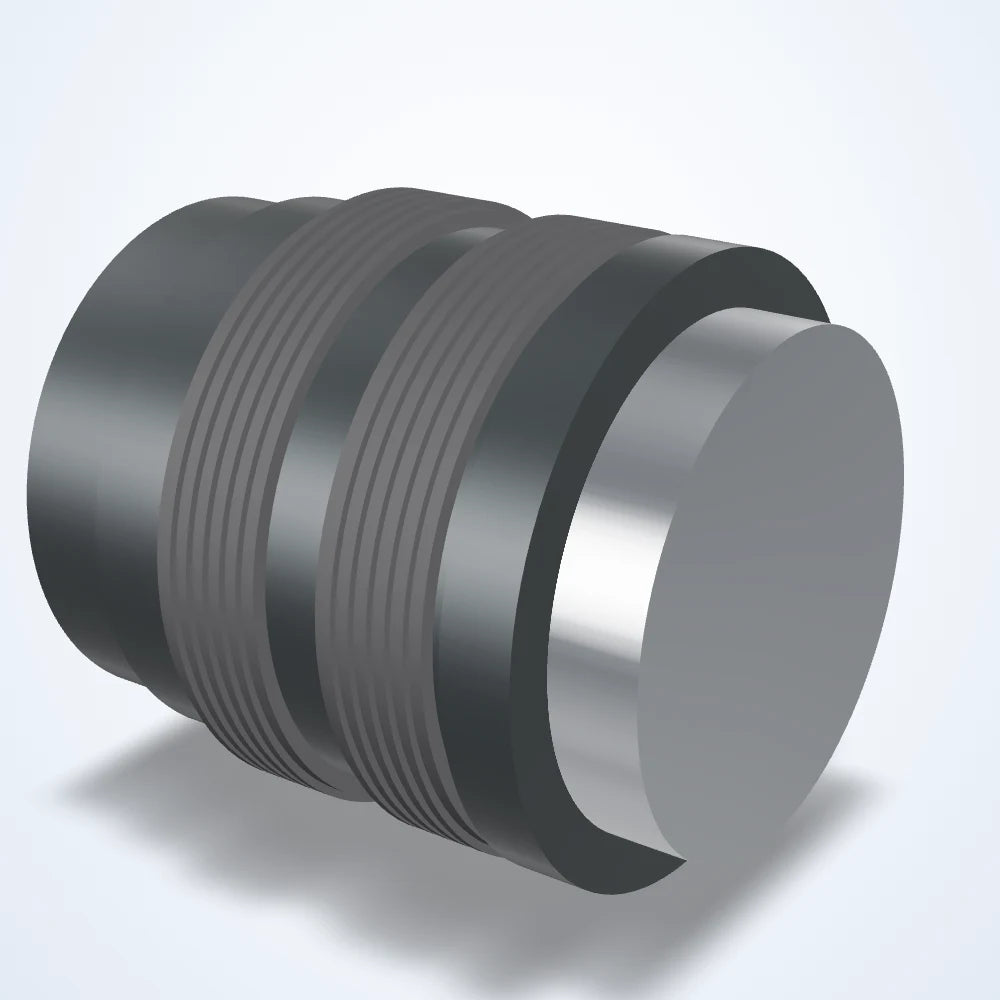

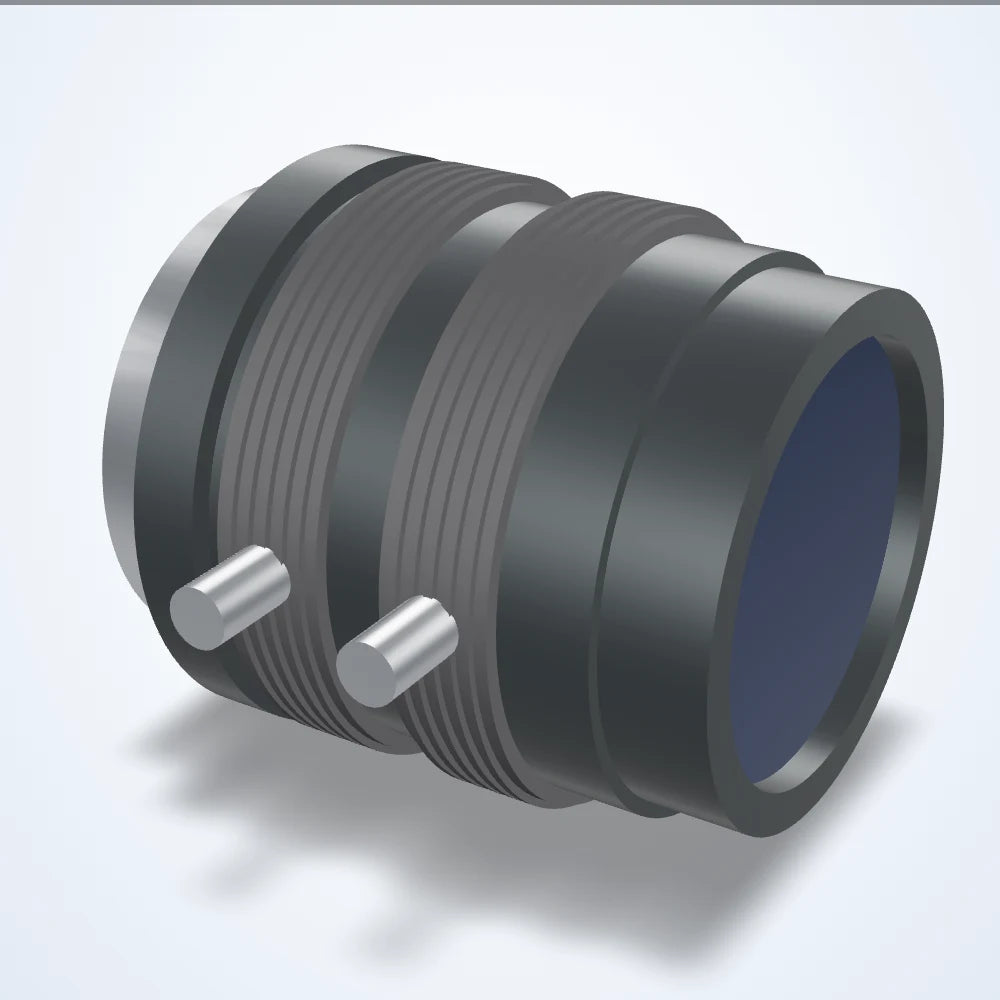

Rendered illustration: the actual product may differ in appearance.
Machine vision lenses
3.5 mm lens, 1/1.8", C-mount, F1.4-16 (LS-FFL-0195)
Model LS-FFL-0195
- Focal length3.5 mm
- MountC-mount
- Sensor1/1.8"
- Aperture1.4-16
- ResolutionCenter 100lp/mm, corner 40lp/mm
$149.00
Quoted price: add to quote for lead time and volume pricing.
Lead time confirmed with your quote
Collect parts in your quote list; we reply with price, lead time and volume pricing.
Machine vision lens for industrial cameras.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-FFL-0195 |
|---|---|
| Angle of view | H 117.7 x V 86.7 deg (D 152.7 deg) |
| Angle of view @ 1/1.8″ | 117.7° × 86.7° |
| Angle of view @ 1/2″ | 103.6° × 76.7° |
| Angle of view @ 1/3″ | 76.7° × 57.7° |
| Entrance pupil position | 7.3 (ENT.P.) |
| Exit pupil | -71.9mm |
| Flange back | 17.526mm in air |
| Front / rear effective dia. | Front 19.6mm / Rear 10.4mm |
| Lens type | Fixed Focal Length |
| Minimum object distance (m) | 0.2 |
| Shooting range at mod | 679.9(H)×389.3(V) |
| Spectrum | Visible |
| Thumb screw | M2 |
Optics
| Focal length | 3.5 mm |
|---|---|
| Aperture (F) | 1.4-16 |
| Distortion | -28.0% (TV) |
| Back focus | 8.9mm in air |
| Filter screw size | ----- (none) |
| Focus control | Manual |
| Focus range | 0.2 m - ∞ |
| Image circle | 9 mm |
| Image size dimensions | 7.2 mm x 5.4 mm |
| Iris control | Manual |
Sensor and imaging
| Max. sensor format | 1/1.8" |
|---|---|
| Resolution center/corner | Center 100lp/mm, corner 40lp/mm |
Environment and compliance
| Operating temperature range | -10 to +50 °C |
|---|---|
| Storage temperature range | -20~+60 C |

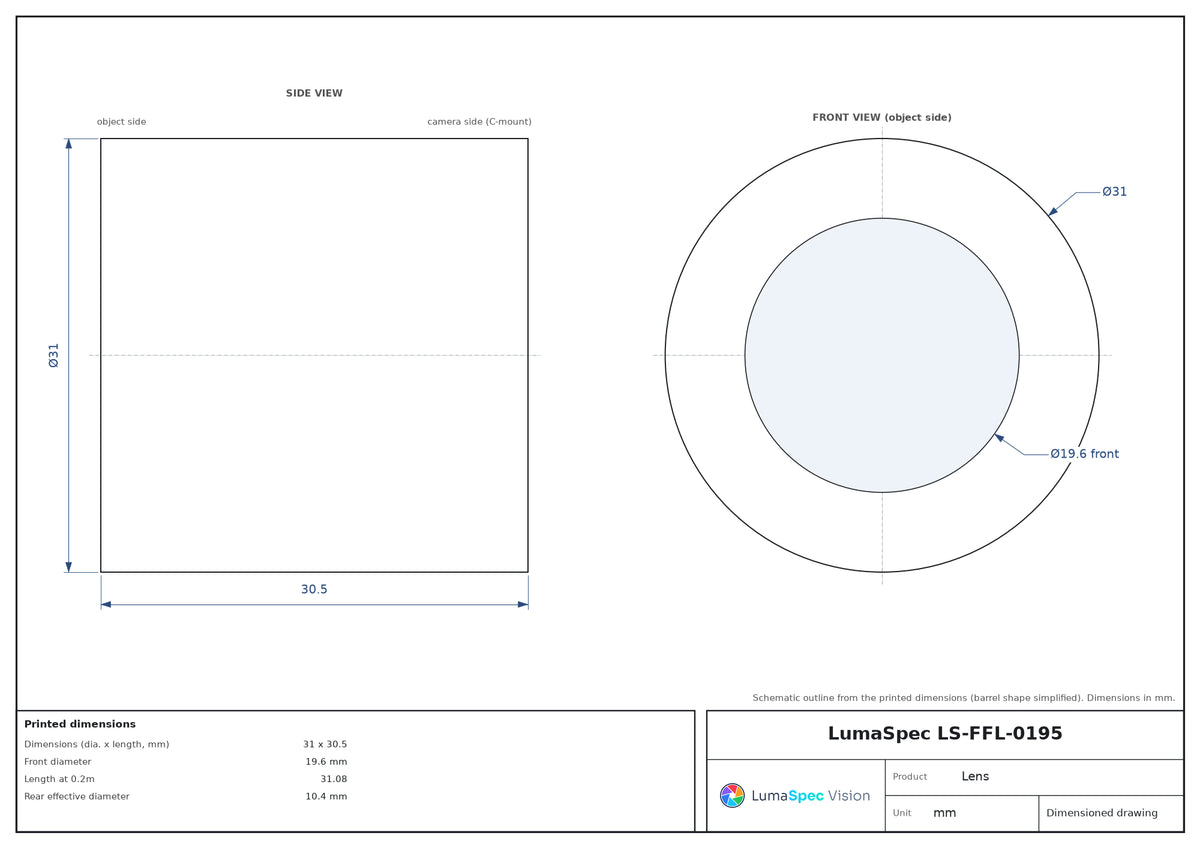

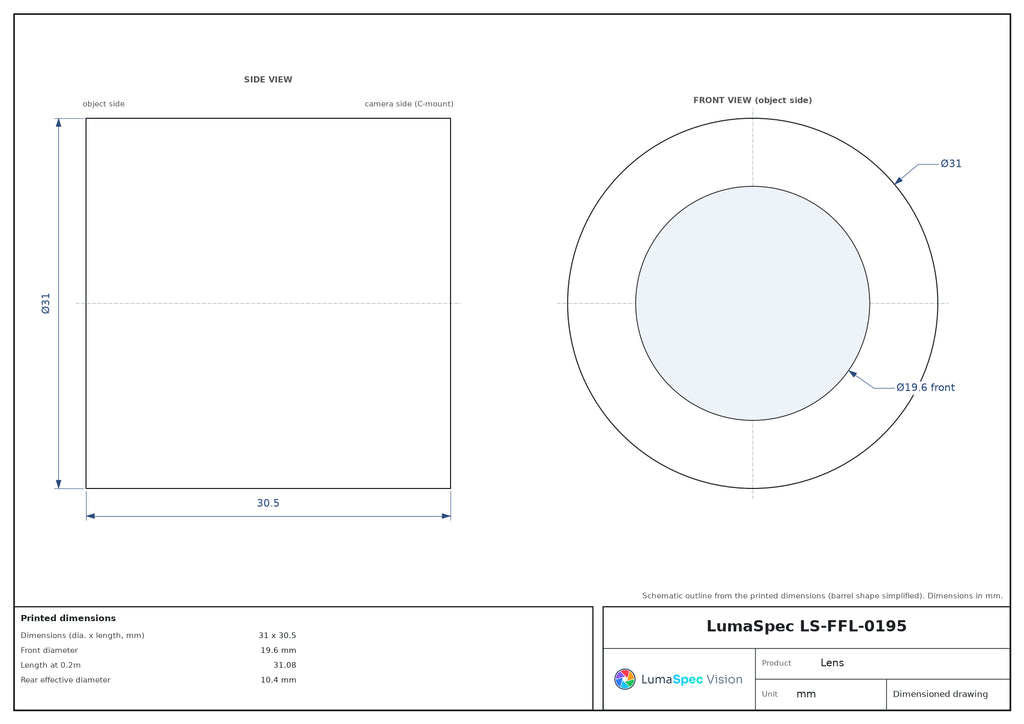

Mechanical
| Mount | C-mount |
|---|---|
| Dimensions (dia. x length, mm) | 31 x 30.5 |
| Front diameter | 19.6 mm |
| Length at 0.2m | 31.08 |
| Picture size (largest format) | 5.4x7.2mm |
| Weight (g) | 60 |
