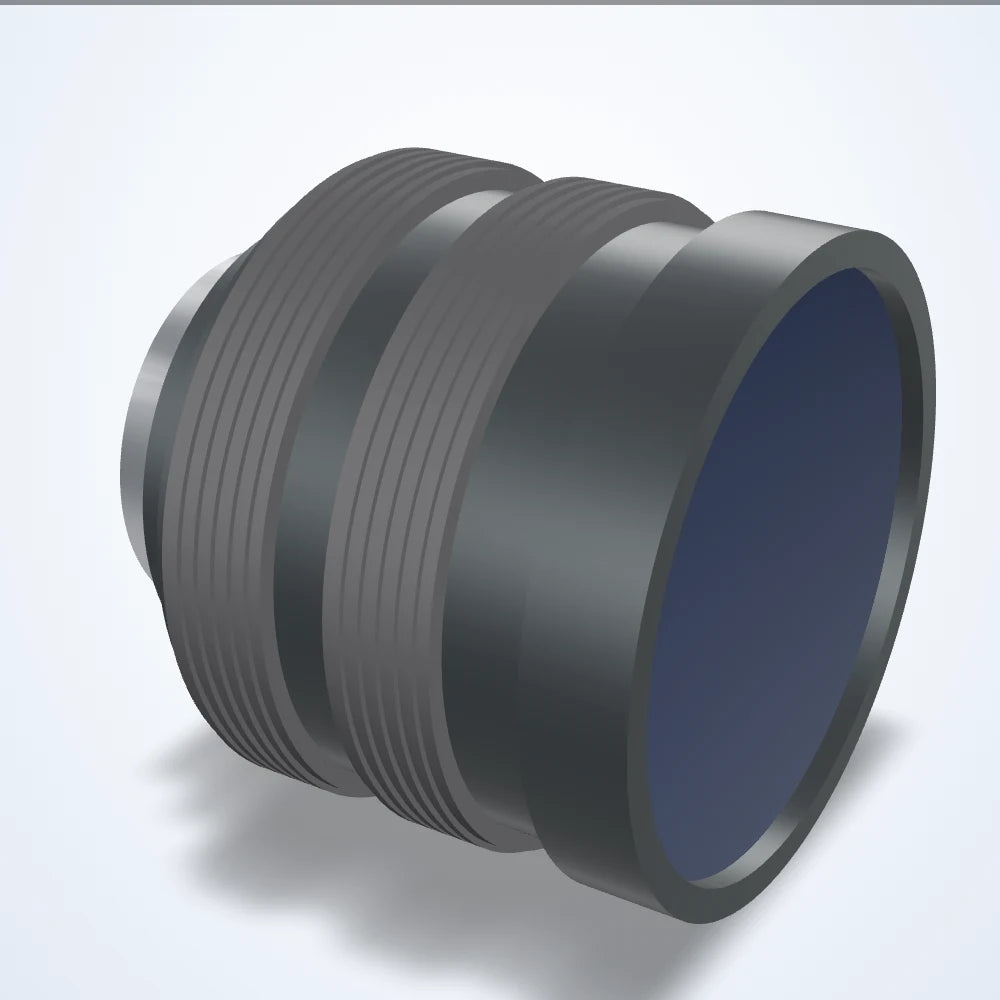

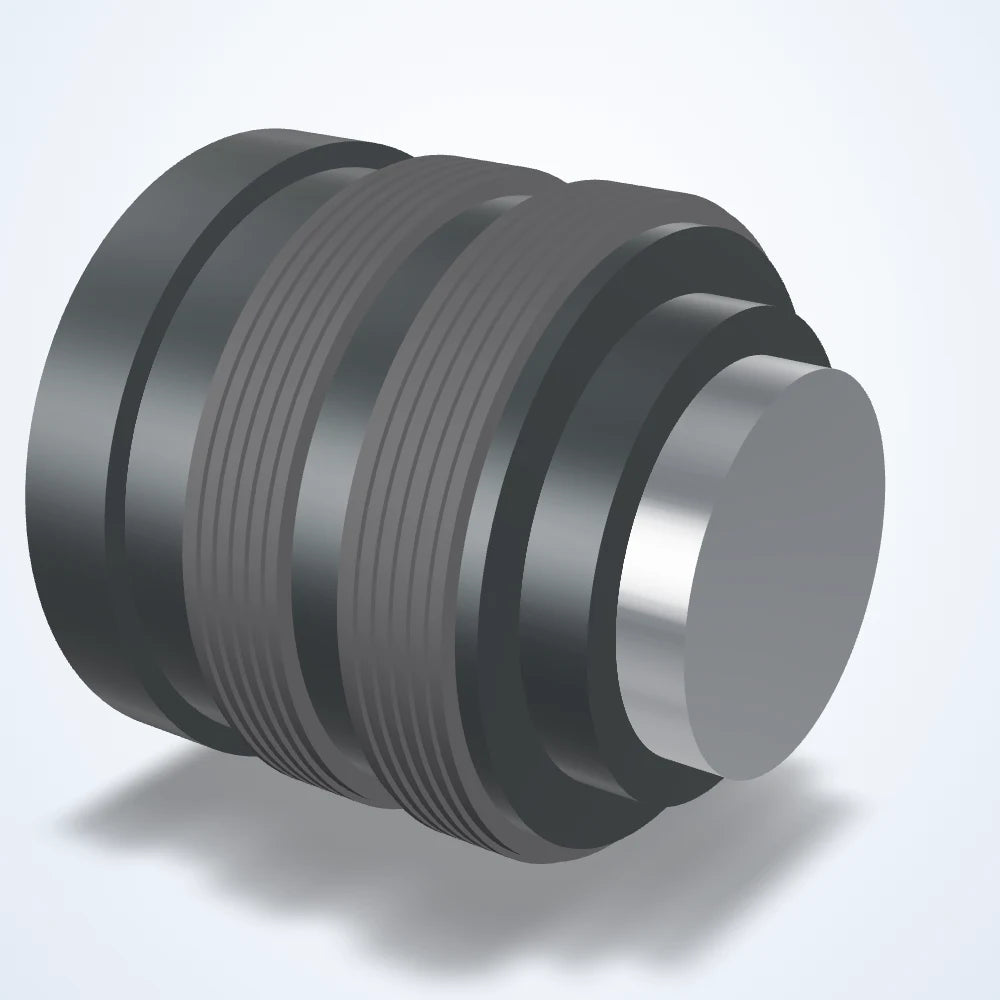

Rendered illustration: the actual product may differ in appearance.
Machine vision lenses
3.5 mm lens, 1/1.8", C-mount, F2.4, 4, 5.6, 8 (LS-FFL-0193)
Model LS-FFL-0193
- Focal length3.5 mm
- MountC-mount
- Sensor1/1.8"
- Aperture2.4, 4, 5.6, 8
- ResolutionCenter 100lp/mm, corner 80lp/mm
$739.00
Quoted price: add to quote for lead time and volume pricing.
Lead time confirmed with your quote
Collect parts in your quote list; we reply with price, lead time and volume pricing.
Machine vision lens for industrial cameras.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-FFL-0193 |
|---|---|
| Angle of view | H 89.0 x V 73.8 deg (D 101.7 deg) |
| Angle of view @ 1/1.8″ | 89.0° × 73.8° |
| Angle of view @ 1/2″ | 82.4° × 66.9° |
| Exit pupil | -34.7mm |
| Flange back | 17.526mm in air |
| Front / rear effective dia. | Front 28.0mm / Rear 10.0mm |
| Lens type | Fixed Focal Length |
| Lock ring | Red |
| Minimum object distance (m) | 0.1 |
| Shooting range at mod | 226.3(H)×171.4(V) |
| Spectrum | Visible |
Optics
| Focal length | 3.5 mm |
|---|---|
| Aperture (F) | 2.4, 4, 5.6, 8 |
| Distortion | 0.4% (TV) |
| Back focus | 10.0mm in air |
| Filter thread | M40.5x0.5 |
| Focus control | Manual |
| Focus range | 0.1 m - ∞ |
| Image circle | 9 mm |
| Image size dimensions | 7.2 mm x 5.4 mm |
| Iris control | Manual |
Sensor and imaging
| Max. sensor format | 1/1.8" |
|---|---|
| Resolution center/corner | Center 100lp/mm, corner 80lp/mm |
Environment and compliance
| Operating temperature range | -10 to +50 °C |
|---|---|
| Storage temperature range | -20~+60 C |

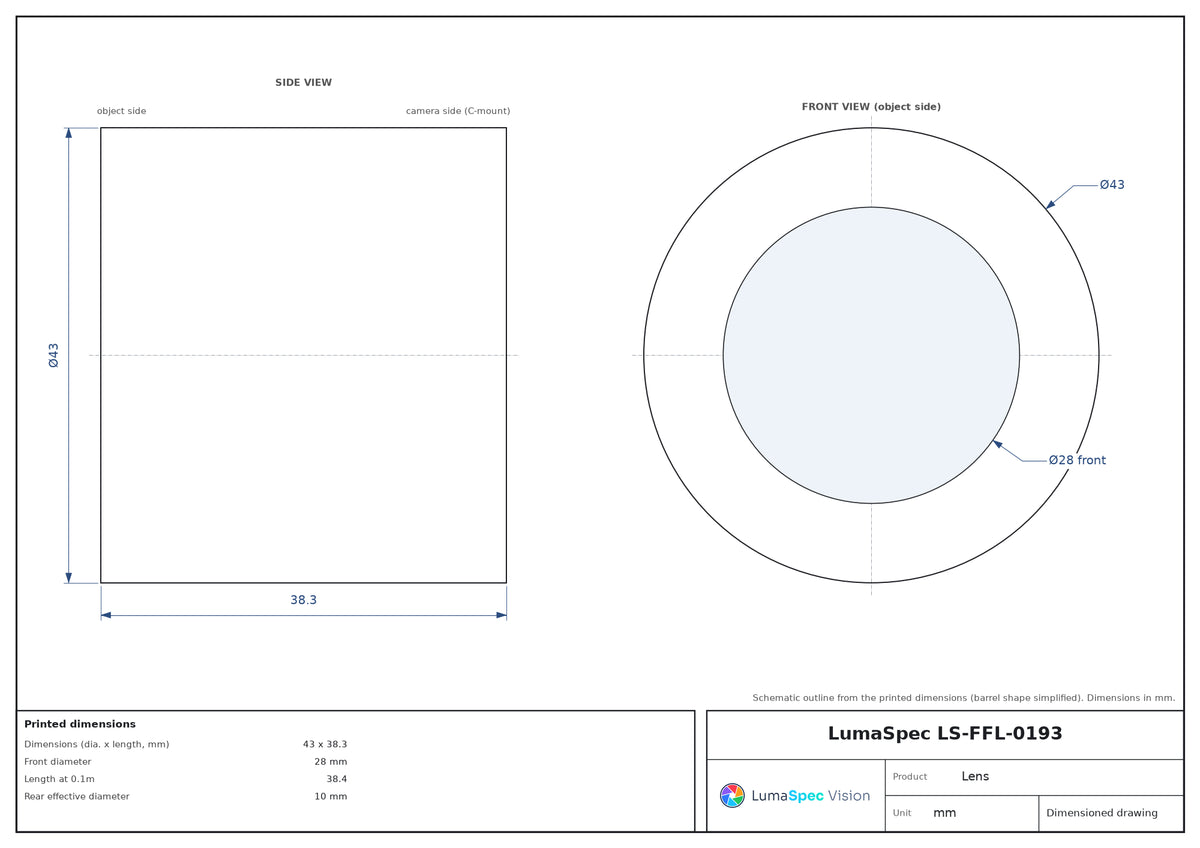

Mechanical
| Mount | C-mount |
|---|---|
| Dimensions (dia. x length, mm) | 43 x 38.3 |
| Front diameter | 28 mm |
| Length at 0.1m | 38.4 |
| Picture size (largest format) | 5.4x7.2mm |
| Weight (g) | 80 |
