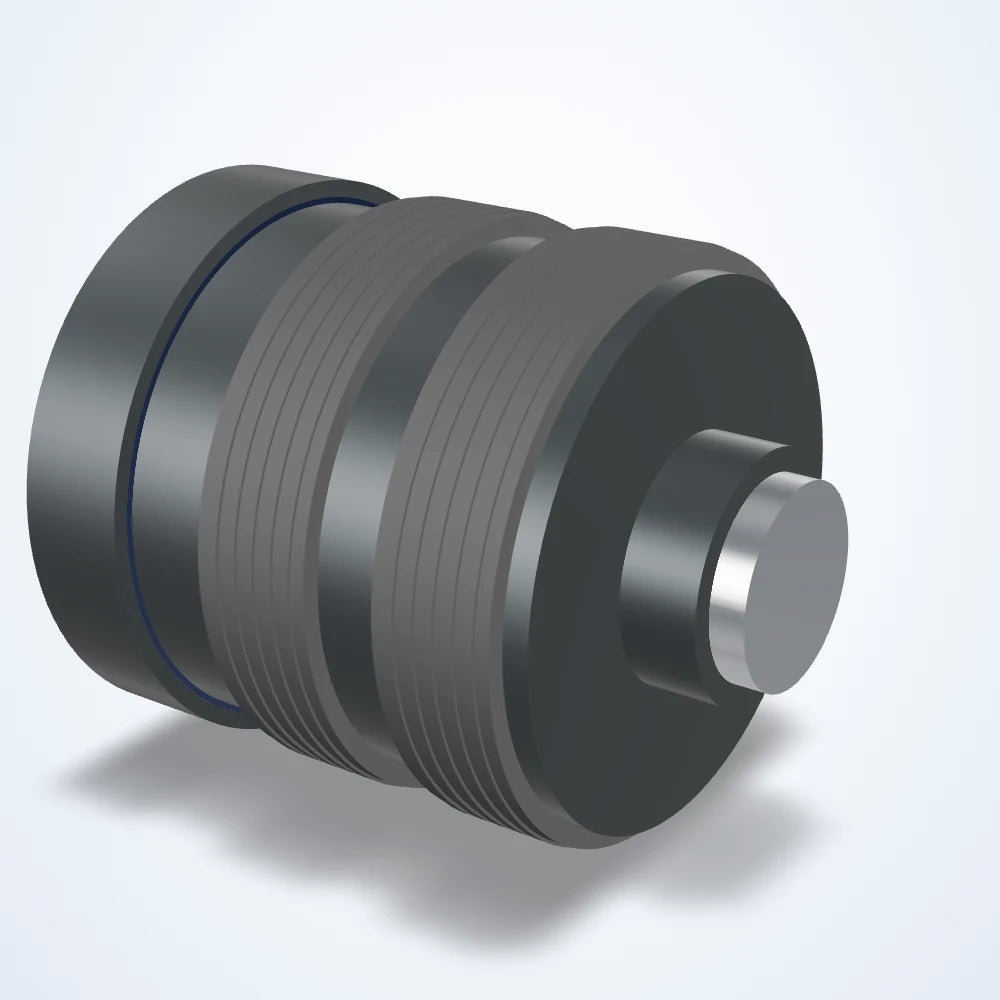

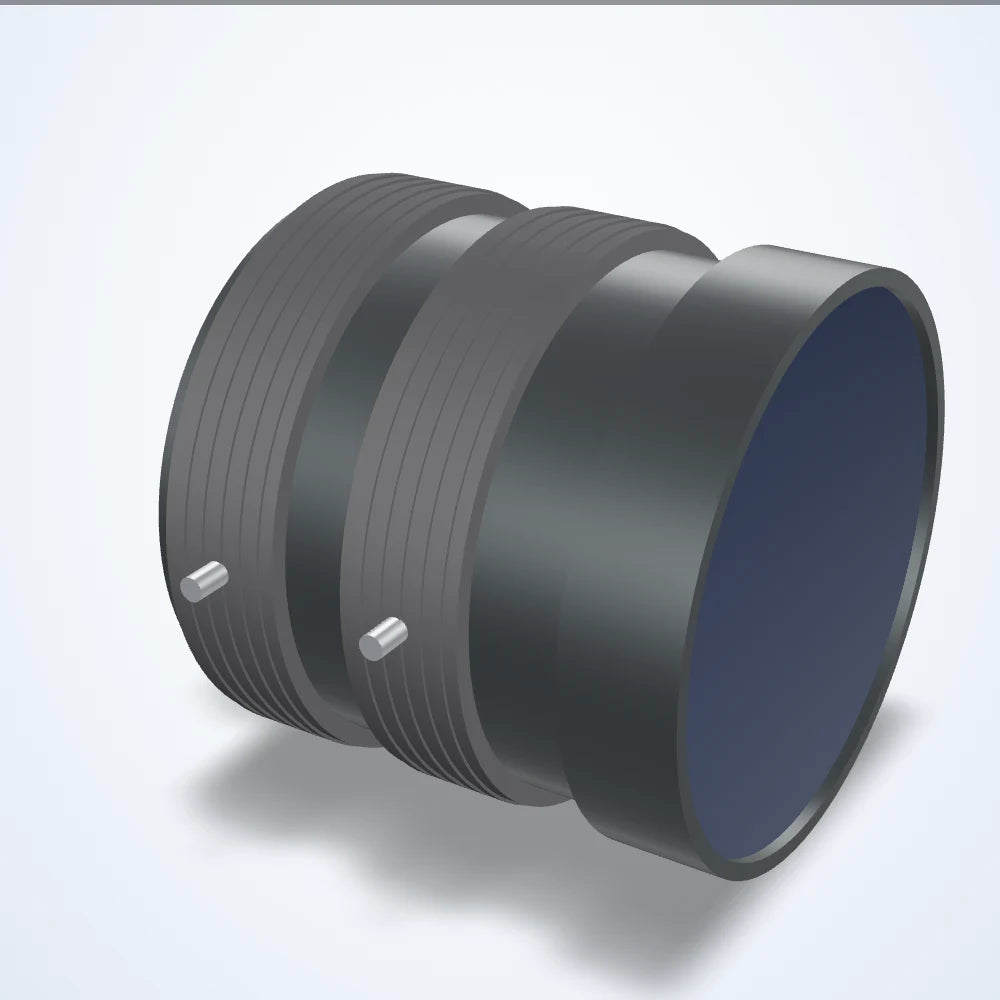

Rendered illustration: the actual product may differ in appearance.
Machine vision lenses
8.5 mm lens, 4/3", C-mount (LS-FFL-0233)
Model LS-FFL-0233
- Focal length8.5 mm
- Magnification0.19×
- MountC-mount
- Sensor4/3"
- Aperture2.8-22
$1,329.00
Quoted price: add to quote for lead time and volume pricing.
Lead time confirmed with your quote
Collect parts in your quote list; we reply with price, lead time and volume pricing.
Machine vision lens for industrial cameras.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-FFL-0233 |
|---|---|
| Angle of view | 93.5 x 77.1 deg (D 106.0 deg) |
| Angle of view @ 1.1″ | 78.2° × 62.7° |
| Angle of view @ 1″ | 72.9° × 57.9° |
| Angle of view @ 2/3″ | 53.8° × 41.6° |
| Angle of view @ 4/3″ | 93.5° × 77.1° |
| Element | 14 groups 17 elements |
| Entrance pupil (e.p.) | 20mm |
| Exit pupil | -75.2mm |
| Flange back | 17.526mm in air |
| Front / rear effective dia. | Front 45.5mm / Rear 16.5mm |
| Lens coating | Wide band multi coating |
| Lens type | Fixed Focal Length |
| Minimum object distance (m) | 0.1 |
| Minimum object distance with 1mm ring | 30 mm |
| Rear dia. | 39mm |
| Shooting range at mod (4/3") | V 179.1mm / H 238.4mm / D 297.3mm |
| Spectrum | Visible |
| Thumb screw | M2 |
Optics
| Focal length | 8.5 mm |
|---|---|
| Aperture (F) | 2.8-22 |
| Distortion | 0.12% (TV, WD=300mm) |
| Back focus | 12.9mm in air |
| Filter thread | M72x0.75 |
| Focus control | Manual |
| Focus range | 0.1 m - ∞ |
| Image circle | 23 mm |
| Image size dimensions | 18.4 mm x 13.8 mm |
| Iris control | Manual |
| Magnification with 1mm ring | 0.19× |
Sensor and imaging
| Max. sensor format | 4/3" |
|---|---|
| Resolution center/corner | Center 160 lines/mm / Corner 63 lines/mm |
Environment and compliance
| Operating temperature range | -10 to +50 °C |
|---|---|
| Storage temperature range | -20~+60 C |
Mechanical
| Mount | C-mount |
|---|---|

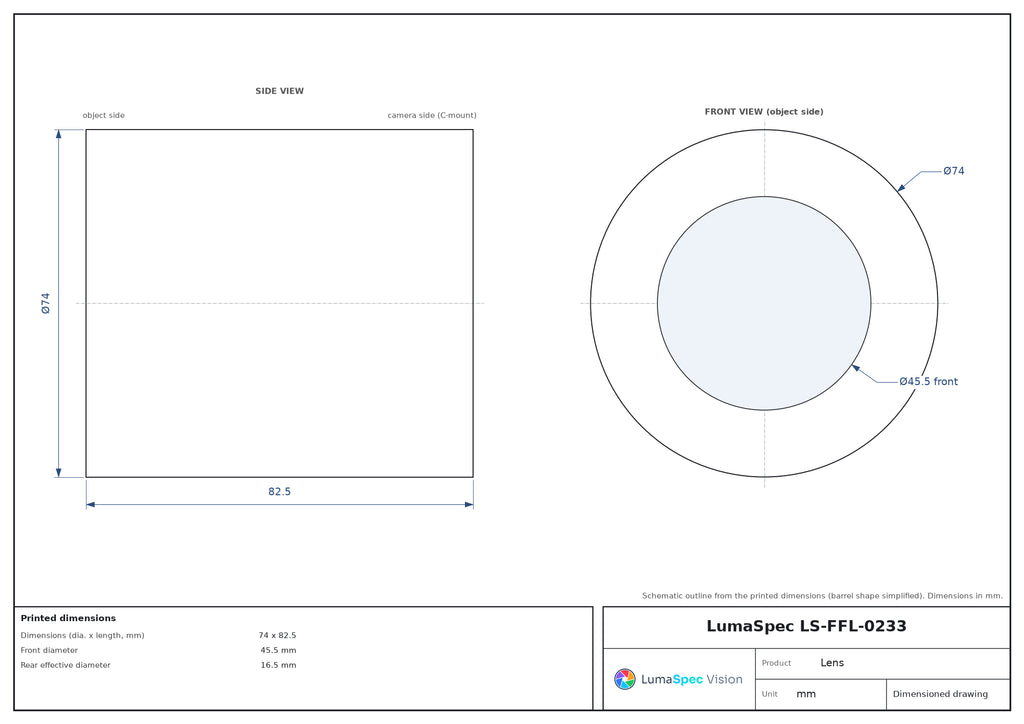

| Dimensions (dia. x length, mm) | 74 x 82.5 |
| Front diameter | 45.5 mm |
| Picture size (4/3") | 13.8x18.4mm |
| Weight (g) | 245 |
