Rendered illustration: the actual product may differ in appearance.
Machine vision lenses
16 mm lens, 4/3", C-mount (LS-FFL-0155)
Model LS-FFL-0155
- Focal length16 mm
- Magnification0.2×
- MountC-mount
- Sensor4/3"
- Aperture2.0-22
$1,269.00
Quoted price: add to quote for lead time and volume pricing.
Lead time confirmed with your quote
Collect parts in your quote list; we reply with price, lead time and volume pricing.
Machine vision lens for industrial cameras.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-FFL-0155 |
|---|---|
| Angle of view | 60.6 x 47.2 deg (H x V), 72.0 deg diagonal |
| Angle of view @ 1.1″ | 48.0° × 36.8° |
| Angle of view @ 1″ | 44.0° × 33.6° |
| Angle of view @ 2/3″ | 30.9° × 23.3° |
| Angle of view @ 4/3″ | 60.6° × 47.2° |
| Element | 9 groups 11 elements |
| Entrance pupil position | 22.8 mm from front |
| Exit pupil | -38.0mm |
| Flange back | 17.526mm in air |
| Front / rear effective dia. | Front 31.2mm / Rear 16.5mm |
| Lens coating | Wide band multi coating |
| Lens type | Fixed Focal Length |
| Minimum object distance (m) | 0.1 |
| Minimum object distance with 1mm ring | 64 mm |
| Minimum object distance with 5mm ring | 21 mm |
| Shooting range at mod (4/3") | V 100.8mm, H 134.6mm, D 167.6mm |
| Spectrum | Visible |
| Thumb screw | M2 |
Optics
| Focal length | 16 mm |
|---|---|
| Aperture (F) | 2.0-22 |
| Distortion | 0.02% (TV) |
| Back focus | 13.0mm in air |
| Filter thread | M40.5x0.5 |
| Focus control | Manual |
| Focus range | 0.1 m - ∞ |
| Image circle | 23 mm |
| Image size dimensions | 18.4 mm x 13.8 mm |
| Iris control | Manual |
| Magnification with 1mm ring | 0.2× |
| Magnification with 5mm ring | 0.46× |
Sensor and imaging
| Max. sensor format | 4/3" |
|---|---|
| Resolution center/corner | Center 160 lines/mm / Corner 80 lines/mm |
Environment and compliance
| Operating temperature range | -10 to +50 °C |
|---|---|
| Storage temperature range | -20~+60 C |
Mechanical
| Mount | C-mount |
|---|---|

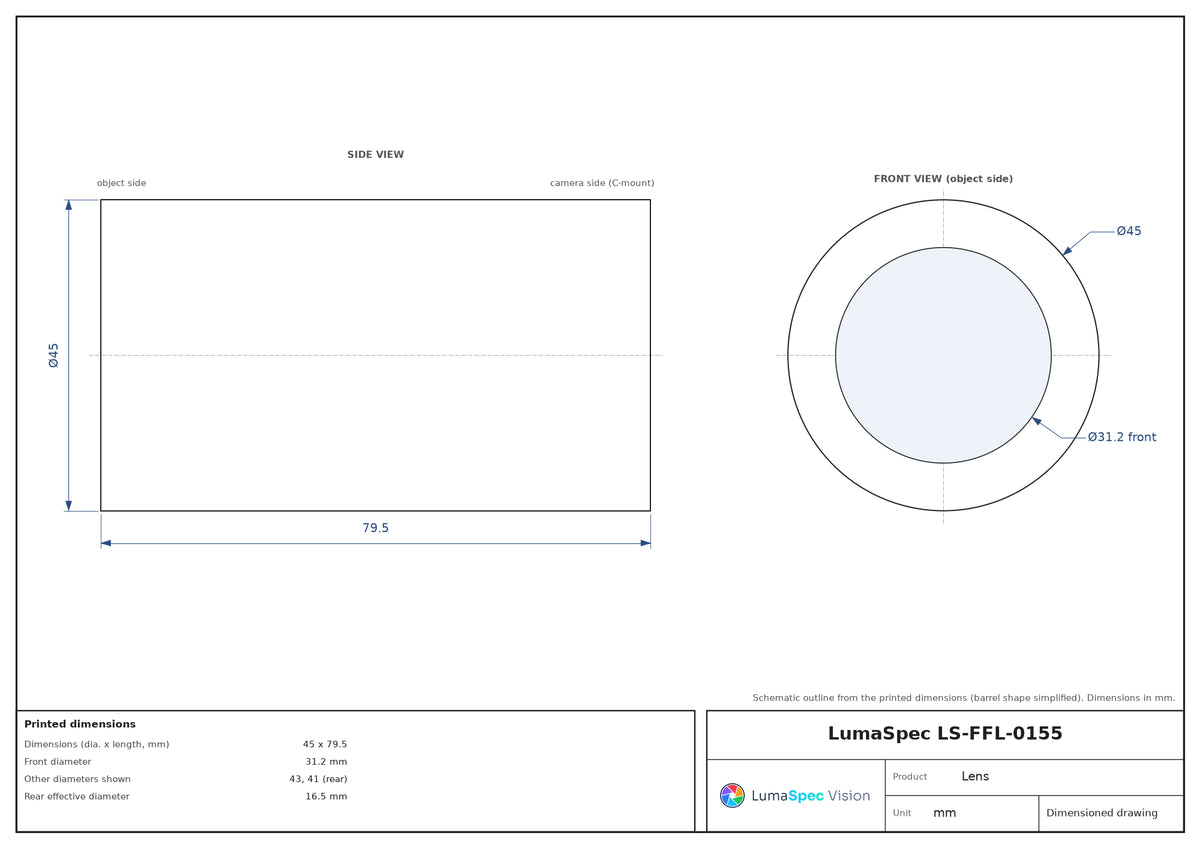

| Dimensions (dia. x length, mm) | 45 x 79.5 |
| Front diameter | 31.2 mm |
| Mount thread | 1-32UNF |
| Weight (g) | 250 |
