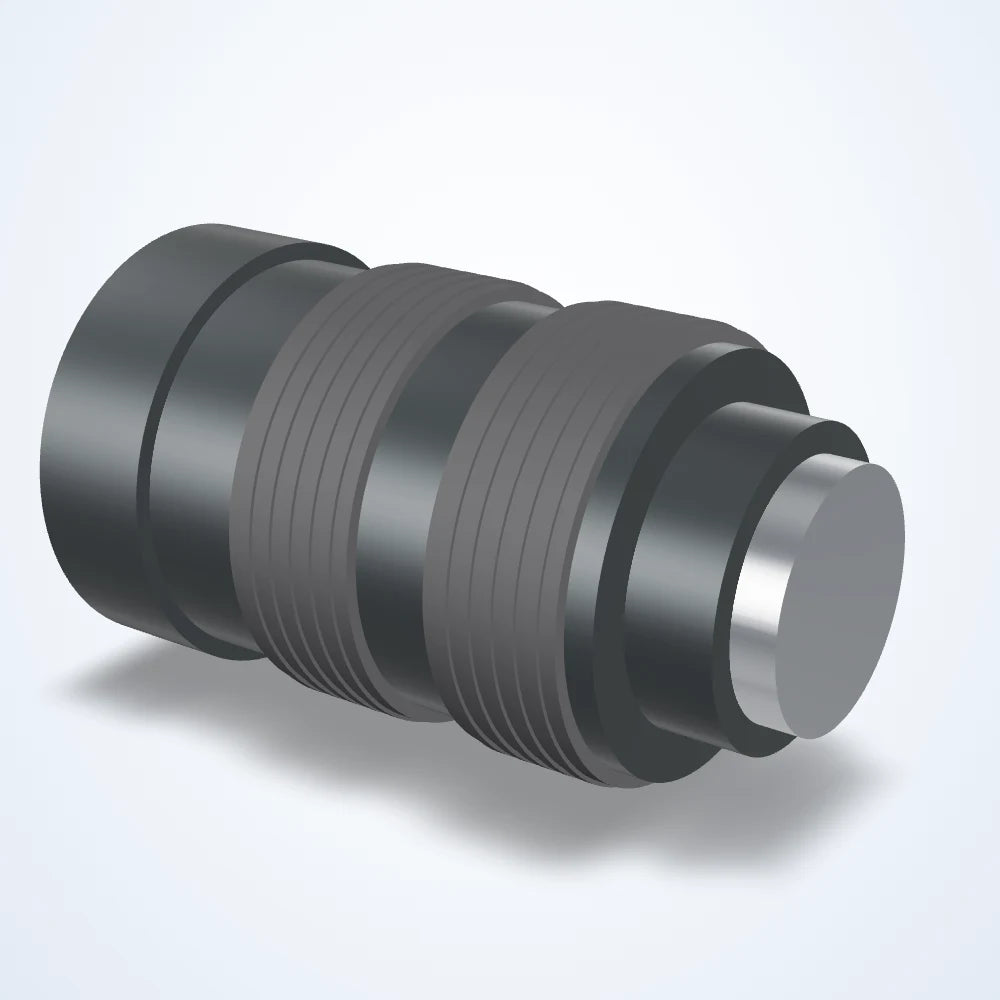

Rendered illustration: the actual product may differ in appearance.
Machine vision lenses
35 mm lens, 4/3", C-mount (LS-FFL-0192)
Model LS-FFL-0192
- Focal length35 mm
- Magnification0.48×
- MountC-mount
- Sensor4/3"
- Aperture2.0-16
- ResolutionCenter 160/mm, corner 80/mm
$1,119.00
Quoted price: add to quote for lead time and volume pricing.
Lead time confirmed with your quote
Collect parts in your quote list; we reply with price, lead time and volume pricing.
Machine vision lens for industrial cameras.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-FFL-0192 |
|---|---|
| Angle of view | H 29.6 x V 22.4 deg (D 36.6 deg) |
| Angle of view @ 1.1″ | 22.8° × 17.2° |
| Angle of view @ 1″ | 20.8° × 15.6° |
| Angle of view @ 2/3″ | 14.3° × 10.8° |
| Angle of view @ 4/3″ | 29.6° × 22.4° |
| Element | 6 groups 8 elements |
| Entrance pupil position | 30 (E.P.) |
| Exit pupil | -39.2mm |
| Flange back | 17.526mm in air |
| Front / rear effective dia. | Front 26.5mm / Rear 16.9mm |
| Lens coating | Wide band multi coating |
| Lens type | Fixed Focal Length |
| Minimum object distance (m) | 0.2 |
| Minimum object distance with 10mm ring | 85 mm |
| Minimum object distance with 1mm ring | 174 mm |
| Minimum object distance with 20mm ring | 58 mm |
| Minimum object distance with 5mm ring | 117 mm |
| Shooting range at mod | 100.3(H)×75.3(V) |
| Spectrum | Visible |
| Thumb screw | M2 |
Optics
| Focal length | 35 mm |
|---|---|
| Aperture (F) | 2.0-16 |
| Distortion | -0.17% (TV) |
| Back focus | 15.2mm in air |
| Filter thread | M37.5x0.5 |
| Focus control | Manual |
| Focus range | 0.2 m - ∞ |
| Image circle | 23 mm |
| Image size dimensions | 18.4 mm x 13.8 mm |
| Iris control | Manual |
| Magnification with 10mm ring | 0.48× |
| Magnification with 1mm ring | 0.21× |
| Magnification with 20mm ring | 0.77× |
| Magnification with 5mm ring | 0.33× |
Sensor and imaging
| Max. sensor format | 4/3" |
|---|---|
| Resolution center/corner | Center 160/mm, corner 80/mm |
Environment and compliance
| Operating temperature range | -10 to +50 °C |
|---|---|
| Storage temperature range | -20~+60 C |
Mechanical
| Mount | C-mount |
|---|---|

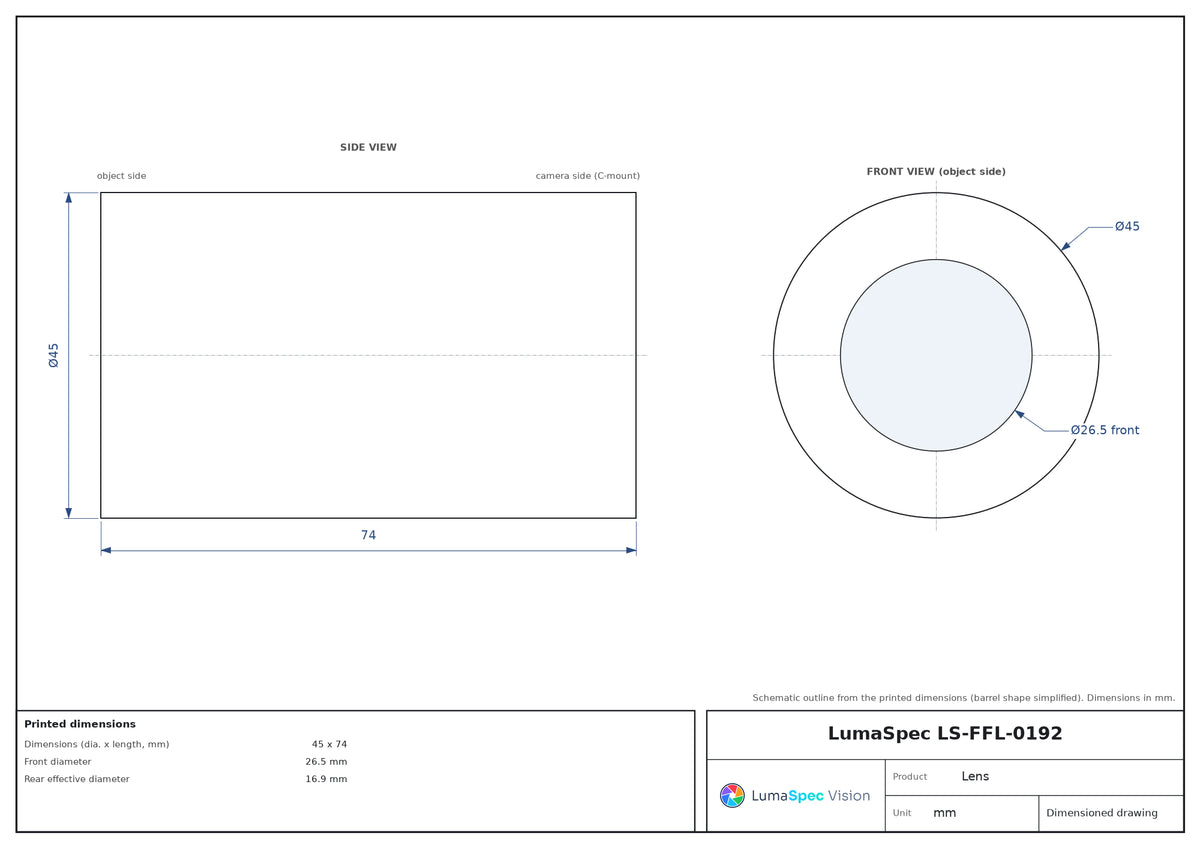

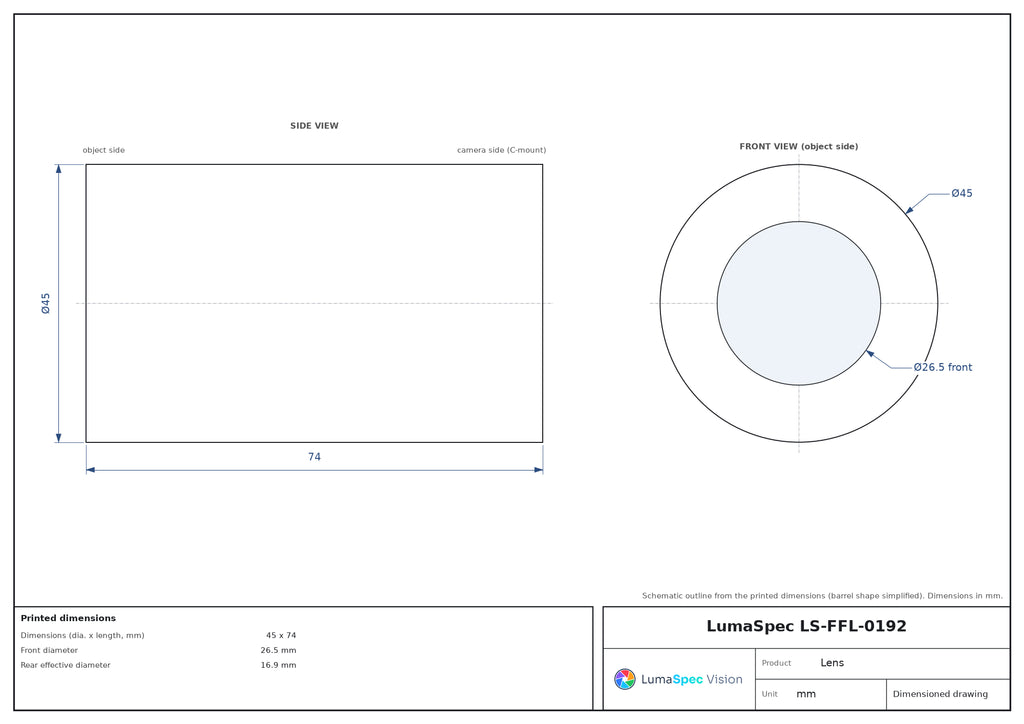

| Dimensions (dia. x length, mm) | 45 x 74 |
| Front diameter | 26.5 mm |
| Picture size (largest format) | 13.8x18.4mm |
| Weight (g) | 210 |
