16 mm lens, 1/1.7", C-mount
LS-FFL-0279
- Focal length 16 mm
- Mount C-mount
- Sensor 1/1.7"
$379.00Quote
Lead time confirmed with your quote
Lenses
C-mount machine vision lenses
Choose the lens beyond its mountChoose a C-mount lens for an industrial camera by sensor coverage, field of view and working distance. These catalog entries are explicitly classified as C-mount; CS-mount and other lens interfaces are separate choices.
Products
8 mm lens, 1/1.7", C-mount
LS-FFL-0277
- Focal length 8 mm
- Mount C-mount
- Sensor 1/1.7"
$339.00Quote
Lead time confirmed with your quote
6 mm lens, 1/1.2", C-mount
LS-FFL-0268
- Focal length 6 mm
- Mount C-mount
- Sensor 1/1.2"
$759.00Quote
Lead time confirmed with your quote
8 mm lens, 1/1.2", C-mount
LS-FFL-0269
- Focal length 8 mm
- Mount C-mount
- Sensor 1/1.2"
$389.00Quote
Lead time confirmed with your quote
50 mm lens, 1/1.2", C-mount
LS-FFL-0274
- Focal length 50 mm
- Mount C-mount
- Sensor 1/1.2"
$339.00Quote
Lead time confirmed with your quote
25 mm lens, 1/1.2", C-mount
LS-FFL-0272
- Focal length 25 mm
- Mount C-mount
- Sensor 1/1.2"
$339.00Quote
Lead time confirmed with your quote

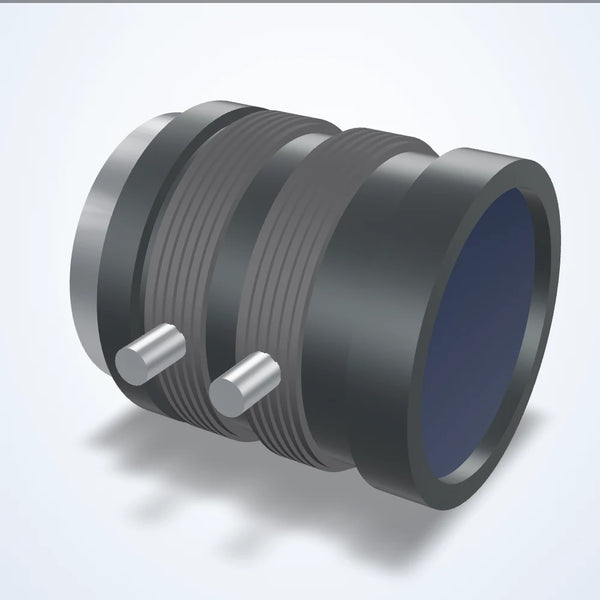

16 mm lens, 1/1.2", C-mount
LS-FFL-0271
- Focal length 16 mm
- Mount C-mount
- Sensor 1/1.2"
$339.00Quote
Lead time confirmed with your quote
12 mm lens, 1/1.2", C-mount
LS-FFL-0270
- Focal length 12 mm
- Mount C-mount
- Sensor 1/1.2"
$339.00Quote
Lead time confirmed with your quote
75 mm lens, 1/1.2", C-mount
LS-FFL-0275
- Focal length 75 mm
- Mount C-mount
- Sensor 1/1.2"
$329.00Quote
Lead time confirmed with your quote
35 mm lens, 1/1.2", C-mount
LS-FFL-0273
- Focal length 35 mm
- Mount C-mount
- Sensor 1/1.2"
$319.00Quote
Lead time confirmed with your quote

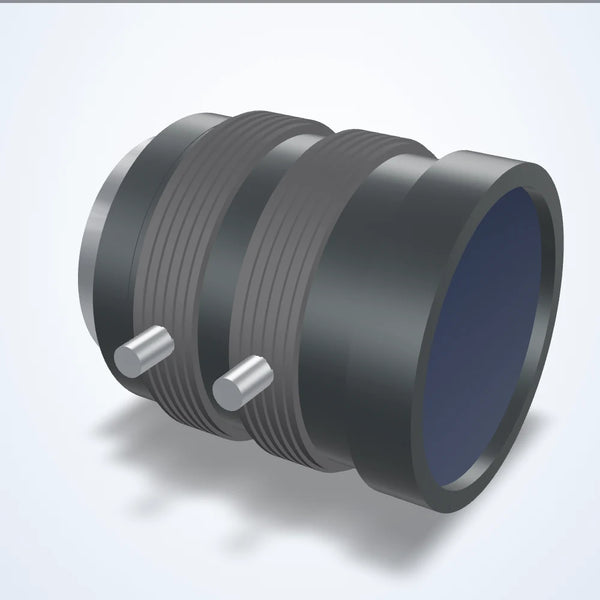

16 mm lens, 2/3", C-mount, dimensions 34 x 35.9
LS-FFL-0262
- Focal length 16 mm
- Mount C-mount
- Sensor 2/3"
$229.00Quote
Lead time confirmed with your quote
50 mm lens, 2/3", C-mount, F2.8-32
LS-FFL-0266
- Focal length 50 mm
- Mount C-mount
- Sensor 2/3"
$219.00Quote
Lead time confirmed with your quote

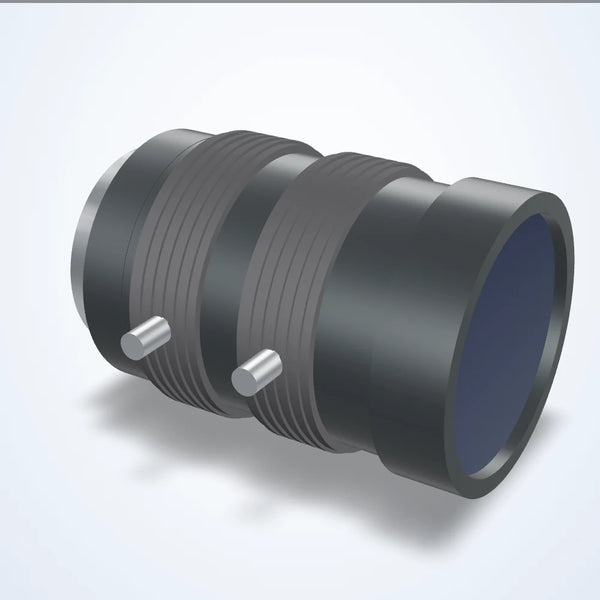

25 mm lens, 2/3", C-mount, Visible, dimensions 34 x 47.1
LS-FFL-0264
- Focal length 25 mm
- Mount C-mount
- Sensor 2/3"
$219.00Quote
Lead time confirmed with your quote
12 mm lens, 2/3", C-mount, front diameter 11.7 mm, dimensions 29 x 27
LS-FFL-0258
- Focal length 12 mm
- Mount C-mount
- Sensor 2/3"
$189.00Quote
Lead time confirmed with your quote

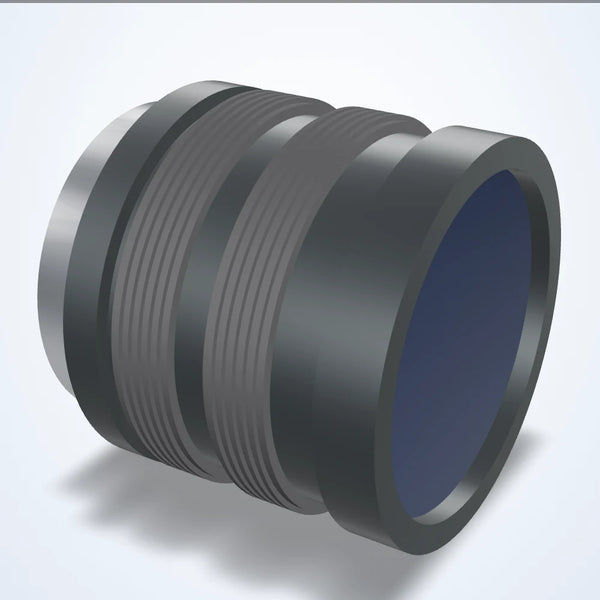

16 mm lens, 2/3", C-mount, 11.5 mm dia., dimensions 30 x 25
LS-FFL-0260
- Focal length 16 mm
- Mount C-mount
- Sensor 2/3"
$159.00Quote
Lead time confirmed with your quote
75 mm lens, 2/3", C-mount, front diameter 18.4 mm
LS-FFL-0267
- Focal length 75 mm
- Mount C-mount
- Sensor 2/3"
$209.00Quote
Lead time confirmed with your quote
12 mm lens, 2/3", C-mount, front diameter 11.7 mm, dimensions 30.5 x 27
LS-FFL-0259
- Focal length 12 mm
- Mount C-mount
- Sensor 2/3"
$209.00Quote
Lead time confirmed with your quote
8 mm lens, 2/3", C-mount, 13.7 mm dia., 1.4-16
LS-FFL-0257
- Focal length 8 mm
- Mount C-mount
- Sensor 2/3"
$209.00Quote
Lead time confirmed with your quote
35 mm lens, 2/3", C-mount, front diameter 16 mm
LS-FFL-0265
- Focal length 35 mm
- Mount C-mount
- Sensor 2/3"
$189.00Quote
Lead time confirmed with your quote
25 mm lens, 2/3", C-mount, dimensions 30.5 x 25.5
LS-FFL-0263
- Focal length 25 mm
- Mount C-mount
- Sensor 2/3"
$189.00Quote
Lead time confirmed with your quote

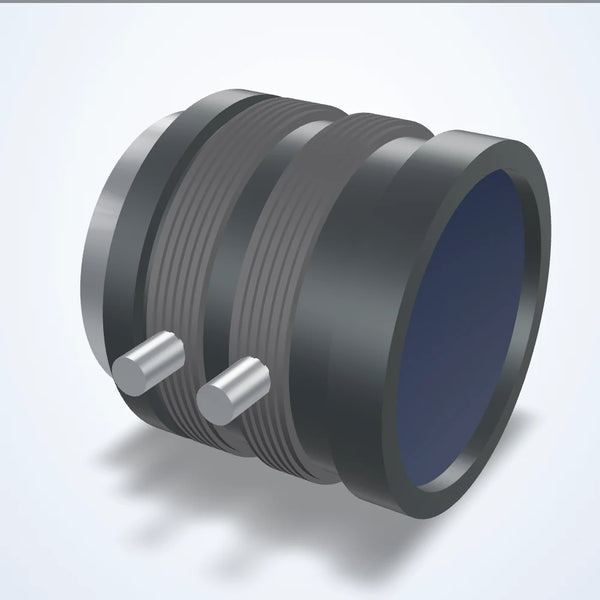

16 mm lens, 2/3", C-mount, 11.5 mm dia., dimensions 30.5 x 25
LS-FFL-0261
- Focal length 16 mm
- Mount C-mount
- Sensor 2/3"
$189.00Quote
Lead time confirmed with your quote
78 mm lens, 1", C-mount
LS-FFL-0256
- Focal length 78 mm
- Mount C-mount
- Sensor 1"
$4,089.00Quote
Lead time confirmed with your quote

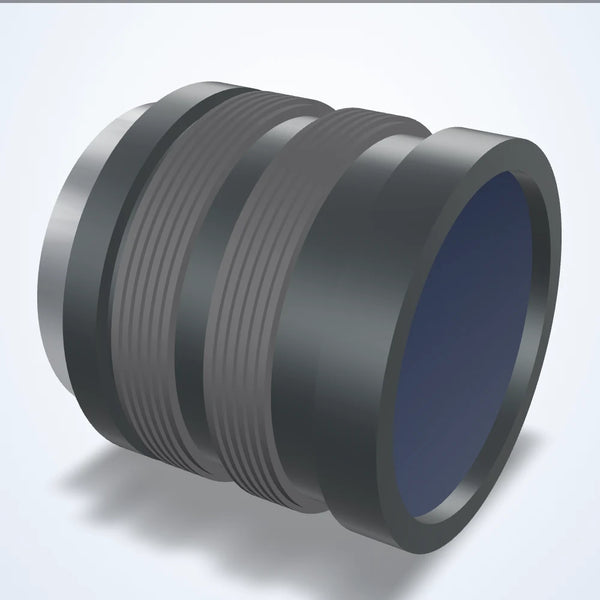

25 mm lens, 1", C-mount, FF2.8-F16 (iris scale)
LS-FFL-0255
- Focal length 25 mm
- Mount C-mount
- Sensor 1"
$1,509.00Quote
Lead time confirmed with your quote
5 mm lens, 1/2", C-mount
LS-FFL-0249
- Focal length 5 mm
- Mount C-mount
- Sensor 1/2"
$1,529.00Quote
Lead time confirmed with your quote
| Compare | |||||||||
|---|---|---|---|---|---|---|---|---|---|
 LS-FFL-027916 mm lens, 1/1.7", C-mount
| 16 mm | C-mount | 1/1.7" | F2.4-16 | 6 MP | - | $379.00Quote | Lead time confirmed with your quote | |
 LS-FFL-02778 mm lens, 1/1.7", C-mount
| 8 mm | C-mount | 1/1.7" | F2.4-16 | 6 MP | - | $339.00Quote | Lead time confirmed with your quote | |
 LS-FFL-02686 mm lens, 1/1.2", C-mount
| 6 mm | C-mount | 1/1.2" | F2.8-16 | 5 MP | - | $759.00Quote | Lead time confirmed with your quote | |
 LS-FFL-02698 mm lens, 1/1.2", C-mount
| 8 mm | C-mount | 1/1.2" | F2.4-16 | 5 MP | - | $389.00Quote | Lead time confirmed with your quote | |
 LS-FFL-027450 mm lens, 1/1.2", C-mount
| 50 mm | C-mount | 1/1.2" | F2.8-16 | 5 MP | - | $339.00Quote | Lead time confirmed with your quote | |
 LS-FFL-027225 mm lens, 1/1.2", C-mount
| 25 mm | C-mount | 1/1.2" | F1.8-16 | 5 MP | - | $339.00Quote | Lead time confirmed with your quote | |
 LS-FFL-027116 mm lens, 1/1.2", C-mount
| 16 mm | C-mount | 1/1.2" | F2.0-16 | 5 MP | - | $339.00Quote | Lead time confirmed with your quote | |
 LS-FFL-027012 mm lens, 1/1.2", C-mount
| 12 mm | C-mount | 1/1.2" | F2.0-16 | 5 MP | - | $339.00Quote | Lead time confirmed with your quote | |
 LS-FFL-027575 mm lens, 1/1.2", C-mount
| 75 mm | C-mount | 1/1.2" | F3.5-16 | 5 MP | - | $329.00Quote | Lead time confirmed with your quote | |
 LS-FFL-027335 mm lens, 1/1.2", C-mount
| 35 mm | C-mount | 1/1.2" | F2.1-16 | 5 MP | - | $319.00Quote | Lead time confirmed with your quote | |
 LS-FFL-026216 mm lens, 2/3", C-mount, dimensions 34 x 35.9
| 16 mm | C-mount | 2/3" | F1.4-22 | 3 MP | - | $229.00Quote | Lead time confirmed with your quote | |
 LS-FFL-026650 mm lens, 2/3", C-mount, F2.8-32
| 50 mm | C-mount | 2/3" | F2.8-32 | 3 MP | - | $219.00Quote | Lead time confirmed with your quote | |
 LS-FFL-026425 mm lens, 2/3", C-mount, Visible, dimensions 34 x 47.1
| 25 mm | C-mount | 2/3" | F1.4-22 | 3 MP | - | $219.00Quote | Lead time confirmed with your quote | |
 LS-FFL-025812 mm lens, 2/3", C-mount, front diameter 11.7 mm, dimensions 29 x 27
| 12 mm | C-mount | 2/3" | F1.8-16 | 1.3 MP | - | $189.00Quote | Lead time confirmed with your quote | |
 LS-FFL-026016 mm lens, 2/3", C-mount, 11.5 mm dia., dimensions 30 x 25
| 16 mm | C-mount | 2/3" | F1.4-16 | 1.3 MP | - | $159.00Quote | Lead time confirmed with your quote | |
 LS-FFL-026775 mm lens, 2/3", C-mount, front diameter 18.4 mm
| 75 mm | C-mount | 2/3" | F3.9-32 | 1.3 MP | - | $209.00Quote | Lead time confirmed with your quote | |
 LS-FFL-025912 mm lens, 2/3", C-mount, front diameter 11.7 mm, dimensions 30.5 x 27
| 12 mm | C-mount | 2/3" | F1.8-16 | 1.3 MP | - | $209.00Quote | Lead time confirmed with your quote | |
|
LS-FFL-02578 mm lens, 2/3", C-mount, 13.7 mm dia., 1.4-16
| 8 mm | C-mount | 2/3" | F1.4-16 | 1.3 MP | - | $209.00Quote | Lead time confirmed with your quote | |
 LS-FFL-026535 mm lens, 2/3", C-mount, front diameter 16 mm
| 35 mm | C-mount | 2/3" | F2.1-22 | 1.3 MP | - | $189.00Quote | Lead time confirmed with your quote | |
 LS-FFL-026325 mm lens, 2/3", C-mount, dimensions 30.5 x 25.5
| 25 mm | C-mount | 2/3" | F1.6-16 | 1.3 MP | - | $189.00Quote | Lead time confirmed with your quote | |
 LS-FFL-026116 mm lens, 2/3", C-mount, 11.5 mm dia., dimensions 30.5 x 25
| 16 mm | C-mount | 2/3" | F1.4-16 | 1.3 MP | - | $189.00Quote | Lead time confirmed with your quote | |
 LS-FFL-025678 mm lens, 1", C-mount
| 78 mm | C-mount | 1" | F3.8-F16 (iris scale) | - | - | $4,089.00Quote | Lead time confirmed with your quote | |
 LS-FFL-025525 mm lens, 1", C-mount, FF2.8-F16 (iris scale)
| 25 mm | C-mount | 1" | F2.8-F16 (iris scale) | - | - | $1,509.00Quote | Lead time confirmed with your quote | |
 LS-FFL-02495 mm lens, 1/2", C-mount
| 5 mm | C-mount | 1/2" | f/1.4 | - | 0.1 to 0.9 m | $1,529.00Quote | Lead time confirmed with your quote |
Choose the lens beyond its mount
A matching thread is the start of a lens selection. The lens must also cover the sensor and form the required field at the available working distance. Use the individual specifications to compare focal length, image circle and focus range before choosing a model.
- Match the camera mount and flange arrangement. A CS-mount camera is a different mechanical case; confirm the adapter or spacer arrangement rather than treating the two mounts as interchangeable.
- Compare the sensor diagonal with the rated image circle. A lens may attach correctly and still vignette the corners of a larger sensor.
- Set the field of view and working distance first, then check focal length, aperture, resolution and the clearance needed for connectors and mounting.
