Machine vision lenses

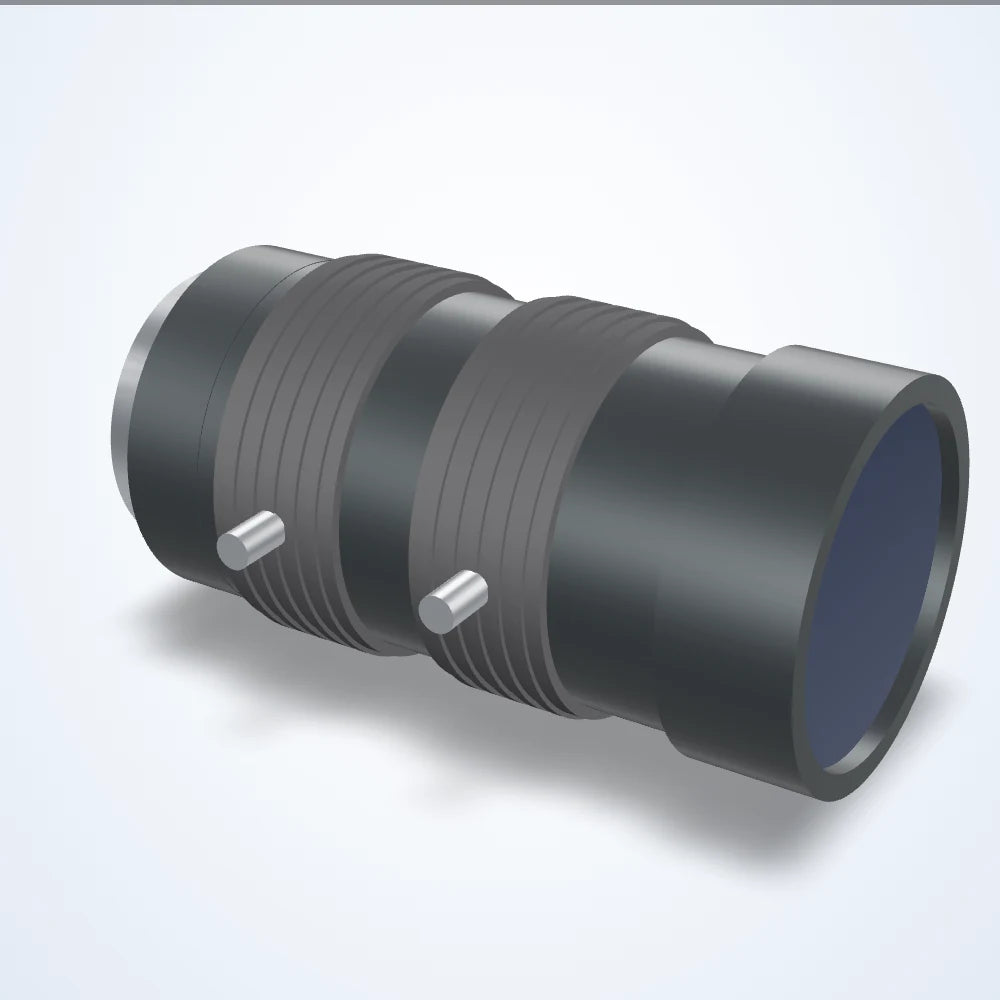

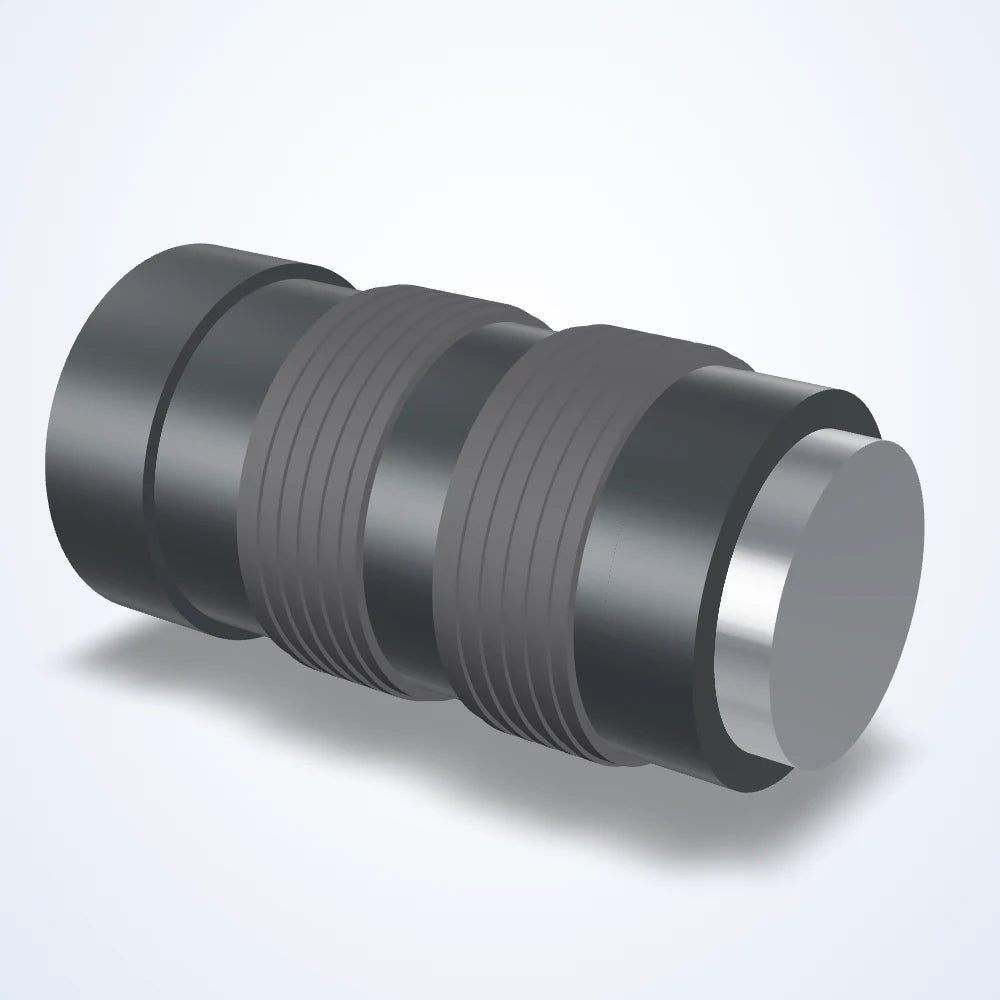

50 mm lens, 2/3", C-mount, F2.8-32 (LS-FFL-0266)
Model LS-FFL-0266
- Focal length50 mm
- MountC-mount
- Sensor2/3"
- Aperture2.8-32
- Resolution3
$219.00
Quoted price: add to quote for lead time and volume pricing.
Lead time confirmed with your quote
Collect parts in your quote list; we reply with price, lead time and volume pricing.
Machine vision lens for industrial cameras.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-FFL-0266 |
|---|---|
| Angle of view | 10.1 x 7.6 deg |
| Angle of view 1/2" | 7.3 x 5.5 deg |
| Angle of view 1/3" | 5.5 x 4.1 deg |
| FOV @ 1/2″ | 7.3° × 5.5° |
| FOV @ 1/3″ | 5.5° × 4.1° |
| FOV @ 2/3″ | 10.1° × 7.6° |
| Flange back | 17.526mm (in air) |
| Lens type | Fixed Focal Length |
| Minimum object distance (m) | 0.2 |
| Operation | Focus: manual w/lock / Iris: manual w/lock |
| Spectrum | Visible |
Optics
| Focal length | 50 mm |
|---|---|
| Aperture (F) | 2.8-32 |
| Back focus (in air) | 34.46mm |
| Filter thread | M30.5x0.5 |
| Focus control | Manual with Lock |
| Focus range | 0.2 m - ∞ |
| Focusing range | 0.2m~inf |
| Iris control | Manual with Lock |
Sensor and imaging
| Max. sensor format | 2/3" |
|---|---|
| Resolution (MP) | 3 |
Environment and compliance
| Operating temperature | -10~+60 C |
|---|---|
| Operating temperature range | -10 to +60 °C |
Mechanical
| Mount | C-mount |
|---|---|

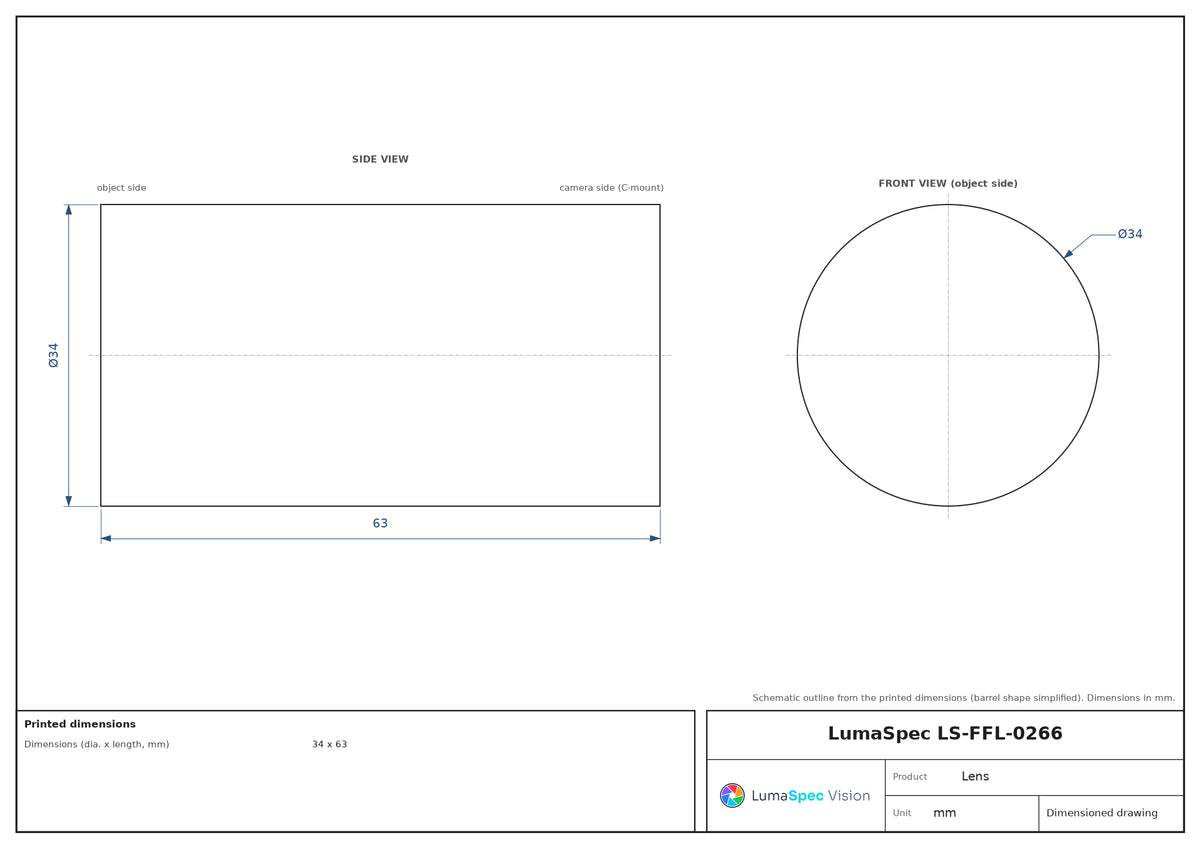

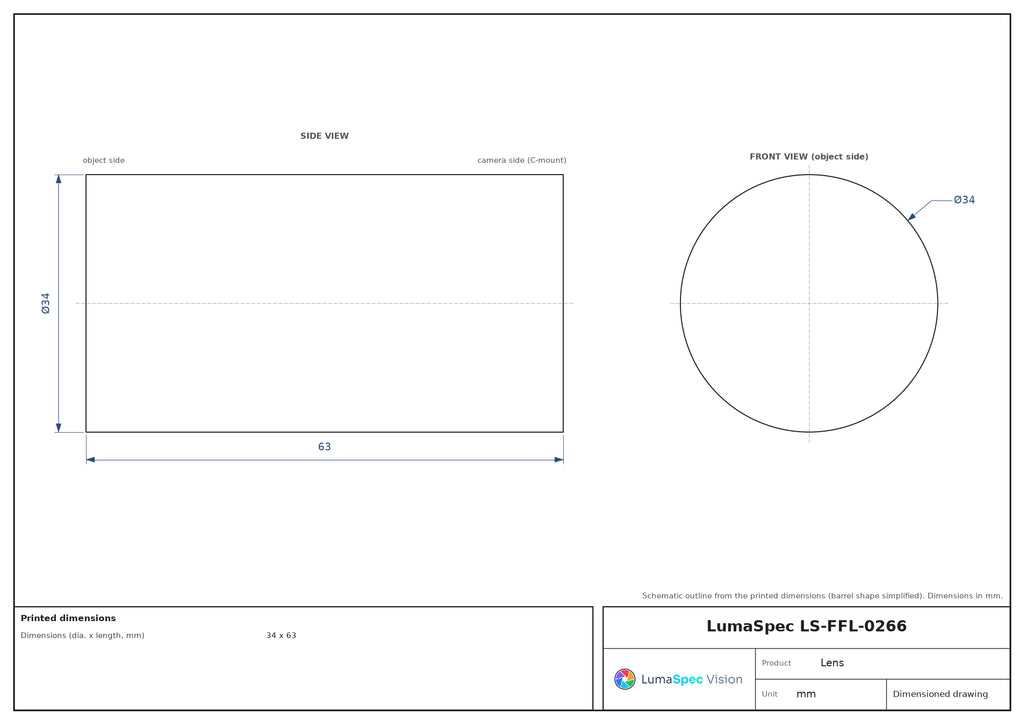

| Dimensions (dia. x length, mm) | 34 x 63 |
| Weight (g) | 117 |
Other models in the Lens series, 2/3", C-mount (S40) series
See all 3 models| Model | Size / key data | Price | Availability | Link |
|---|---|---|---|---|
| LS-FFL-0264 | 25 mm | $219.00 Quote | Lead time confirmed with your quote | View |
| LS-FFL-0262 | 16 mm | $229.00 Quote | Lead time confirmed with your quote | View |
