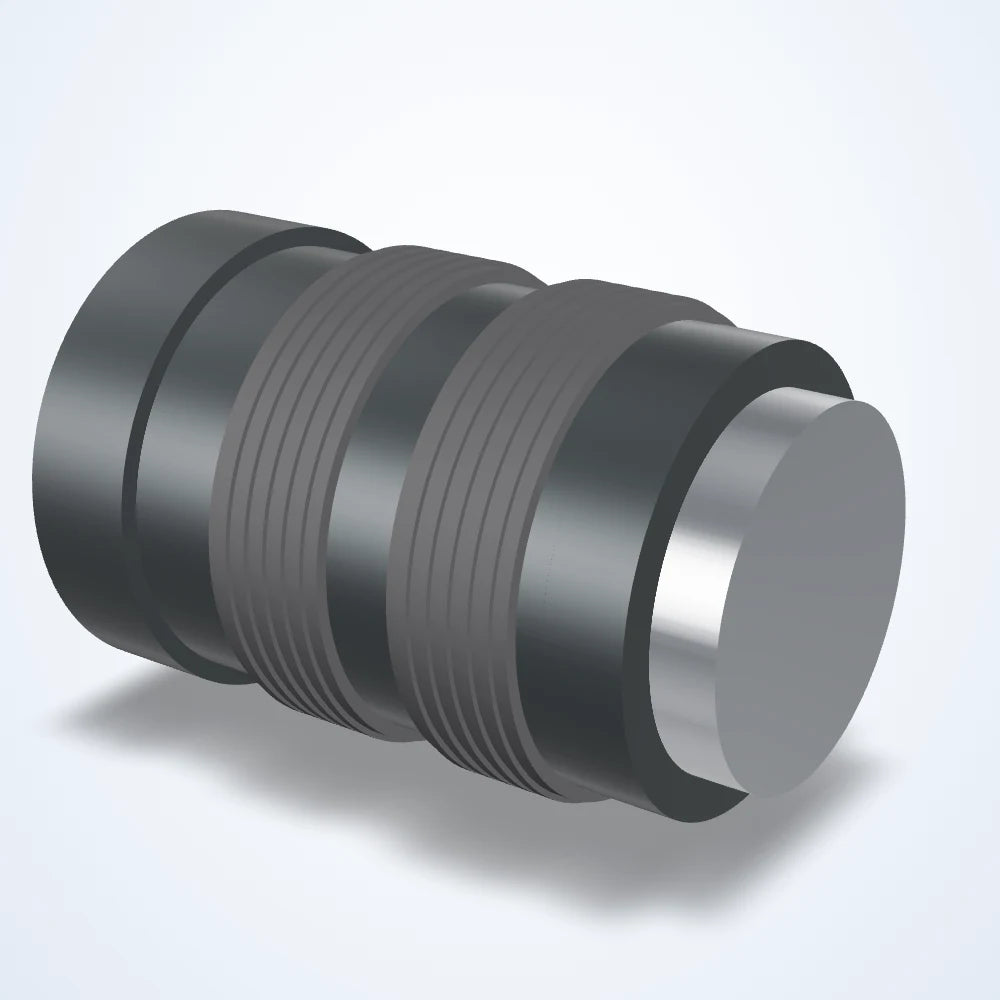

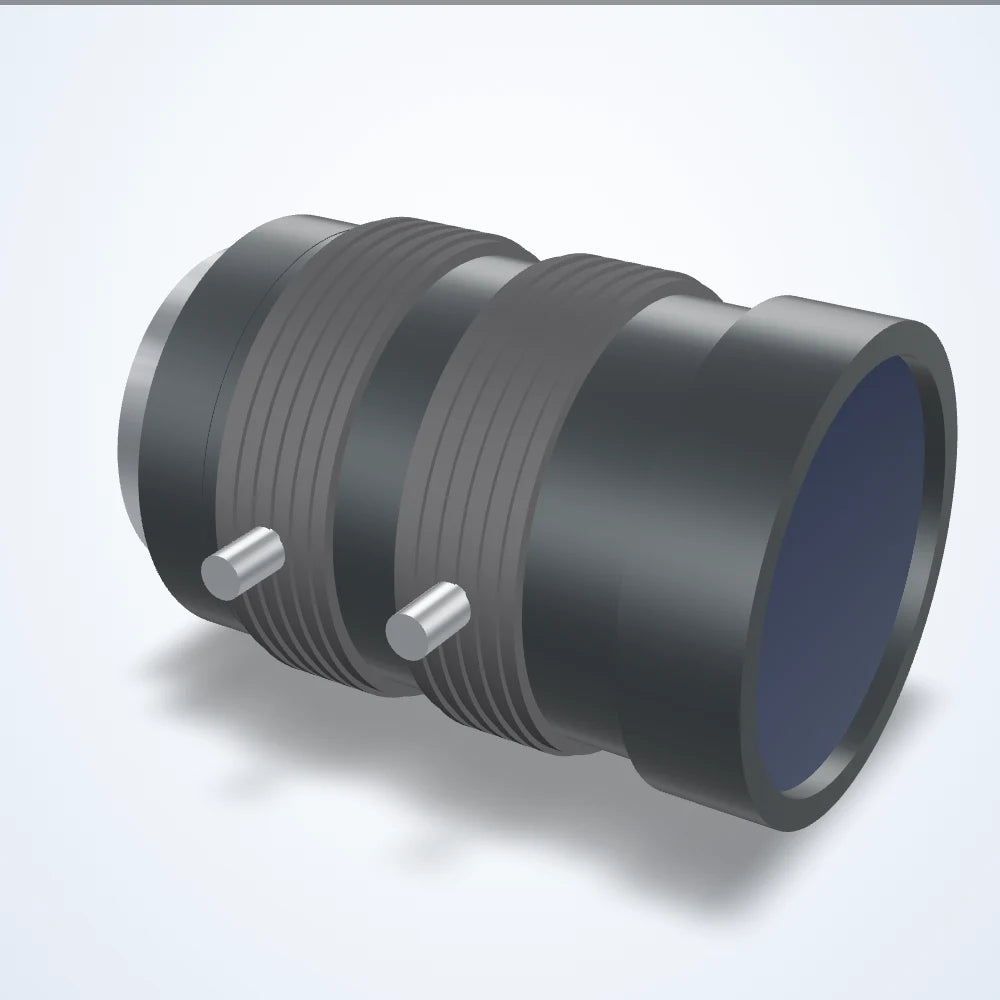

Rendered illustration: the actual product may differ in appearance.
Machine vision lenses
25 mm lens, 2/3", C-mount, Visible, dimensions 34 x 47.1 (LS-FFL-0264)
Model LS-FFL-0264
- Focal length25 mm
- MountC-mount
- Sensor2/3"
- Aperture1.4-22
- Resolution3
$219.00
Quoted price: add to quote for lead time and volume pricing.
Lead time confirmed with your quote
Collect parts in your quote list; we reply with price, lead time and volume pricing.
Machine vision lens for industrial cameras.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-FFL-0264 |
|---|---|
| Angle of view | 20.0 x 15.1 deg |
| Angle of view 1/2" | 14.6 x 11.0 deg |
| Angle of view 1/3" | 11.0 x 8.2 deg |
| FOV @ 1/2″ | 14.6° × 11° |
| FOV @ 1/3″ | 11° × 8.2° |
| FOV @ 2/3″ | 20° × 15.1° |
| Flange back | 17.526mm (in air) |
| Lens type | Fixed Focal Length |
| Minimum object distance (m) | 0.15 |
| Operation | Focus: manual w/lock / Iris: manual w/lock |
| Spectrum | Visible |
Optics
| Focal length | 25 mm |
|---|---|
| Aperture (F) | 1.4-22 |
| Back focus (in air) | 17.17mm |
| Filter thread | M30.5x0.5 |
| Focus control | Manual with Lock |
| Focus range | 0.15 m - ∞ |
| Focusing range | 0.15m~inf |
| Iris control | Manual with Lock |
Sensor and imaging
| Max. sensor format | 2/3" |
|---|---|
| Resolution (MP) | 3 |
Environment and compliance
| Operating temperature | -10~+60 C |
|---|---|
| Operating temperature range | -10 to +60 °C |
Mechanical
| Mount | C-mount |
|---|---|

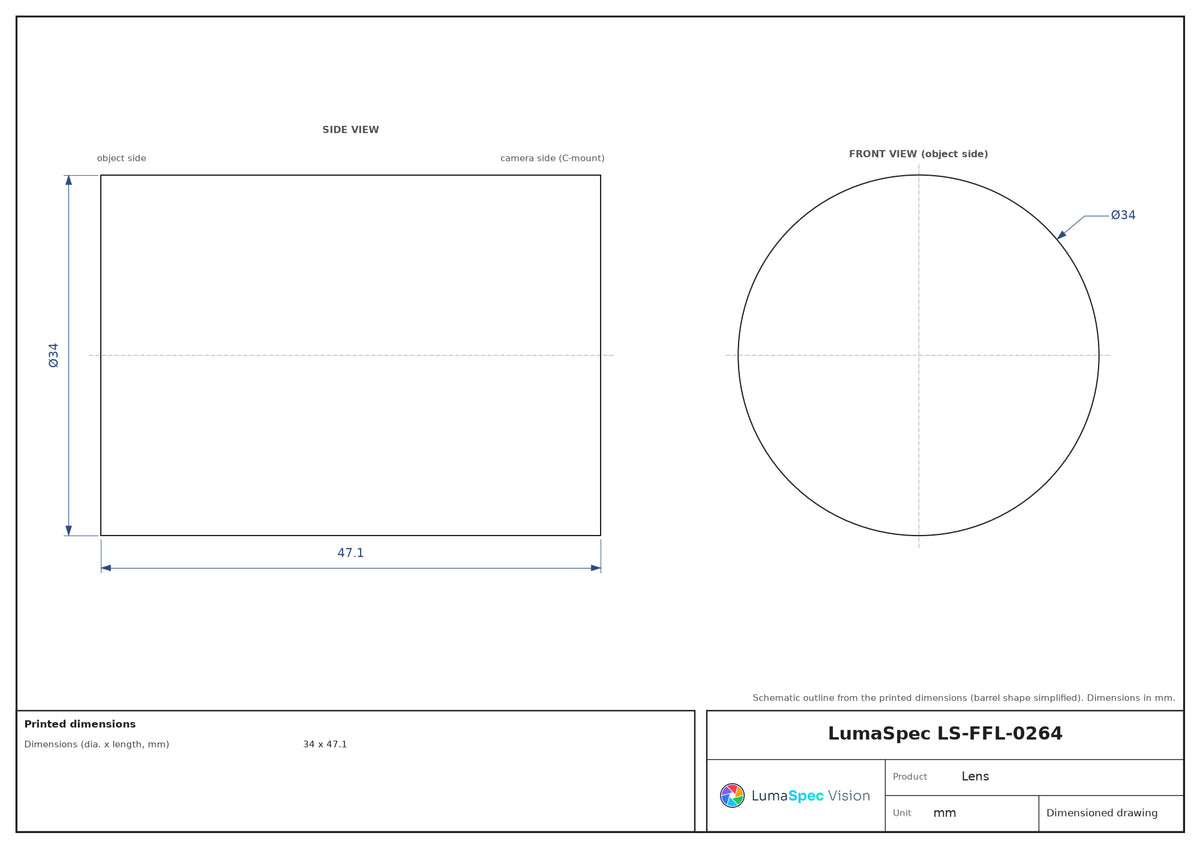

| Dimensions (dia. x length, mm) | 34 x 47.1 |
| Weight (g) | 103 |
Other models in the Lens series, 2/3", C-mount (S40) series
See all 3 models| Model | Size / key data | Price | Availability | Link |
|---|---|---|---|---|
| LS-FFL-0266 | 50 mm | $219.00 Quote | Lead time confirmed with your quote | View |
| LS-FFL-0262 | 16 mm | $229.00 Quote | Lead time confirmed with your quote | View |
