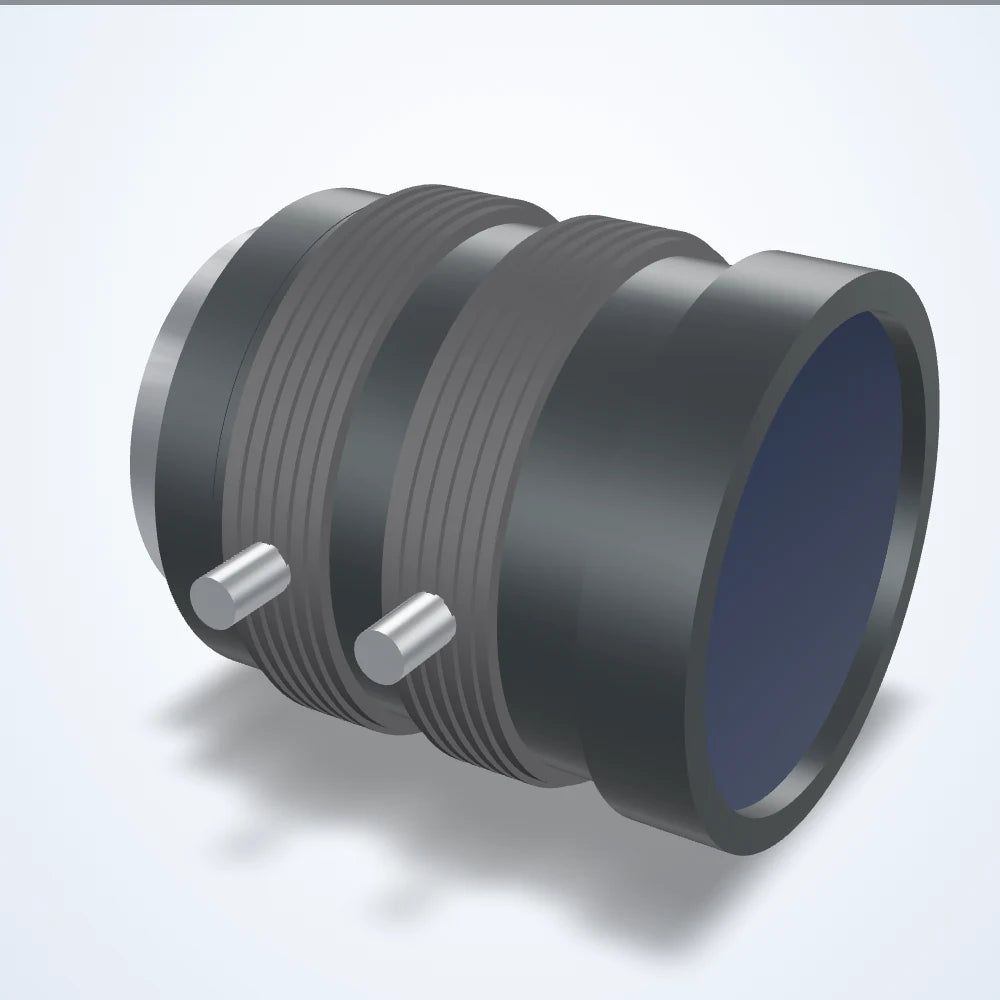

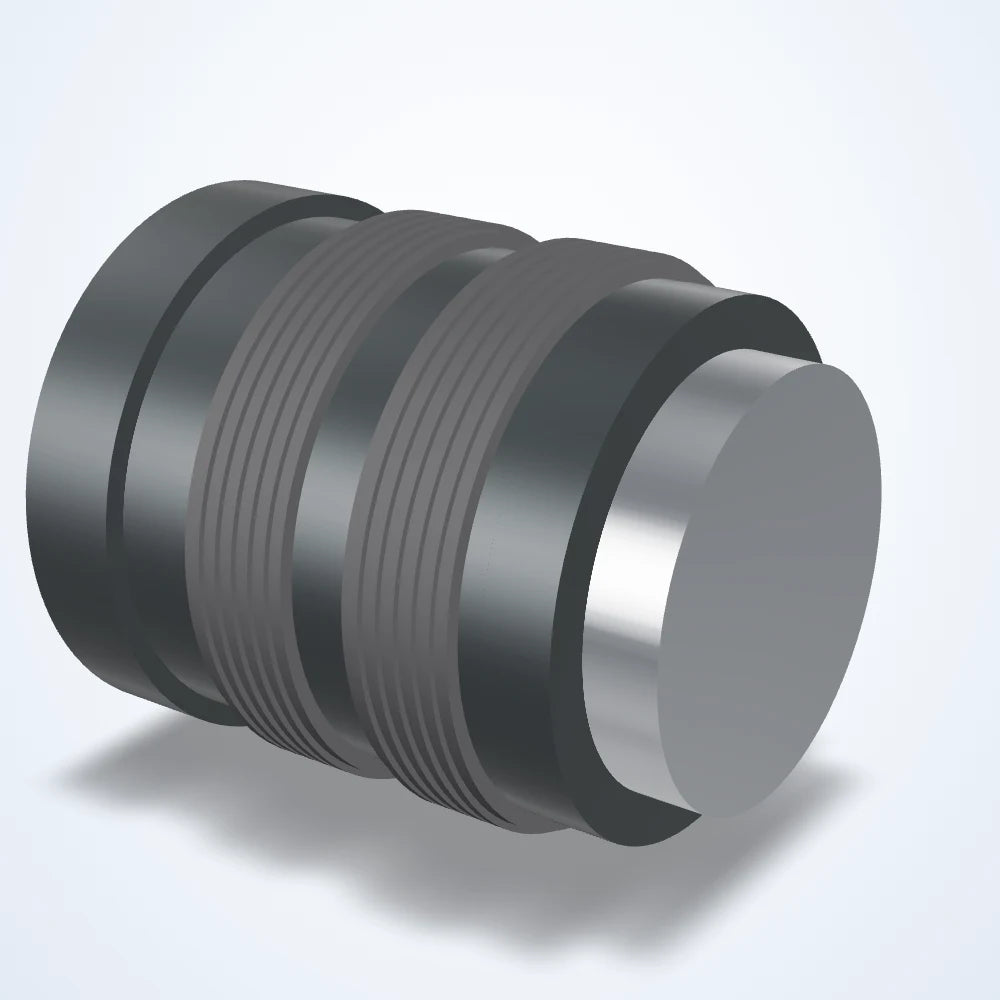

Rendered illustration: the actual product may differ in appearance.
Machine vision lenses
16 mm lens, 2/3", C-mount, dimensions 34 x 35.9 (LS-FFL-0262)
Model LS-FFL-0262
- Focal length16 mm
- MountC-mount
- Sensor2/3"
- Aperture1.4-22
- Resolution3
$229.00
Quoted price: add to quote for lead time and volume pricing.
Lead time confirmed with your quote
Collect parts in your quote list; we reply with price, lead time and volume pricing.
Machine vision lens for industrial cameras.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-FFL-0262 |
|---|---|
| Angle of view | 30.9 x 23.4 deg |
| Angle of view 1/2" | 22.7 x 17.1 deg |
| Angle of view 1/3" | 17.1 x 12.9 deg |
| FOV @ 1/2″ | 22.7° × 17.1° |
| FOV @ 1/3″ | 17.1° × 12.9° |
| FOV @ 2/3″ | 30.9° × 23.4° |
| Flange back | 17.526mm (in air) |
| Lens type | Fixed Focal Length |
| Minimum object distance (m) | 0.15 |
| Operation | Focus: manual w/lock / Iris: manual w/lock |
Optics
| Focal length | 16 mm |
|---|---|
| Aperture (F) | 1.4-22 |
| Back focus (in air) | 11.54mm |
| Filter thread | M30.5x0.5 |
| Focus control | Manual with Lock |
| Focus range | 0.15 m - ∞ |
| Focusing range | 0.15m~inf |
| Iris control | Manual with Lock |
Sensor and imaging
| Max. sensor format | 2/3" |
|---|---|
| Resolution (MP) | 3 |
Environment and compliance
| Operating temperature | -10~+60 C |
|---|---|
| Operating temperature range | -10 to +60 °C |
Mechanical
| Mount | C-mount |
|---|---|

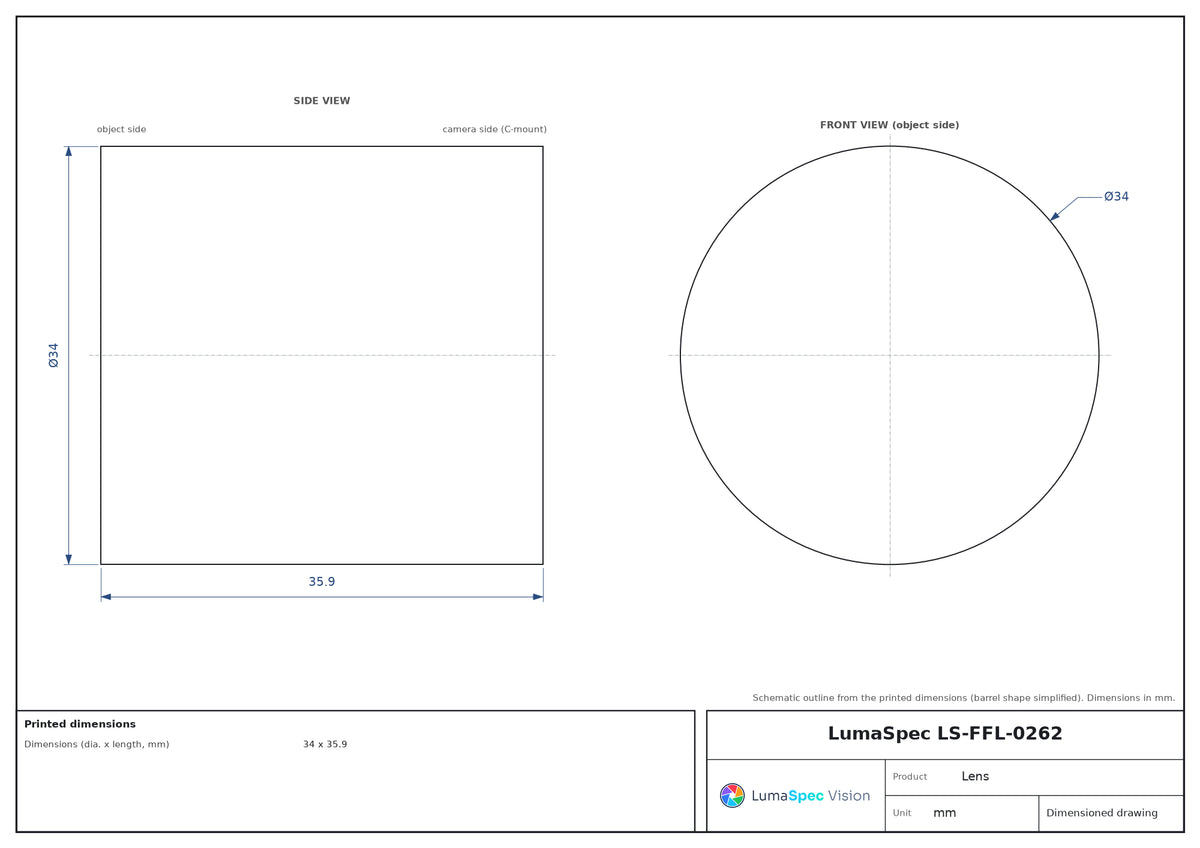

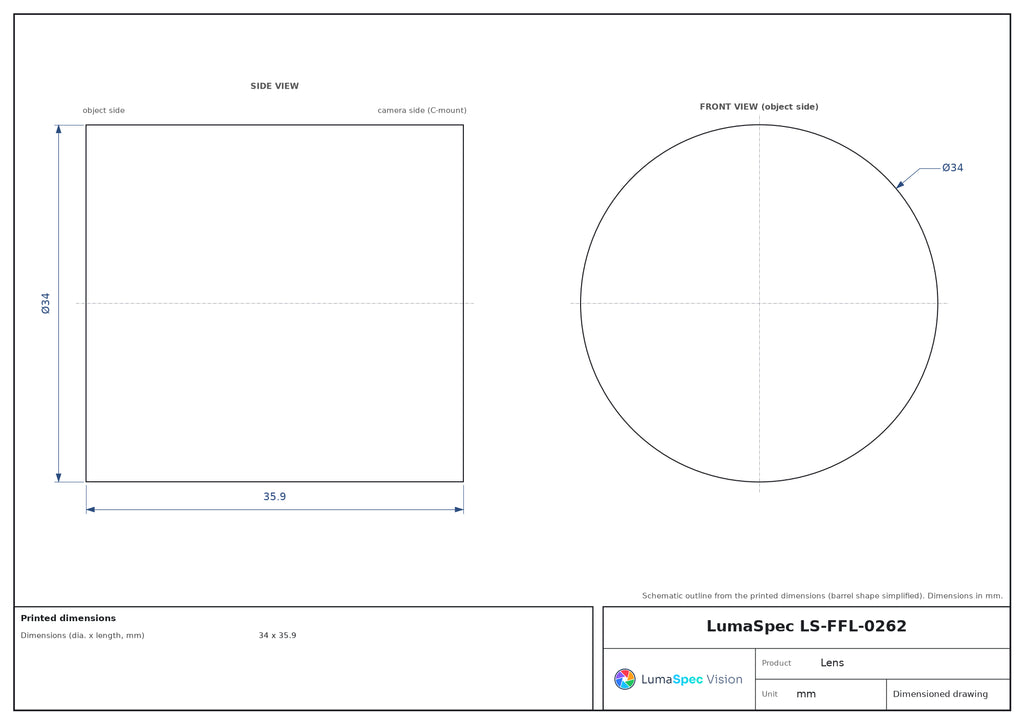

| Dimensions (dia. x length, mm) | 34 x 35.9 |
| Weight (g) | 80 |
