Machine vision lenses

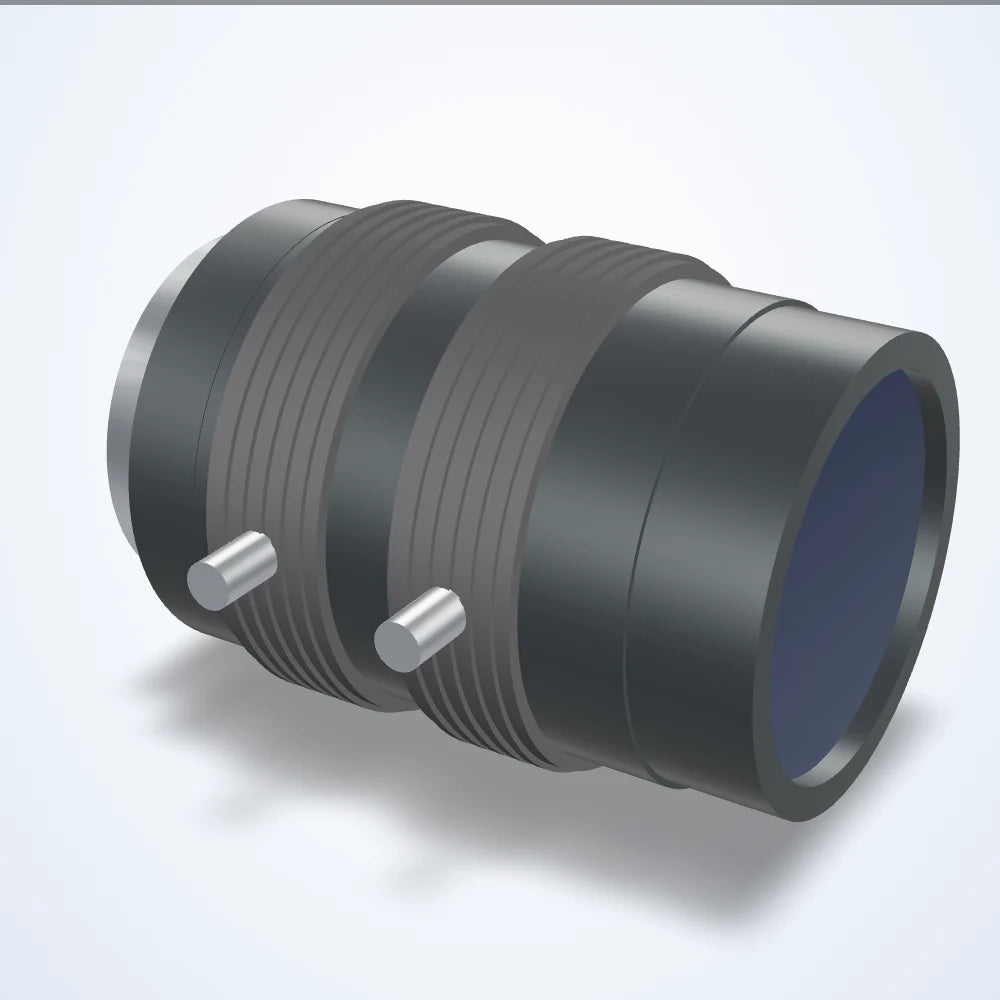

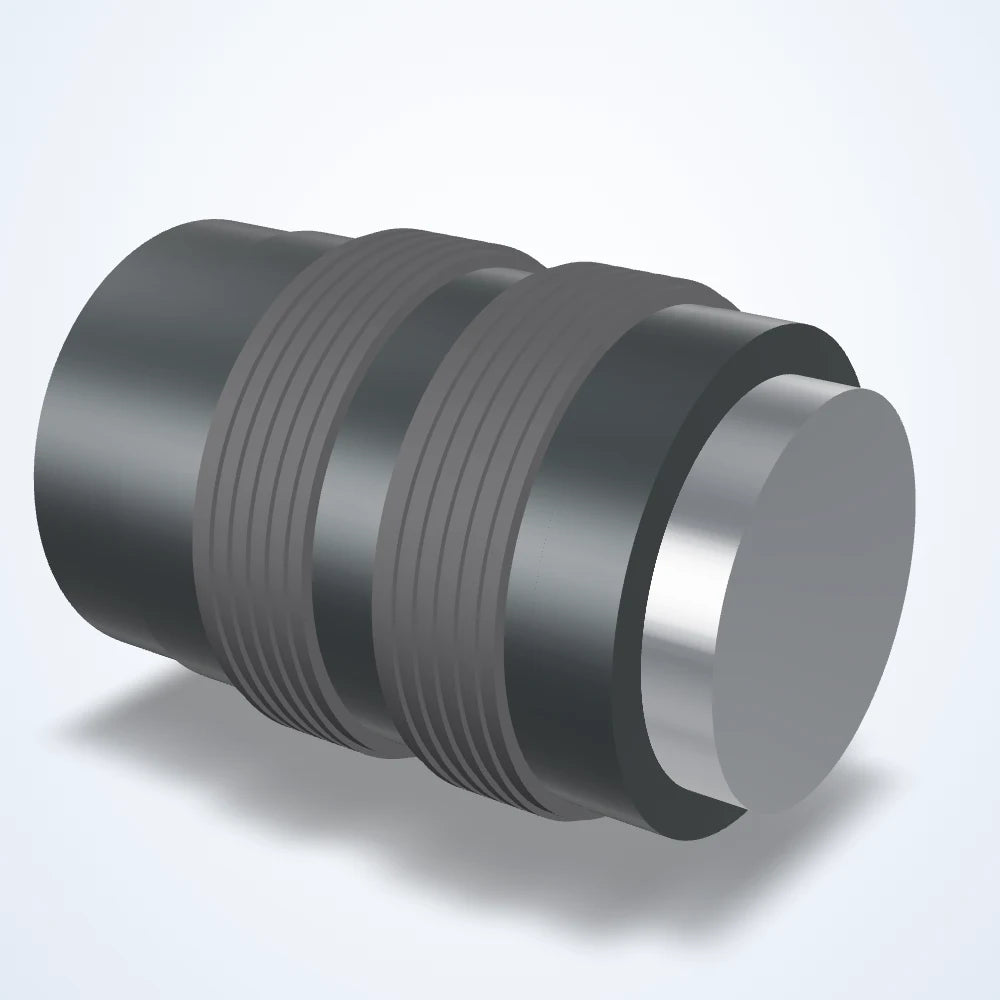

16 mm lens, 2/3", C-mount (LS-FFL-0150)
Model LS-FFL-0150
- Focal length16 mm
- MountC-mount
- Sensor2/3"
- Aperture1.4-16
$489.00
Quoted price: add to quote for lead time and volume pricing.
Lead time confirmed with your quote
Collect parts in your quote list; we reply with price, lead time and volume pricing.
Machine vision lens for industrial cameras.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-FFL-0150 |
|---|---|
| Angle of view | 30.9 x 23.2 deg (H x V), 38.4 deg diagonal |
| Angle of view @ 1/1.8″ | 25.4° × 19.0° |
| Angle of view @ 1/2″ | 22.6° × 16.9° |
| Angle of view @ 2/3″ | 30.9° × 23.2° |
| Barrel marking | f=16mm/F1.4 DN |
| Element | 7 groups 8 elements |
| Entrance pupil position | 17.4 mm from front |
| Exit pupil | -1067.4mm |
| Flange back | 17.526mm in air |
| Front / rear effective dia. | Front 14.5mm / Rear 14.5mm |
| Lens type | Fixed Focal Length |
| Minimum object distance (m) | 0.3 |
| Shooting range at mod (2/3") | V 127.4mm, H 171.4mm, D 216.8mm |
| Spectrum | Visible |
| Thumb screw | M2 |
Optics
| Focal length | 16 mm |
|---|---|
| Aperture (F) | 1.4-16 |
| Distortion | -0.8% (TV) |
| Back focus | 14.7mm in air |
| Filter thread | M27x0.5 |
| Focus control | Manual |
| Focus range | 0.3 m - ∞ |
| Image circle | 11 mm |
| Image size dimensions | 8.8 mm x 6.6 mm |
| Iris control | Manual |
Sensor and imaging
| Max. sensor format | 2/3" |
|---|---|
| Resolution center/corner | Center 120 lines/mm / Corner 80 lines/mm |
Environment and compliance
| Operating temperature range | -10 to +50 °C |
|---|---|
| Storage temperature range | -20~+60 C |
Mechanical
| Mount | C-mount |
|---|---|

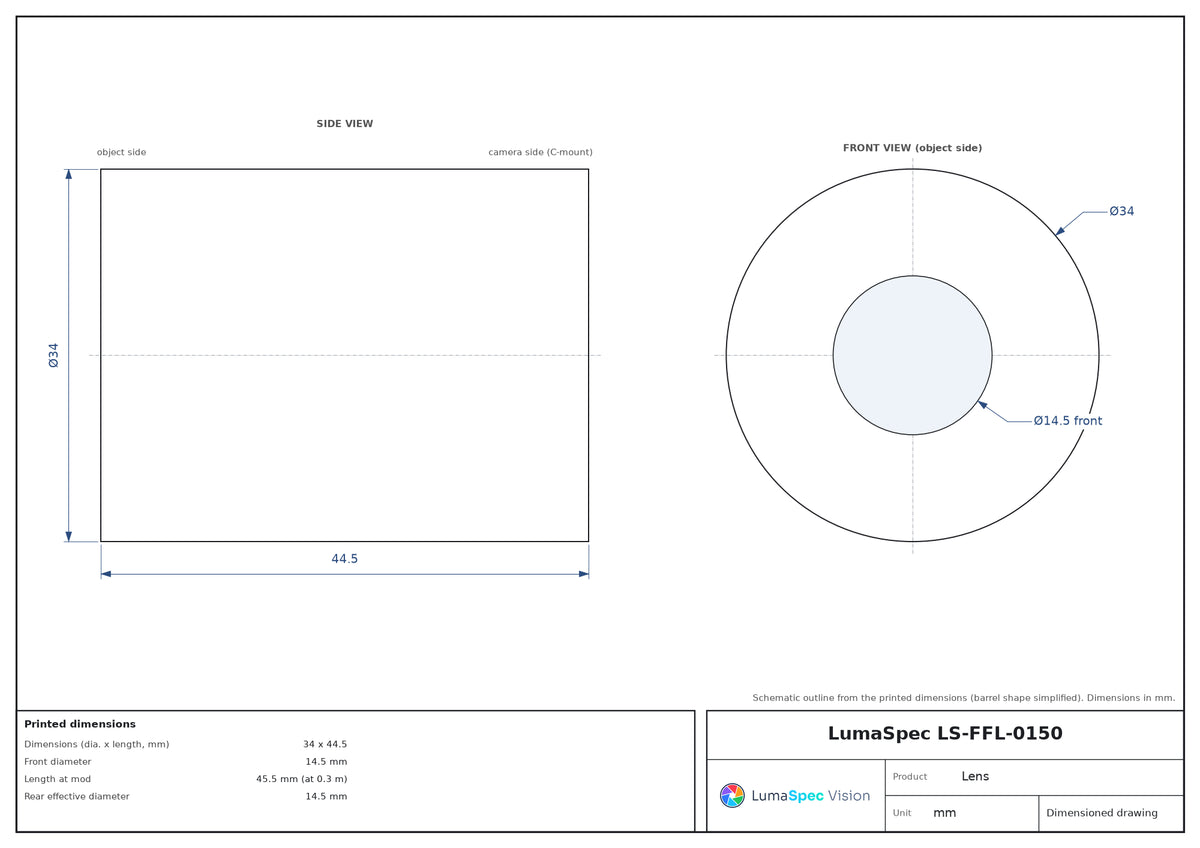

| Dimensions (dia. x length, mm) | 34 x 44.5 |
| Front diameter | 14.5 mm |
| Length at mod | 45.5 mm (at 0.3 m) |
| Mount thread | 1-32UNF |
| Weight (g) | 100 |
