Machine vision lenses

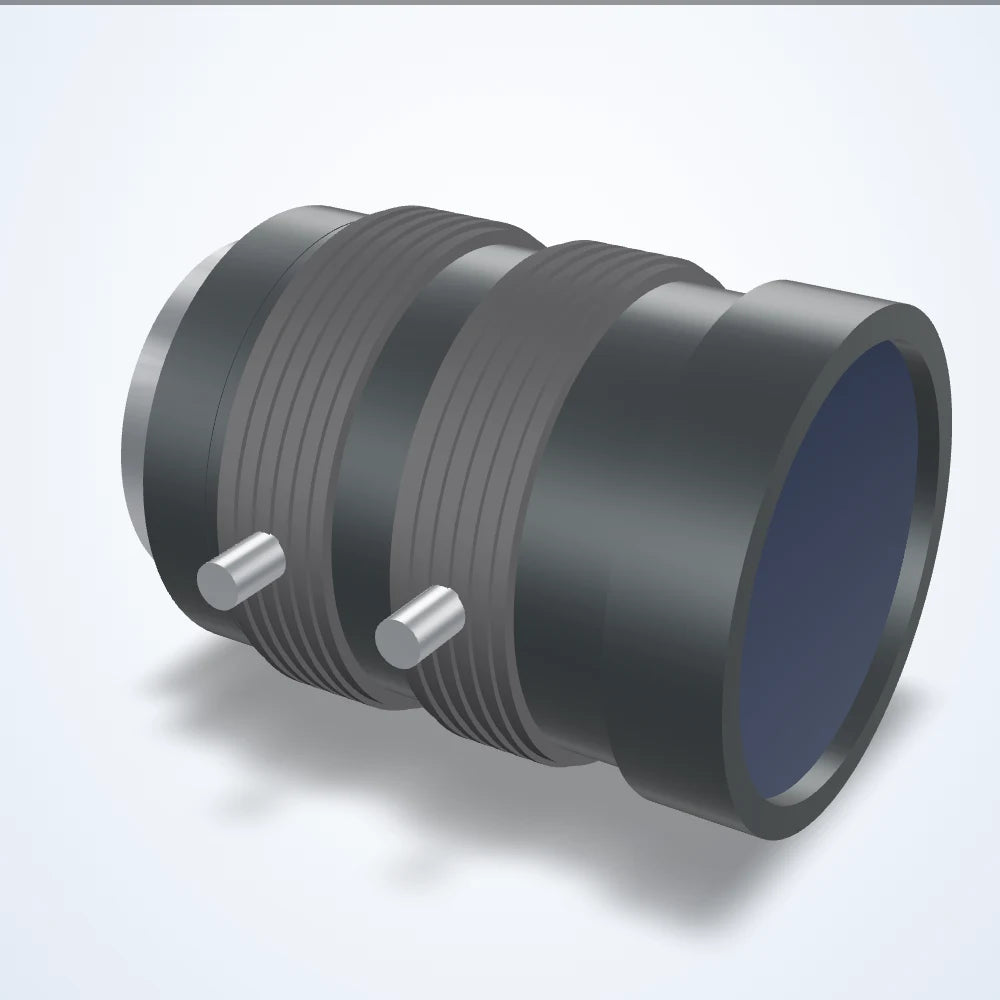

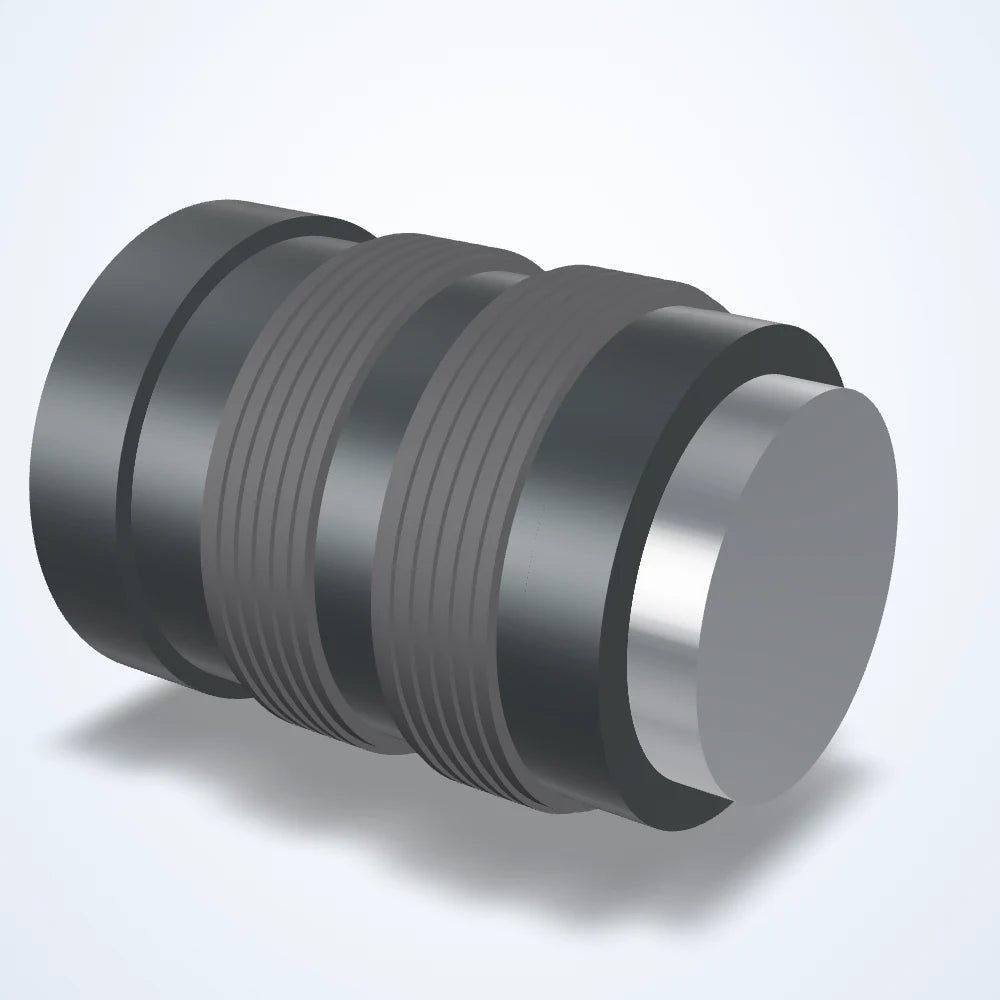

35 mm lens, 2/3", C-mount, front diameter 19.7 mm (LS-FFL-0184)
Model LS-FFL-0184
- Focal length35 mm
- MountC-mount
- Sensor2/3"
- Aperture2.0-22
- ResolutionCenter 120/mm, corner 80/mm
$489.00
Quoted price: add to quote for lead time and volume pricing.
Lead time confirmed with your quote
Collect parts in your quote list; we reply with price, lead time and volume pricing.
Machine vision lens for industrial cameras.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-FFL-0184 |
|---|---|
| Angle of view | H 13.9 x V 10.5 deg (D 17.4 deg) |
| Angle of view @ 1/1.8″ | 11.4° × 8.3° |
| Angle of view @ 1/2″ | 10.2° × 7.6° |
| Angle of view @ 2/3″ | 13.9° × 10.5° |
| Element | 6 groups 8 elements |
| Entrance pupil position | 31.4 (E.P.) |
| Exit pupil | -65.8mm |
| Flange back | 17.526mm in air |
| Front / rear effective dia. | Front 19.7mm / Rear 14.7mm |
| Lens type | Fixed Focal Length |
| Minimum object distance (m) | 0.3 |
| Shooting range at mod | 75.8(H)×56.6(V) |
| Spectrum | Visible |
| Thumb screw | M2, position selectable (120deg) |
Optics
| Focal length | 35 mm |
|---|---|
| Aperture (F) | 2.0-22 |
| Distortion | -0.3% (TV) |
| Back focus | 19.2mm in air |
| Filter thread | M30.5x0.5 |
| Focus control | Manual |
| Focus range | 0.3 m - ∞ |
| Image circle | 11 mm |
| Image size dimensions | 8.8 mm x 6.6 mm |
| Iris control | Manual |
Sensor and imaging
| Max. sensor format | 2/3" |
|---|---|
| Resolution center/corner | Center 120/mm, corner 80/mm |
Environment and compliance
| Operating temperature range | -10 to +50 °C |
|---|---|
| Storage temperature range | -20~+60 C |

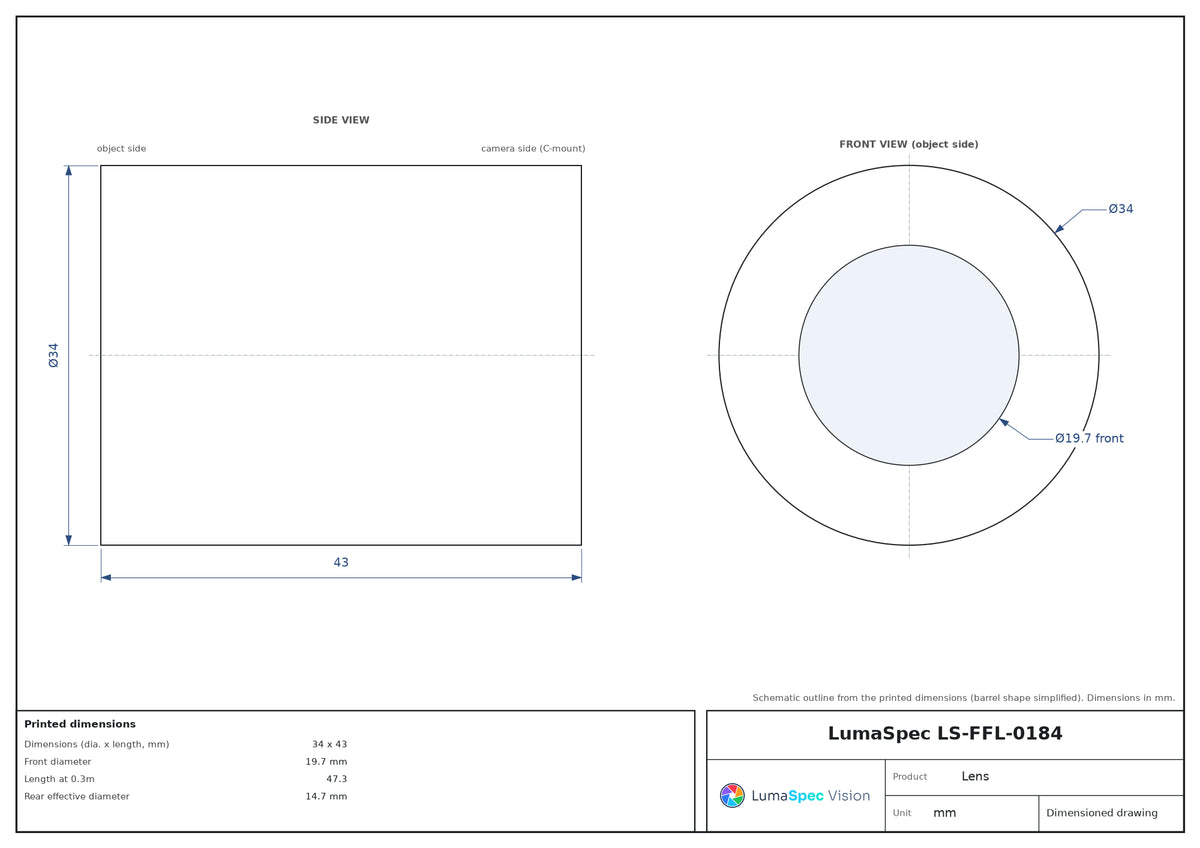

Mechanical
| Mount | C-mount |
|---|---|
| Dimensions (dia. x length, mm) | 34 x 43 |
| Front diameter | 19.7 mm |
| Length at 0.3m | 47.3 |
| Picture size (largest format) | 6.6x8.8mm |
| Weight (g) | 100 |
