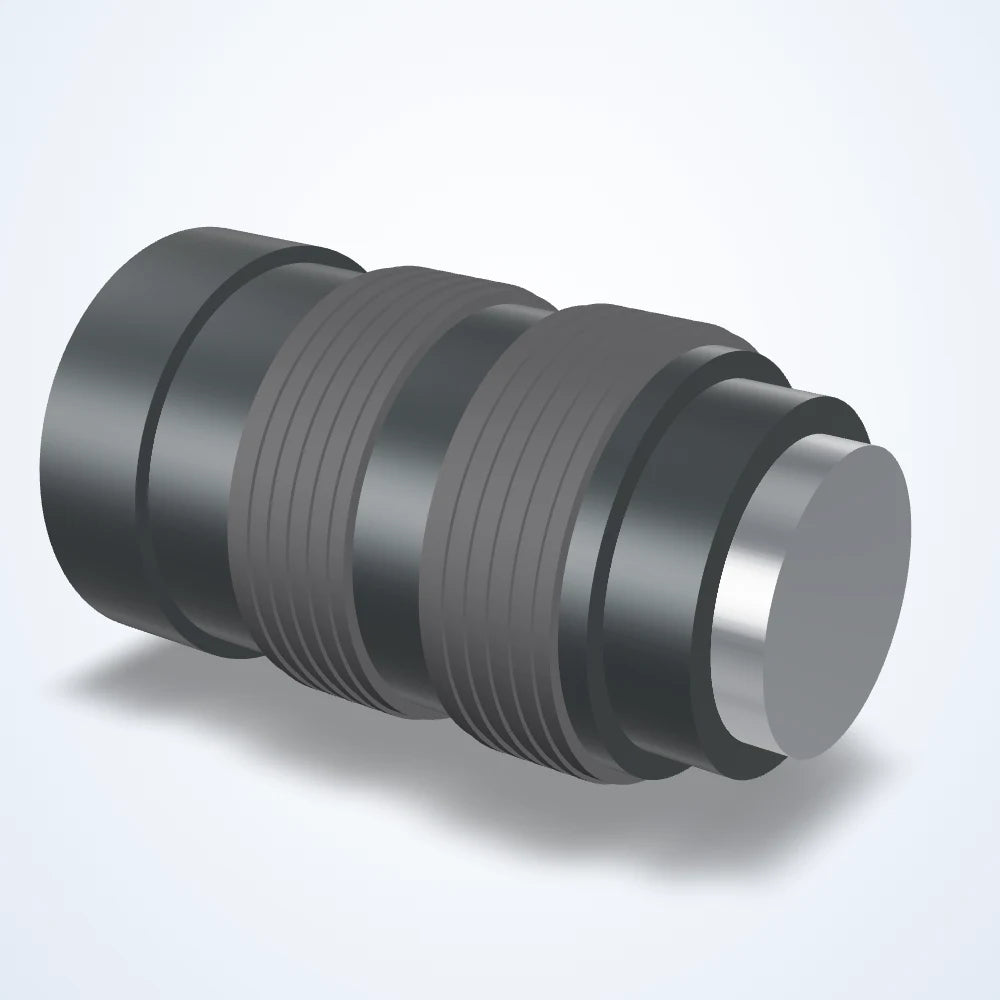

Rendered illustration: the actual product may differ in appearance.
Machine vision lenses
6 mm lens, 1/2" (3CCD), C-mount (LS-FFL-0217)
Model LS-FFL-0217
- Focal length6.0 mm
- MountC-mount
- Sensor1/2"
- Aperture1.8-16
- ResolutionCenter 120lp/mm, corner 100lp/mm
$589.00
Quoted price: add to quote for lead time and volume pricing.
Lead time confirmed with your quote
Collect parts in your quote list; we reply with price, lead time and volume pricing.
Machine vision lens for industrial cameras.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-FFL-0217 |
|---|---|
| Angle of view | H 58.8 x V 44.9 deg (D 71.6 deg) |
| Exit pupil | 613mm |
| Exit pupil position | 613mm |
| Flange back | 17.526mm in air |
| Front / rear effective dia. | Front 24.0mm / Rear 13.2mm |
| Lens type | Fixed Focal Length |
| Minimum object distance (m) | 0.1 |
| Spectrum | Visible |
| Type | 3CCD |
Optics
| Focal length | 6.0 mm |
|---|---|
| Aperture (F) | 1.8-16 |
| Distortion | -2.1% (TV) (1/3": -1.4%) |
| Back focus | 15.2mm in air |
| Clear aperture front | 14 mm |
| Clear aperture rear | 13.2 mm |
| Filter thread | M37.5x0.5 |
| Focus control | Manual |
| Focus range | 0.1 m - ∞ |
| Image circle | 9 mm |
| Image size dimensions | 6.4 mm x 4.8 mm |
| Iris control | Manual |
Sensor and imaging
| Max. sensor format | 1/2" (3CCD) |
|---|---|
| Resolution center/corner | Center 120lp/mm, corner 100lp/mm |
Environment and compliance
| Operating temperature range | -10 to +45 °C |
|---|---|
| Storage temperature range | -40~+60 C |
Mechanical
| Mount | C-mount |
|---|---|

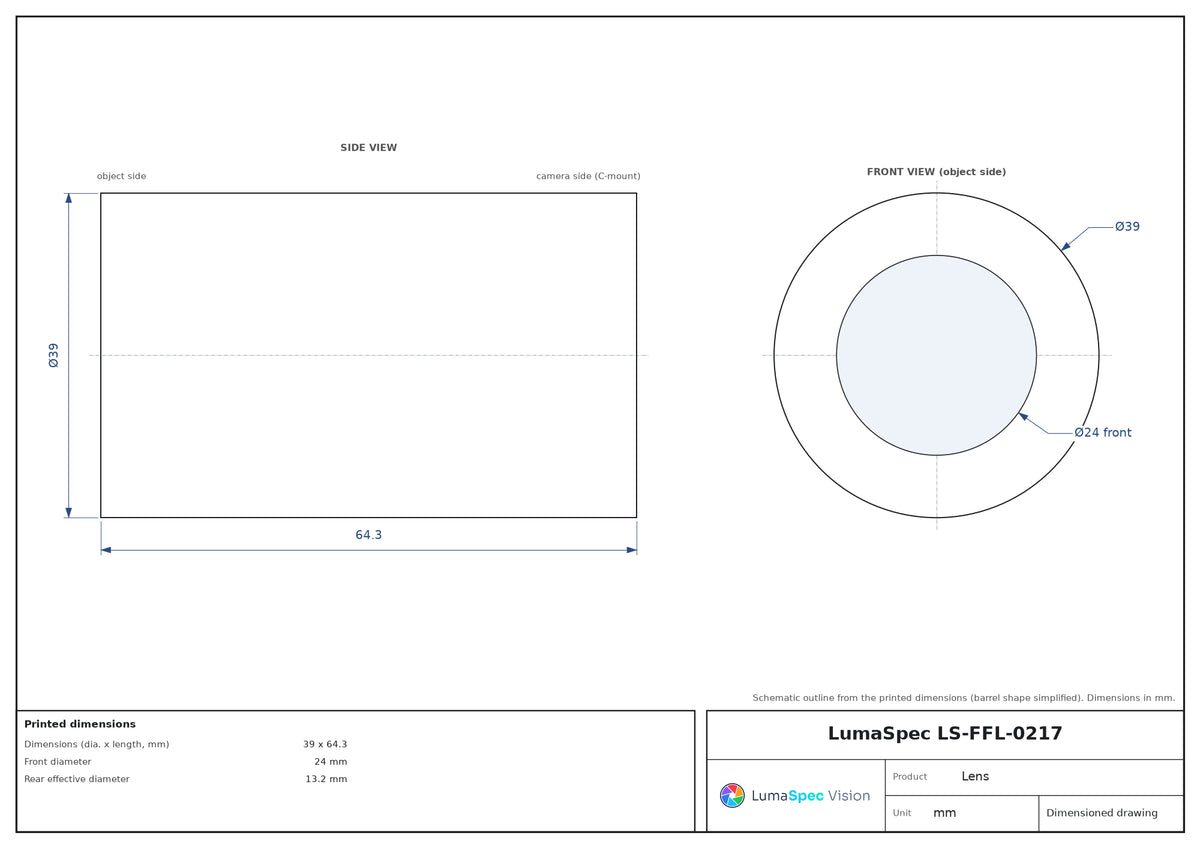

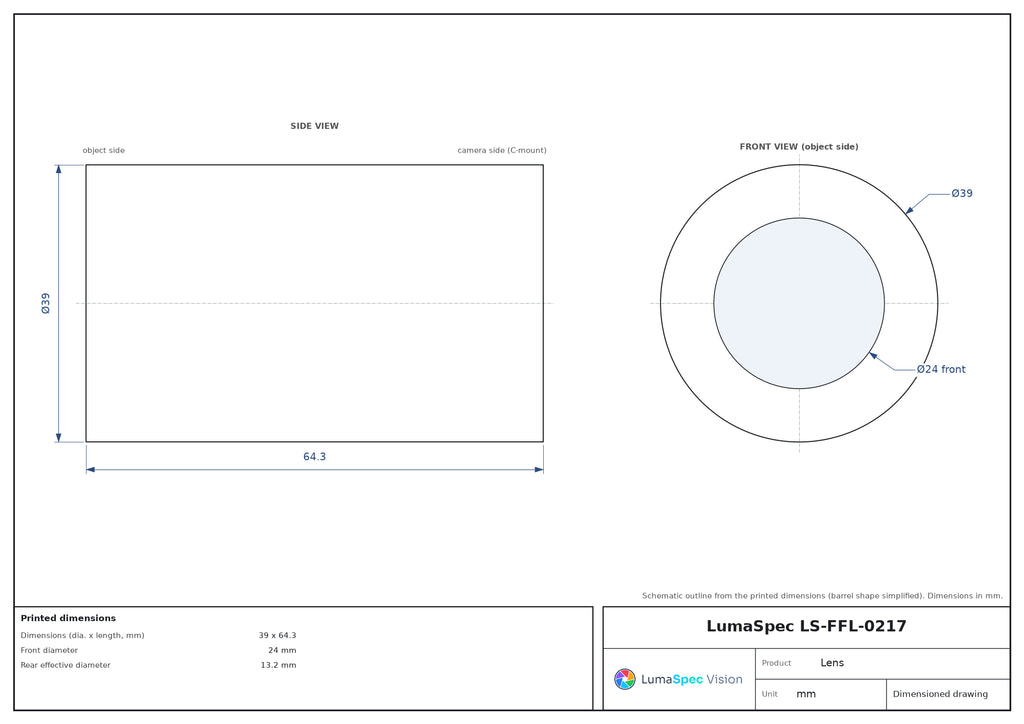

| Dimensions (dia. x length, mm) | 39 x 64.3 |
| Front diameter | 24 mm |
| Picture size (largest format) | 6.4x4.8mm |
| Weight (g) | 99 |
