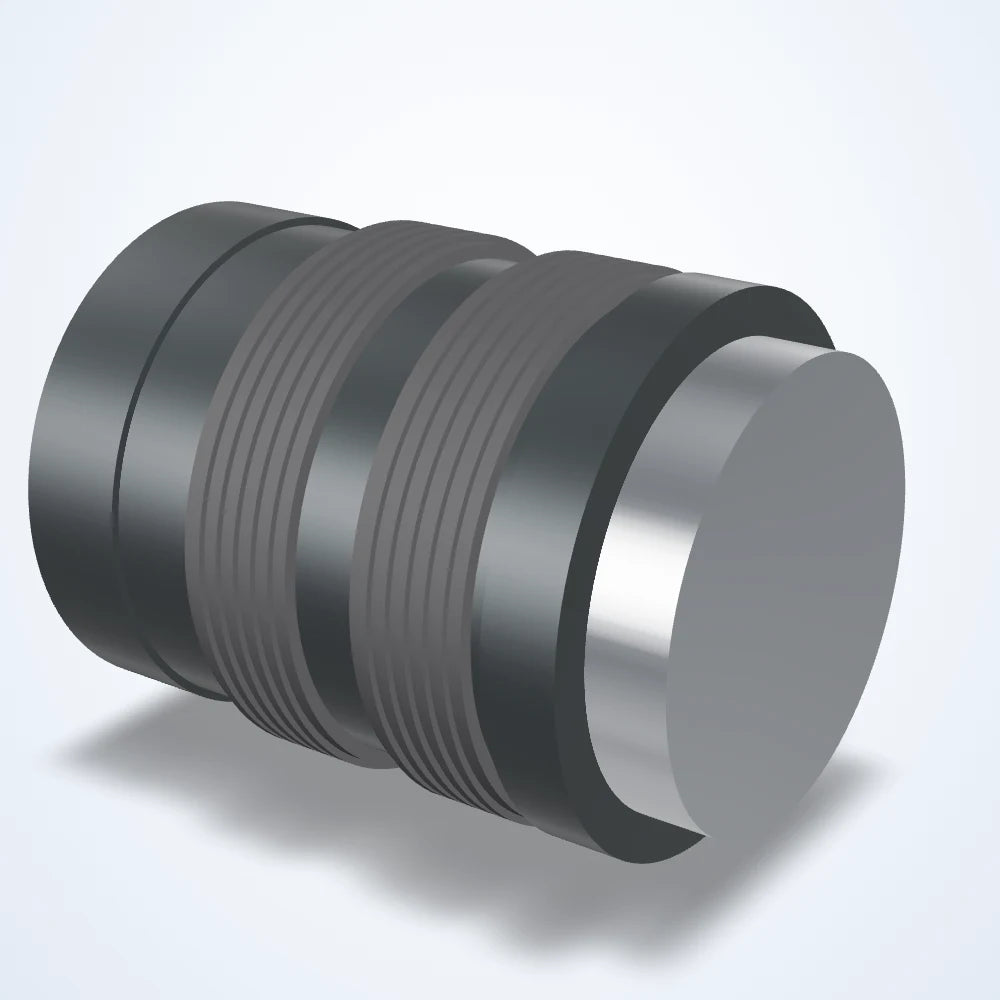

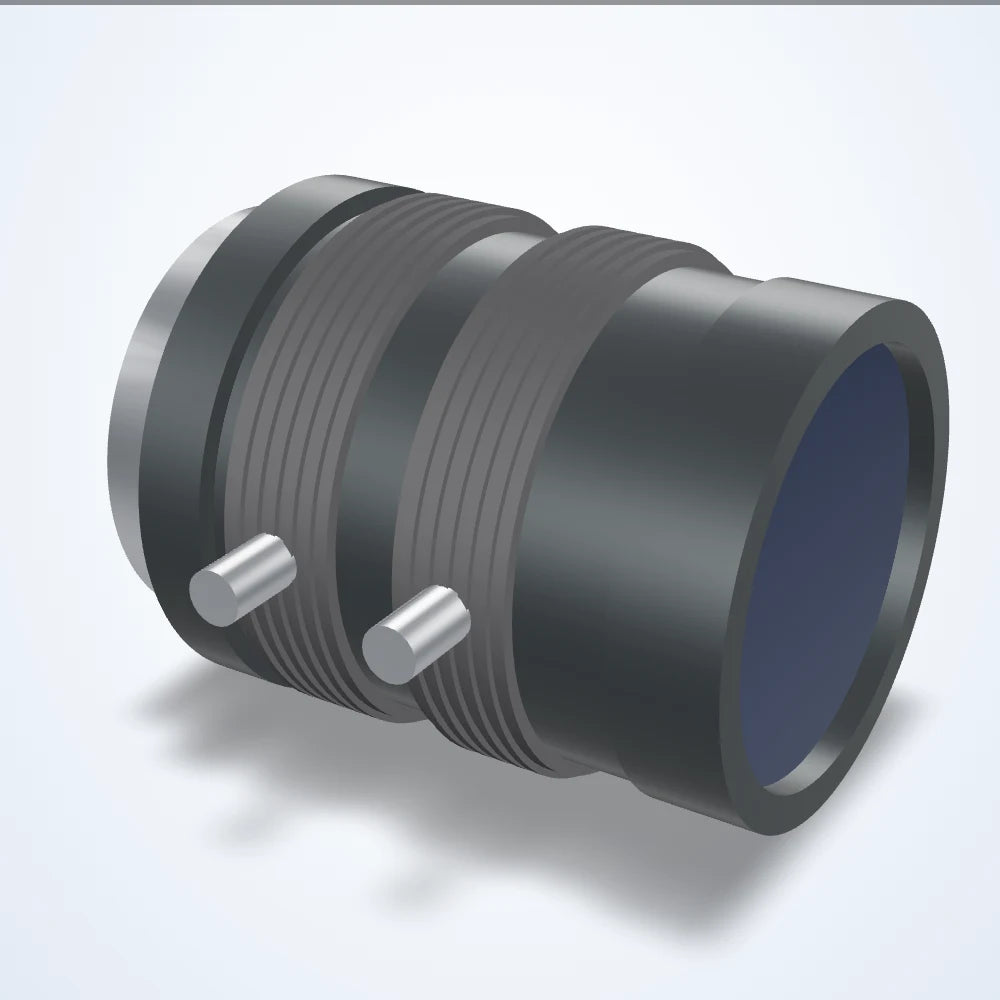

Rendered illustration: the actual product may differ in appearance.
Machine vision lenses
12 mm lens, 1/1.8", C-mount, rear dia. 30.5mm (LS-FFL-0284)
Model LS-FFL-0284
- Focal length12 mm
- MountC-mount
- Sensor1/1.8"
- Aperture1.4-16
- Resolution2
$239.00
Quoted price: add to quote for lead time and volume pricing.
Lead time confirmed with your quote
Collect parts in your quote list; we reply with price, lead time and volume pricing.
Machine vision lens for industrial cameras.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-FFL-0284 |
|---|---|
| Angle of view | 34.2 x 25.8 deg |
| Angle of view 1/2" | 30.2 x 22.7 deg |
| Angle of view 1/3" | 22.7 x 17.1 deg |
| FOV @ 1/1.8″ | 34.2° × 25.8° |
| FOV @ 1/2″ | 30.2° × 22.7° |
| FOV @ 1/3″ | 22.7° × 17.1° |
| Flange back | 17.526mm (in air) |
| Lens type | Fixed Focal Length |
| Minimum object distance (m) | 0.1 |
| Operation | Focus: manual w/lock / Iris: manual w/lock |
| Rear dia. | 30.5mm |
| Rear protrusion | 5.9mm |
| Spectrum | Visible |
Optics
| Focal length | 12 mm |
|---|---|
| Aperture (F) | 1.4-16 |
| Filter thread | M25.5x0.5 |
| Focus control | Manual with Lock |
| Focus range | 0.1 m - ∞ |
| Focusing range | 0.1m~inf |
| Iris control | Manual with Lock |
| TV distortion (%) | -1.2 |
Sensor and imaging
| Max. sensor format | 1/1.8" |
|---|---|
| Resolution (MP) | 2 |
Light
| Wavelength | Visible light |
|---|
Environment and compliance
| Operating temperature | -10~+60 C |
|---|---|
| Operating temperature range | -10 to +60 °C |
Mechanical
| Mount | C-mount |
|---|---|

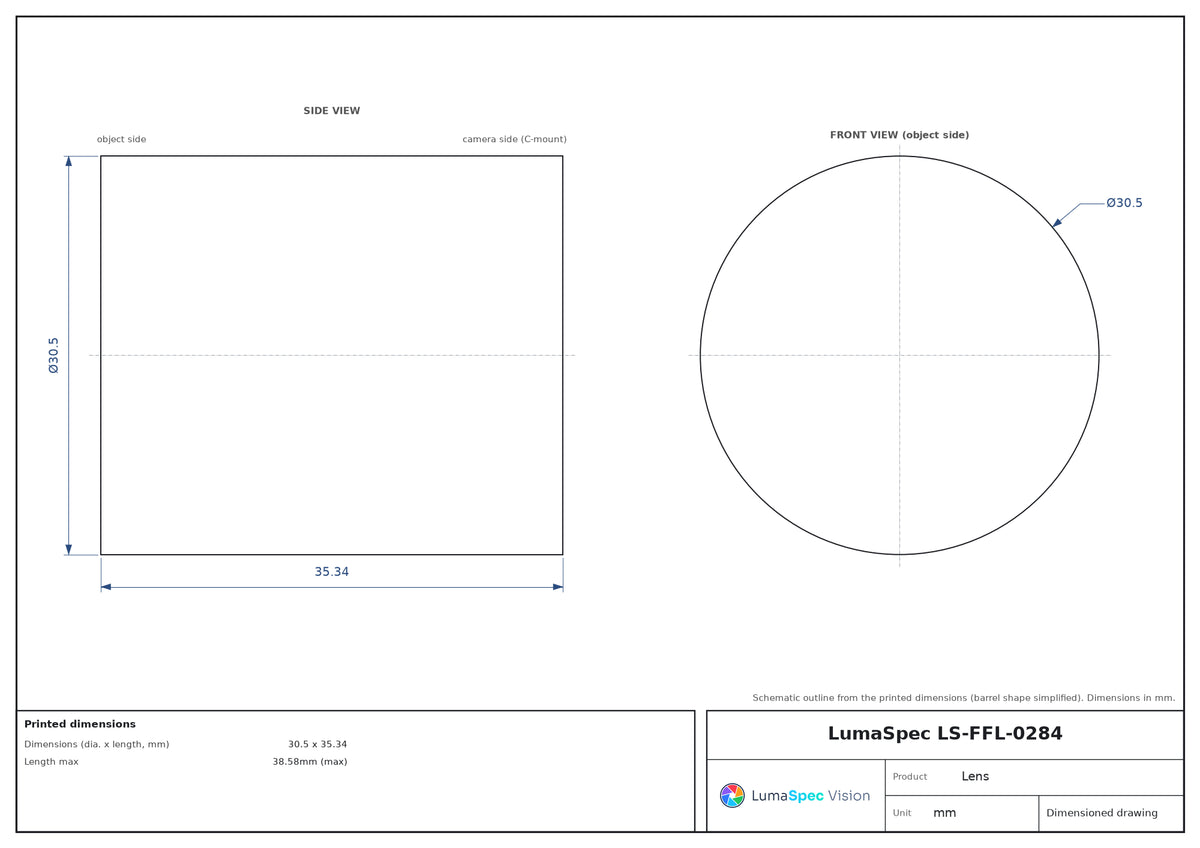

| Dimensions (dia. x length, mm) | 30.5 x 35.34 |
| Length max | 38.58mm (max) |
| Weight (g) | 57 |
