Machine vision lenses

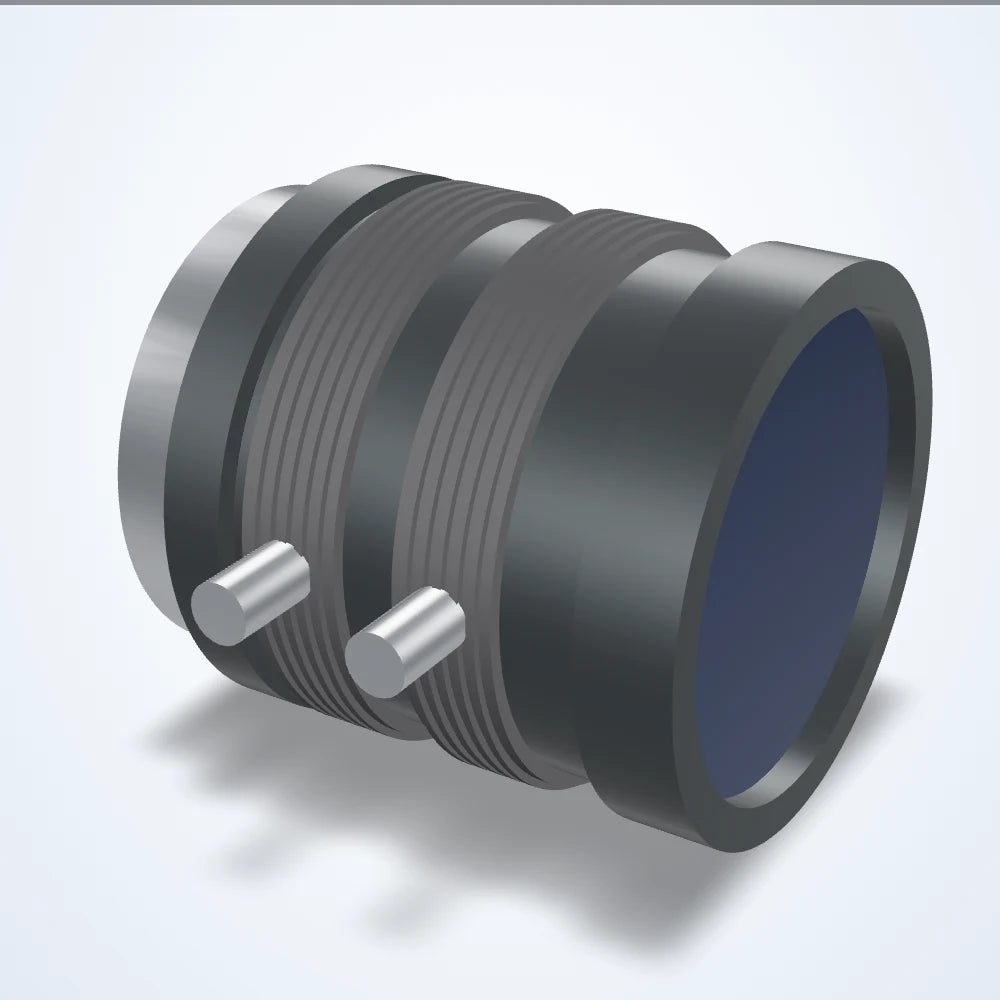

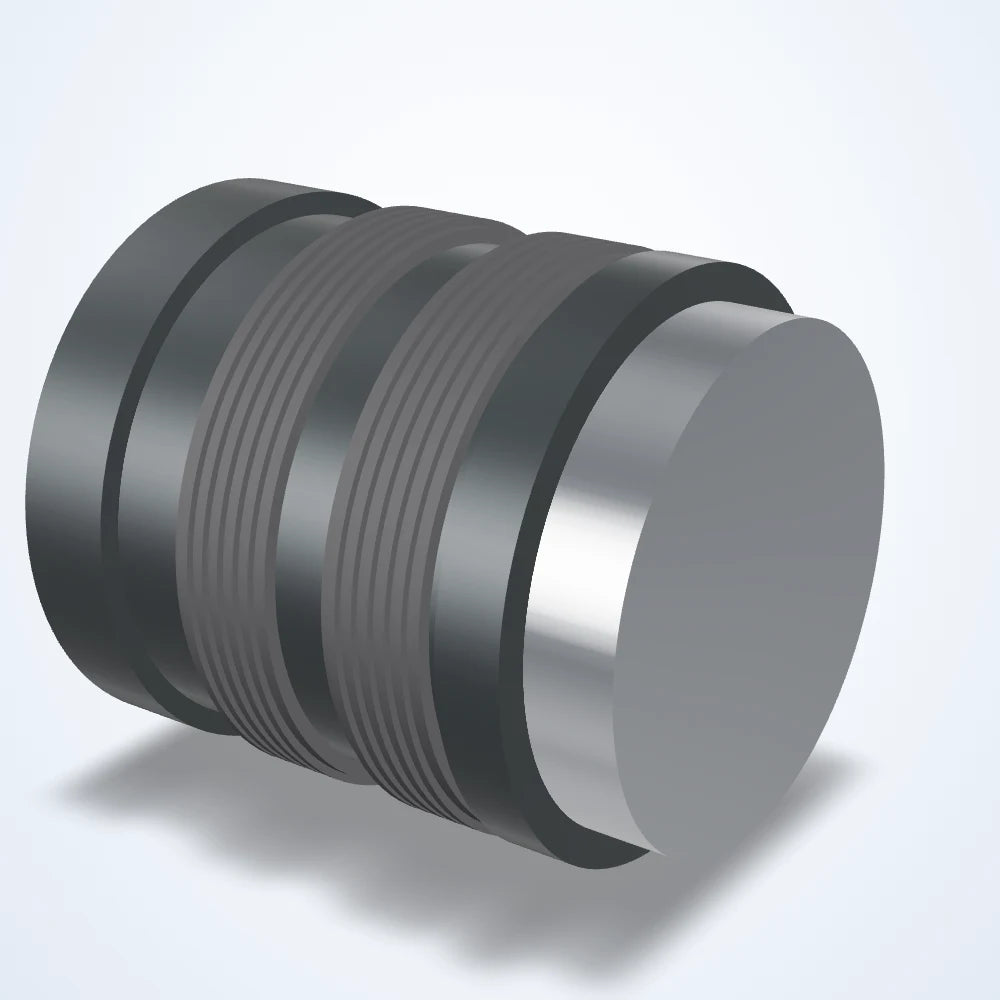

25 mm lens, 1/1.8", C-mount (LS-FFL-0286)
Model LS-FFL-0286
- Focal length25 mm
- MountC-mount
- Sensor1/1.8"
- Aperture1.6-16
- Resolution2
$179.00
Quoted price: add to quote for lead time and volume pricing.
Lead time confirmed with your quote
Collect parts in your quote list; we reply with price, lead time and volume pricing.
Machine vision lens for industrial cameras.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-FFL-0286 |
|---|---|
| Angle of view | 16.6 x 12.5 deg |
| Angle of view 1/2" | 14.6 x 11.0 deg |
| Angle of view 1/3" | 11.0 x 8.2 deg |
| Extending front tube dia. | 26.9mm |
| FOV @ 1/1.8″ | 16.6° × 12.5° |
| FOV @ 1/2″ | 14.6° × 11° |
| FOV @ 1/3″ | 11° × 8.2° |
| Flange back | 17.526mm (in air) |
| Lens type | Fixed Focal Length |
| Minimum object distance (m) | 0.1 |
| Operation | Focus: manual w/lock / Iris: manual w/lock |
| Rear protrusion | 4.61mm |
| Spectrum | Visible |
Optics
| Focal length | 25 mm |
|---|---|
| Aperture (F) | 1.6-16 |
| Back focus (in air) | 12.92mm |
| Filter thread | M25.5x0.5 |
| Focus control | Manual with Lock |
| Focus range | 0.1 m - ∞ |
| Focusing range | 0.1m~inf |
| Iris control | Manual with Lock |
| TV distortion (%) | -0.2 |
Sensor and imaging
| Max. sensor format | 1/1.8" |
|---|---|
| Resolution (MP) | 2 |
Environment and compliance
| Operating temperature | -10~+60 C |
|---|---|
| Operating temperature range | -10 to +60 °C |
Mechanical
| Mount | C-mount |
|---|---|

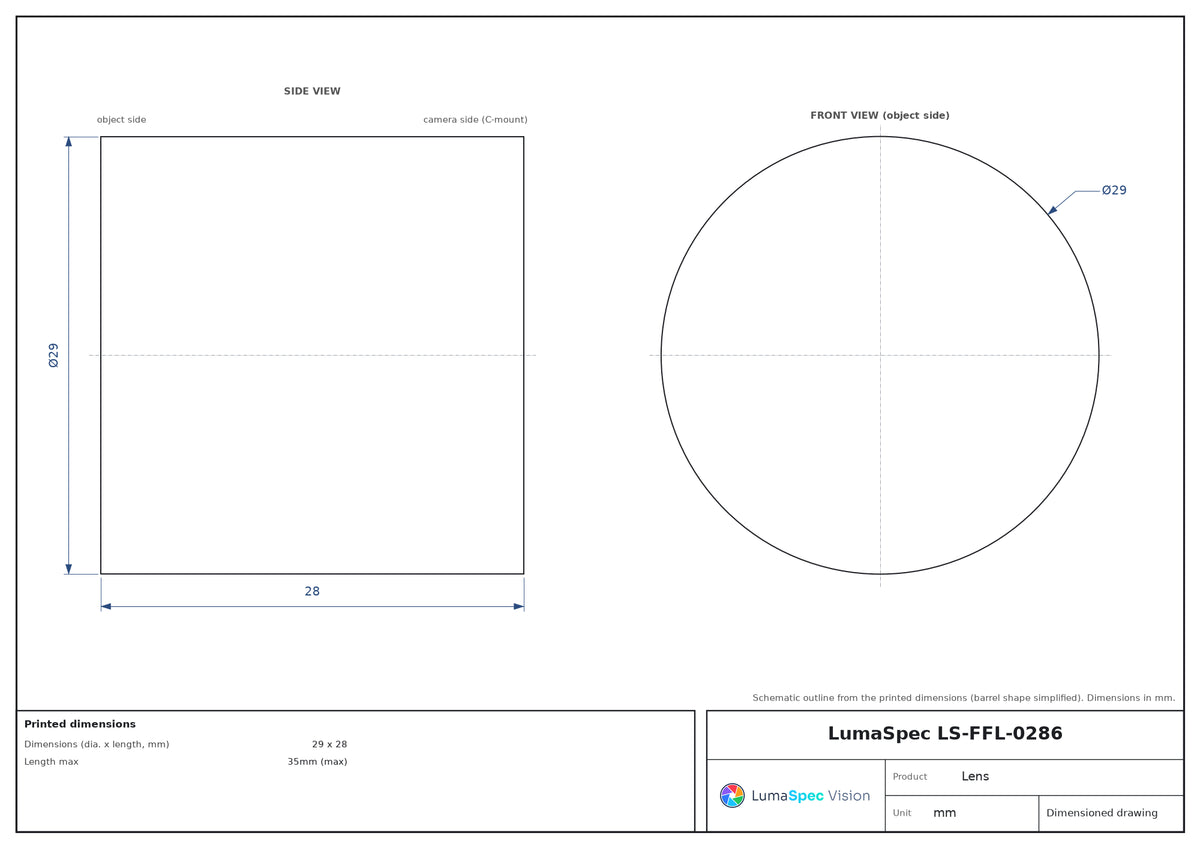

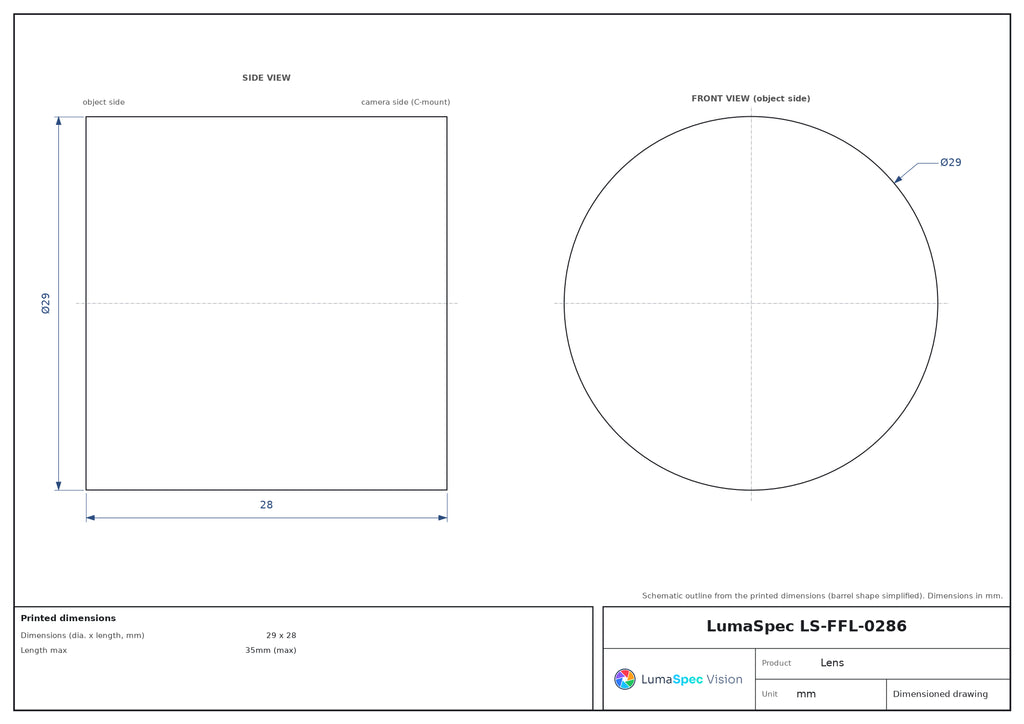

| Dimensions (dia. x length, mm) | 29 x 28 |
| Length max | 35mm (max) |
| Weight (g) | 39 |
