Machine vision lenses

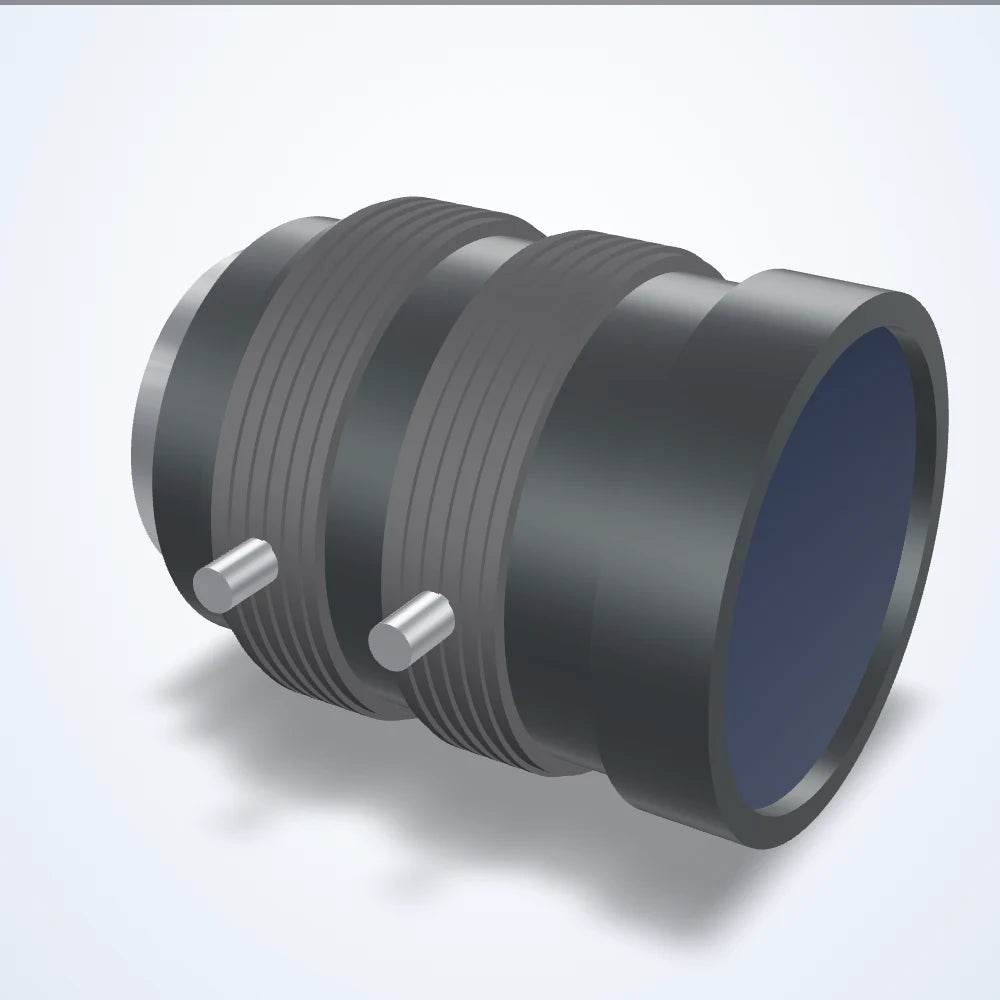

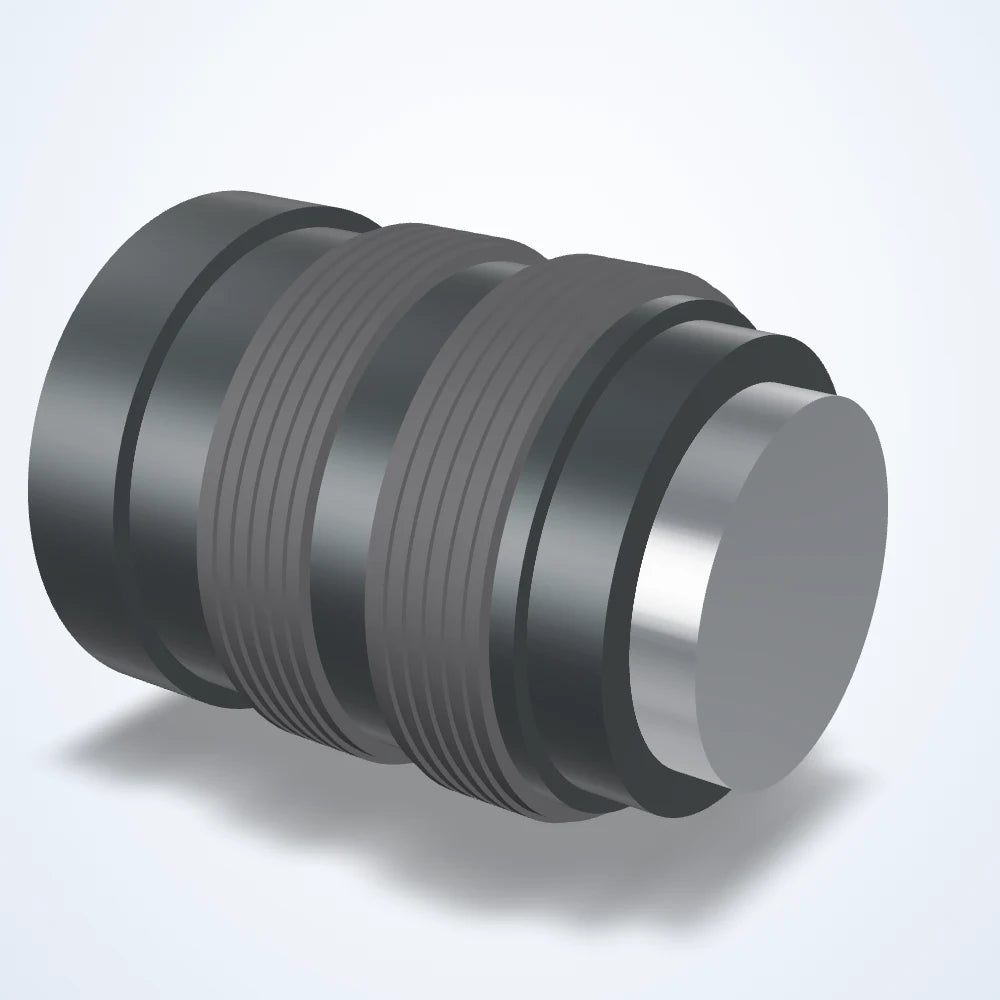

6 mm lens, 1/1.8", C-mount, 2 MP (LS-FFL-0283)
Model LS-FFL-0283
- Focal length6 mm
- MountC-mount
- Sensor1/1.8"
- Aperture1.4-16
- Resolution2
$229.00
Quoted price: add to quote for lead time and volume pricing.
Lead time confirmed with your quote
Collect parts in your quote list; we reply with price, lead time and volume pricing.
Machine vision lens for industrial cameras.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-FFL-0283 |
|---|---|
| Angle of view | 66.1 x 50.8 deg |
| Angle of view 1/2" | 58.9 x 44.9 deg |
| Angle of view 1/3" | 44.9 x 34.0 deg |
| FOV @ 1/1.8″ | 66.1° × 50.8° |
| FOV @ 1/2″ | 58.9° × 44.9° |
| FOV @ 1/3″ | 44.9° × 34° |
| Flange back | 17.526mm (in air) |
| Lens type | Fixed Focal Length |
| Minimum object distance (m) | 0.1 |
| Operation | Focus: manual w/lock / Iris: manual w/lock |
| Rear dia. | 34mm |
| Rear protrusion | 5.65mm (max) |
| Spectrum | Visible |
Optics
| Focal length | 6 mm |
|---|---|
| Aperture (F) | 1.4-16 |
| Filter thread | M34x0.5 |
| Focus control | Manual with Lock |
| Focus range | 0.1 m - ∞ |
| Focusing range | 0.1m~inf |
| Iris control | Manual with Lock |
| TV distortion (%) | -3 |
Sensor and imaging
| Max. sensor format | 1/1.8" |
|---|---|
| Resolution (MP) | 2 |
Light
| Wavelength | Visible light |
|---|
Environment and compliance
| Operating temperature | -10~+60 C |
|---|---|
| Operating temperature range | -10 to +60 °C |
Mechanical
| Mount | C-mount |
|---|---|

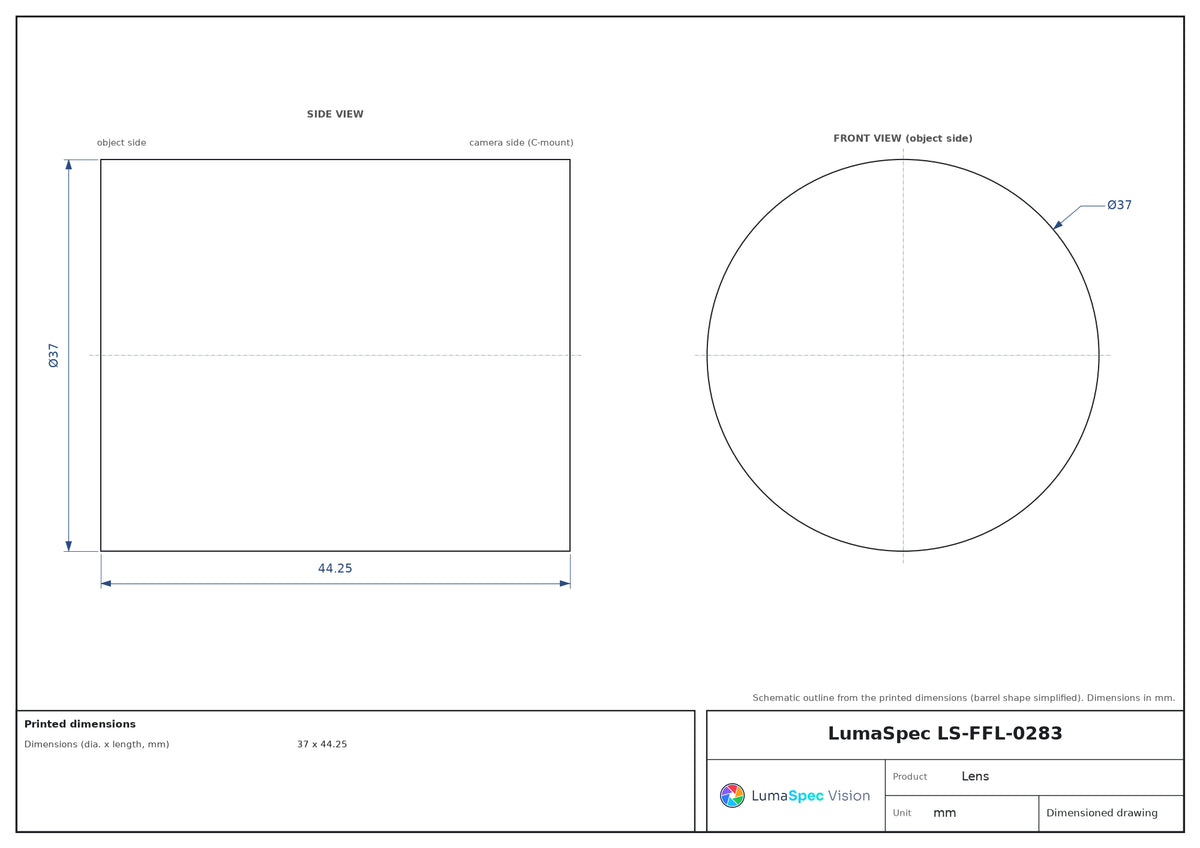

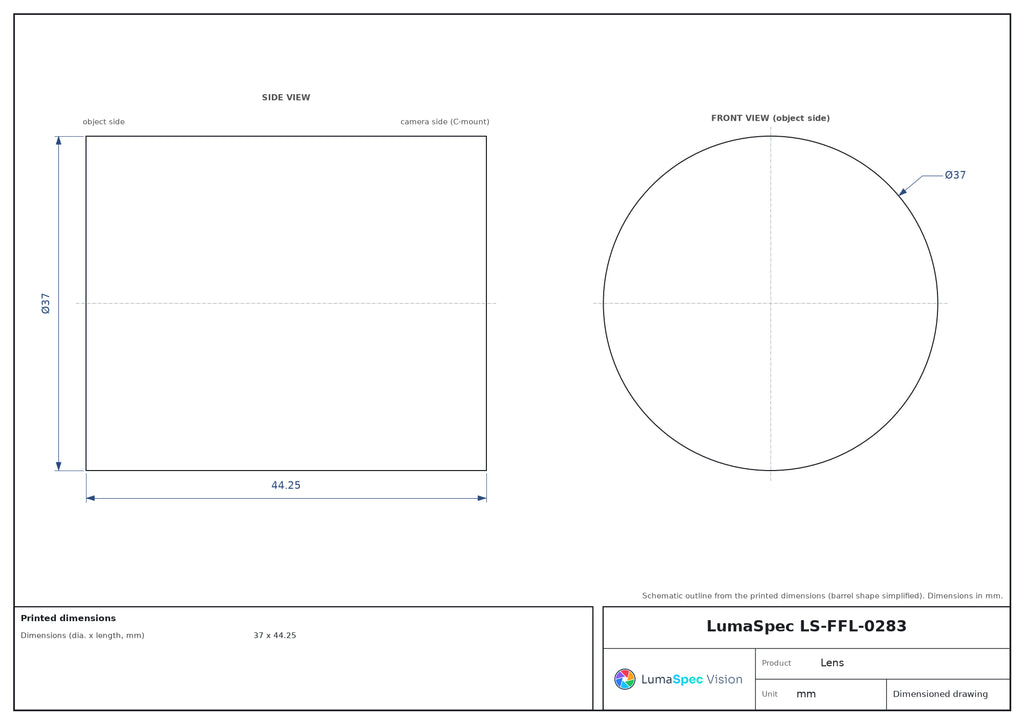

| Dimensions (dia. x length, mm) | 37 x 44.25 |
| Weight (g) | 86 |
