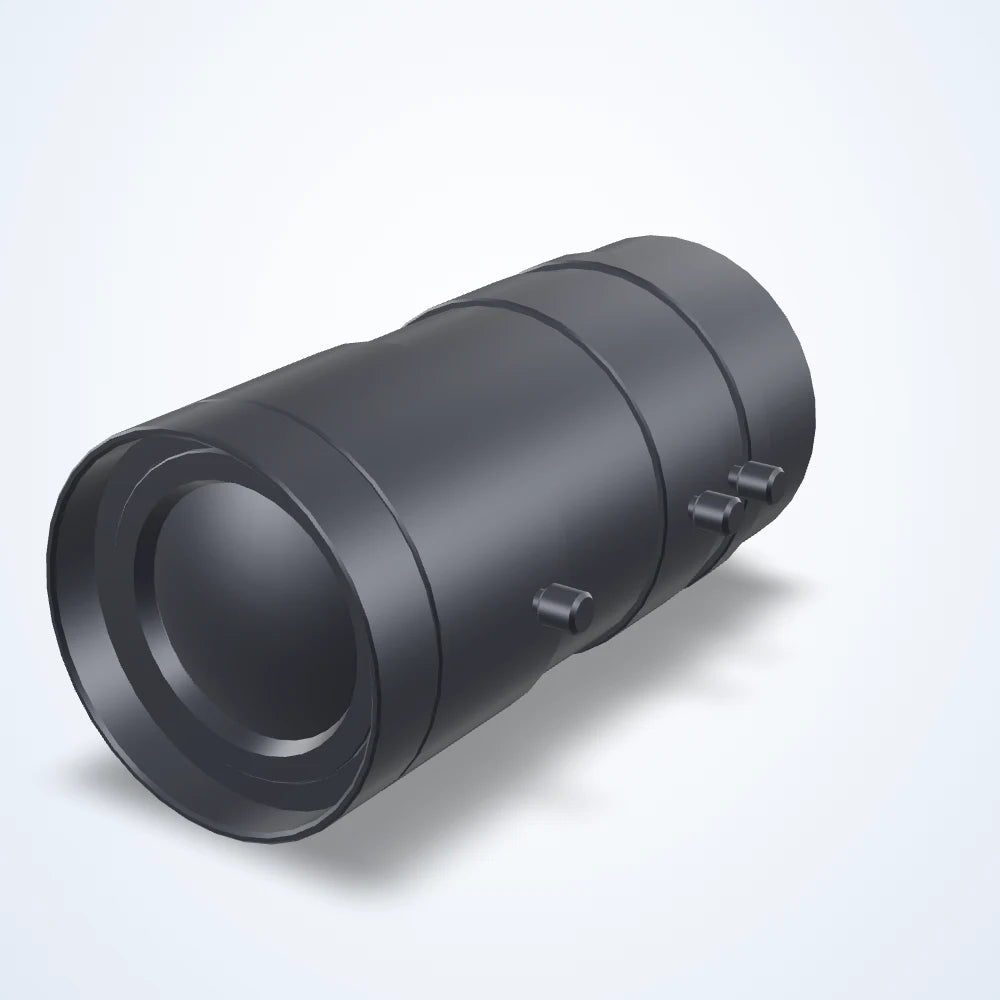

Rendered illustration: the actual product may differ in appearance.
Machine vision lenses
13 - 130 mm lens, 1/2", C-mount (LS-ZML-0020)
Model LS-ZML-0020
- Focal length13 - 130 mm
- Magnification10×
- MountC-mount
- Sensor1/2"
- Aperturef/5.6
- Resolution1
$399.00
Quoted price: add to quote for lead time and volume pricing.
Lead time confirmed with your quote
Collect parts in your quote list; we reply with price, lead time and volume pricing.
Machine vision lens for industrial cameras. Minimum object distance 150 mm.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-ZML-0020 |
|---|---|
| Minimum object distance | 150 mm |
| Aov @ 1/2.7″ h°×v°×d° | 18.0 × 13.8 × 21.6° 3.6 × 2.7 × 4.5° |
| Aov @ 1/3″ h°×v°×d° | 13.8 × 10.6 × 17.0° 2.7 × 2.0 × 3.3° |
| Aov @ 1/4″ h°×v°×d° | 10.6 × 8.0 × 13.0° 2.0 × 1.5 × 2.5° |
| Lens type | Zoom |
| Spectrum | Visible |
| Zoom control | Manual |
| Zoom range | 13 mm - 130 mm |
Optics
| Focal length | 13 - 130 mm |
|---|---|
| Magnification | 10× |
| Aperture (max) | f/5.6 |
| Back focal length | 23.29 mm |
| Filter thread | M46-0.75 |
| Focus control | Manual |
| Focus range | 0.15 m - 0.45 m |
| Image circle | 8 mm |
| Image size dimensions | 6.4 mm x 4.8 mm |
| Iris control | Manual |
Sensor and imaging
| Sensor format | 1/2" |
|---|---|
| Resolution (MP) | 1 |
Environment and compliance
| Operating temperature range | -20 to +50 °C |
|---|

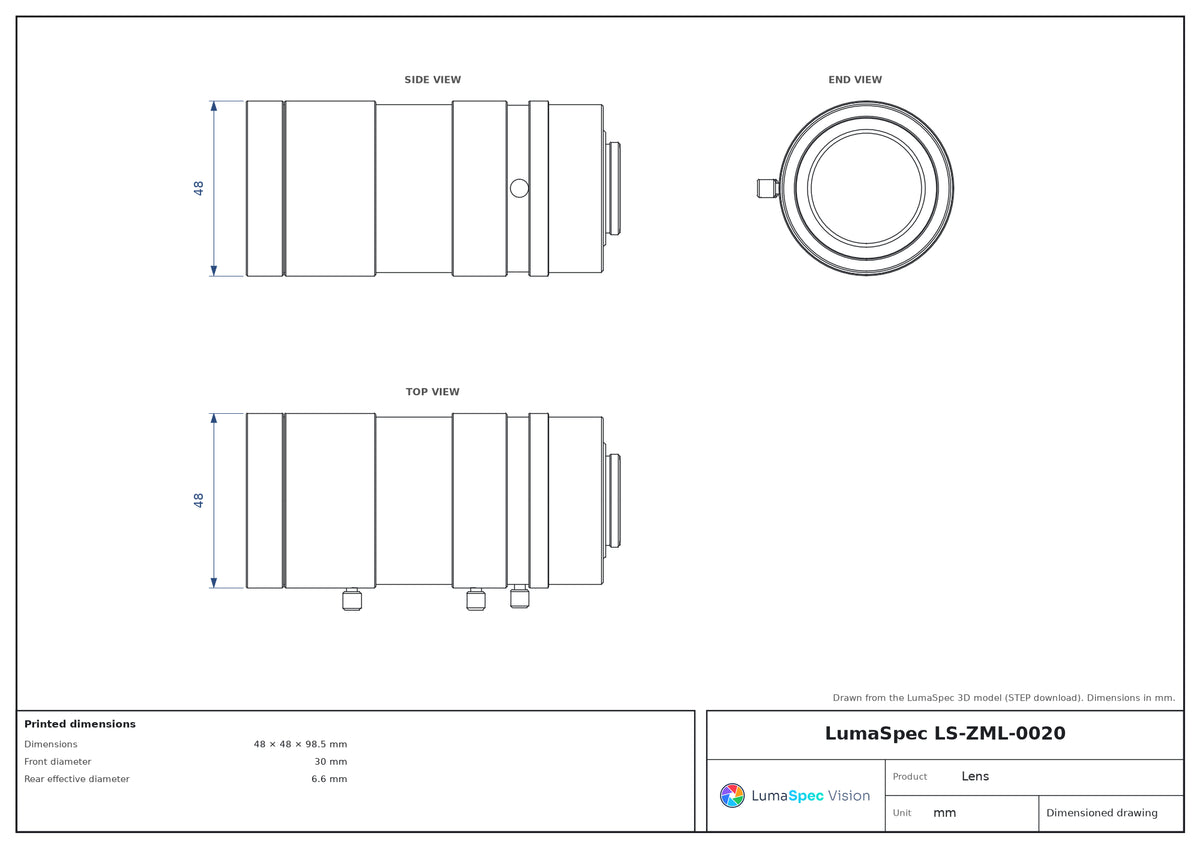

Mechanical
| Mount | C-mount |
|---|---|
| Dimensions | 48 × 48 × 98.5 mm |
| Front diameter | 30 mm |
| Rear effective diameter | 6.6 mm |
| Weight | 260 |
