12 mm, 2/3", 5 MP, C-mount machine vision lens, F1.4 Manual Iris, M30.5 x P0.5 filter thread
LS-FFL-0653
- Focal length 12 mm
- Mount C-mount
- Sensor 2/3"
$179.00
Ships in 2-3 weeks
Lenses
C-mount machine vision lenses
Choose the lens beyond its mountChoose a C-mount lens for an industrial camera by sensor coverage, field of view and working distance. These catalog entries are explicitly classified as C-mount; CS-mount and other lens interfaces are separate choices.
Products
12 mm, 2/3", 5 MP, C-mount machine vision lens, F1.4 manual iris
LS-FFL-0652
- Focal length 12 mm
- Mount C-mount
- Sensor 2/3"
$179.00
Ships in 2-3 weeks

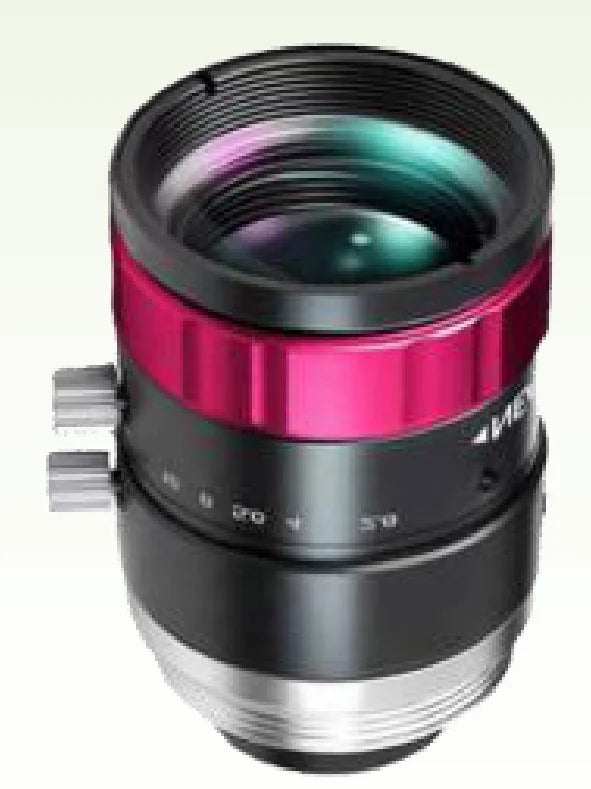

8 mm, 2/3", 10 MP, C-mount machine vision lens, F2.8 Manual iris
LS-FFL-0651
- Focal length 8 mm
- Mount C-mount
- Sensor 2/3"
$309.00
Ships in 2-3 weeks
8 mm, 2/3", 5 MP, C-mount machine vision lens
LS-FFL-0650
- Focal length 8.0 mm
- Mount C-mount
- Sensor 2/3"
$169.00
Ships in 2-3 weeks

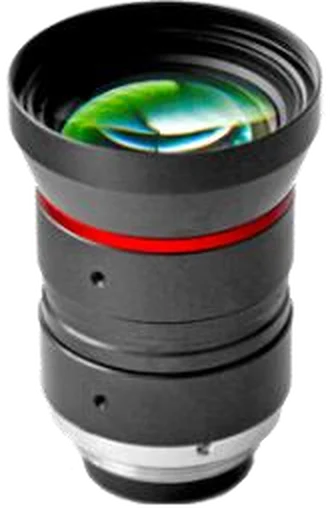

8 mm, 2/3", 10 MP, C-mount machine vision lens, F2.4 manual iris
LS-FFL-0649
- Focal length 8 mm
- Mount C-mount
- Sensor 2/3"
$309.00
Ships in 2-3 weeks
8 mm, 2/3", 5 MP, C-mount machine vision lens
LS-FFL-0647
- Focal length 8 mm
- Mount C-mount
- Sensor 2/3"
$169.00
Ships in 2-3 weeks
8 mm, 2/3", 5 MP, C-mount machine vision lens
LS-FFL-0646
- Focal length 8 mm
- Mount C-mount
- Sensor 2/3"
$169.00
Ships in 2-3 weeks
6 mm, 2/3", 5 MP, C-mount machine vision lens, F1.9-16 Manual iris
LS-FFL-0645
- Focal length 6 mm
- Mount C-mount
- Sensor 2/3"
$239.00
Ships in 2-3 weeks
6 mm, 2/3", 5 MP, C-mount machine vision lens, F1.4-C
LS-FFL-0644
- Focal length 6 mm
- Mount C-mount
- Sensor 2/3"
$239.00
Ships in 2-3 weeks
5 mm, 2/3", 6 MP, C-mount machine vision lens
LS-FFL-0643
- Focal length 5 mm
- Mount C-mount
- Sensor 2/3"
$229.00
Ships in 2-3 weeks

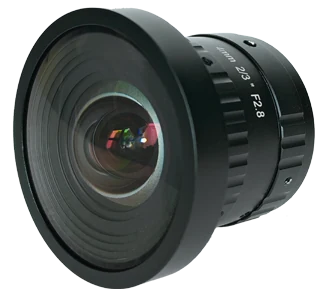

4 mm, 2/3", 6 MP, C-mount machine vision lens
LS-FFL-0642
- Focal length 4 mm
- Magnification 0.0351x @ 100 mm WD
- Mount C-mount
$229.00
Ships in 2-3 weeks
100 mm, 1", 8 MP, C-mount machine vision lens
LS-FFL-0637
- Focal length 100 mm
- Mount C-mount
- Sensor 1"
$469.00
Ships in 2-3 weeks
75 mm, 1", 10 MP, C-mount machine vision lens, 1" (16 mm)
LS-FFL-0636
- Focal length 75 mm
- Mount C-mount
- Sensor 1"
$549.00
Ships in 2-3 weeks
75 mm, 1", 5 MP, C-mount machine vision lens
LS-FFL-0634
- Focal length 75 mm
- Magnification 0.055x ~ 0.115x
- Mount C-mount
$429.00
Ships in 2-3 weeks
75 mm, 1", 10 MP, C-mount machine vision lens
LS-FFL-0635
- Focal length 75 mm
- Mount C-mount
- Sensor 1"
$549.00
Ships in 2-3 weeks

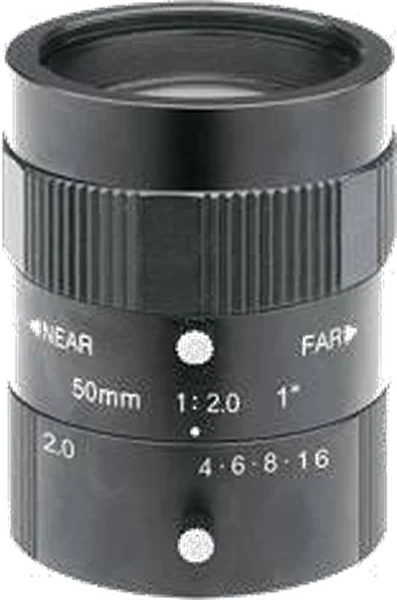

50 mm, 1", 5 MP, C-mount machine vision lens, F2.0 Manual Iris
LS-FFL-0631
- Focal length 50 mm
- Mount C-mount
- Sensor 1"
$369.00
Ships in 2-3 weeks
50 mm, 1", 10 MP, C-mount machine vision lens, F2.0 Manual iris
LS-FFL-0632
- Focal length 50 mm
- Mount C-mount
- Sensor 1"
$499.00
Ships in 2-3 weeks
50 mm, 1", 5 MP, C-mount machine vision lens, F1.4 Manual iris
LS-FFL-0629
- Focal length 50 mm
- Magnification 0.05x ~ 0.163x
- Mount C-mount
$369.00
Ships in 2-3 weeks
50 mm, 1", 12 MP, C-mount machine vision lens, BFL 17.27 mm
LS-FFL-0628
- Focal length 50 mm
- Mount C-mount
- Sensor 1"
$499.00
Ships in 2-3 weeks

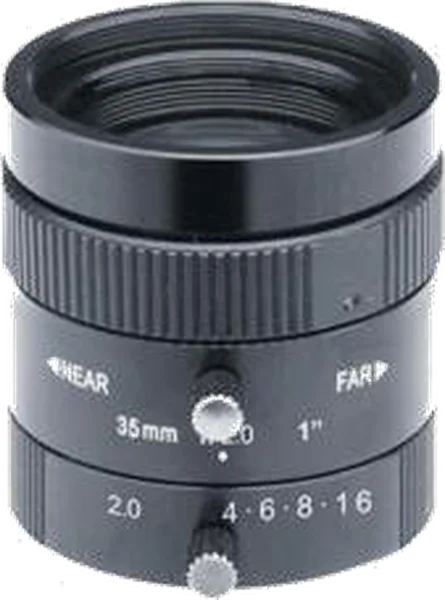

35 mm, 1", 5 MP, C-mount machine vision lens
LS-FFL-0626
- Focal length 35 mm
- Mount C-mount
- Sensor 1"
$339.00
Ships in 2-3 weeks
35 mm, 1", 10 MP, C-mount machine vision lens, F2.0 Manual iris
LS-FFL-0627
- Focal length 35 mm
- Mount C-mount
- Sensor 1"
$479.00
Ships in 2-3 weeks
35 mm, 1", 5 MP, C-mount machine vision lens, -0.09x
LS-FFL-0625
- Focal length 35 mm
- Magnification 0.09x
- Mount C-mount
$339.00
Ships in 2-3 weeks
35 mm, 1", 5 MP, C-mount machine vision lens, -0.036x ~ -0.244x
LS-FFL-0623
- Focal length 35 mm
- Magnification 0.036x ~ 0.244x
- Mount C-mount
$339.00
Ships in 2-3 weeks
35 mm, 1", 10 MP, C-mount machine vision lens, F1.2 Manual Iris
LS-FFL-0622
- Focal length 35 mm
- Mount C-mount
- Sensor 1"
$479.00
Ships in 2-3 weeks
| Compare | |||||||||
|---|---|---|---|---|---|---|---|---|---|
 LS-FFL-065312 mm, 2/3", 5 MP, C-mount machine vision lens, F1.4 Manual Iris, M30.5 x P0.5 filter thread
| 12 mm | C-mount | 2/3" | F1.4 Manual Iris | 5.0 Megapixel | - | $179.00 | Ships in 2-3 weeks | |
 LS-FFL-065212 mm, 2/3", 5 MP, C-mount machine vision lens, F1.4 manual iris
| 12 mm | C-mount | 2/3" | F1.4 manual iris | 5.0 MP | - | $179.00 | Ships in 2-3 weeks | |
 LS-FFL-06518 mm, 2/3", 10 MP, C-mount machine vision lens, F2.8 Manual iris
| 8 mm | C-mount | 2/3" | F2.8 Manual iris | 10 Megapixel | - | $309.00 | Ships in 2-3 weeks | |
 LS-FFL-06508 mm, 2/3", 5 MP, C-mount machine vision lens
| 8.0 mm | C-mount | 2/3" | F2.5 Manual iris | 5.0 Megapixel | - | $169.00 | Ships in 2-3 weeks | |
 LS-FFL-06498 mm, 2/3", 10 MP, C-mount machine vision lens, F2.4 manual iris
| 8 mm | C-mount | 2/3" | F2.4 manual iris | 10 MP | - | $309.00 | Ships in 2-3 weeks | |
 LS-FFL-06478 mm, 2/3", 5 MP, C-mount machine vision lens
| 8 mm | C-mount | 2/3" | F1.4 Manual Iris | 5.0 MP | - | $169.00 | Ships in 2-3 weeks | |
 LS-FFL-06468 mm, 2/3", 5 MP, C-mount machine vision lens
| 8 mm | C-mount | 2/3" | F1.4-16 Manual iris | 5.0 Megapixel | - | $169.00 | Ships in 2-3 weeks | |
 LS-FFL-06456 mm, 2/3", 5 MP, C-mount machine vision lens, F1.9-16 Manual iris
| 6 mm | C-mount | 2/3" | F1.9-16 Manual iris | 5.0 Megapixel | - | $239.00 | Ships in 2-3 weeks | |
 LS-FFL-06446 mm, 2/3", 5 MP, C-mount machine vision lens, F1.4-C
| 6 mm | C-mount | 2/3" | F1.4-C | 5.0 Megapixel | - | $239.00 | Ships in 2-3 weeks | |
 LS-FFL-06435 mm, 2/3", 6 MP, C-mount machine vision lens
| 5 mm | C-mount | 2/3" | F2.8~16 | 6 MP | 0.1 m ~ inf. | $229.00 | Ships in 2-3 weeks | |
 LS-FFL-06424 mm, 2/3", 6 MP, C-mount machine vision lens
| 4 mm | C-mount | 2/3" | F2.8 manual iris | 6.0 MP | - | $229.00 | Ships in 2-3 weeks | |
 LS-FFL-0637100 mm, 1", 8 MP, C-mount machine vision lens
| 100 mm | C-mount | 1" | F3.5 Manual Iris | 8.0 Megapixel | - | $469.00 | Ships in 2-3 weeks | |
 LS-FFL-063675 mm, 1", 10 MP, C-mount machine vision lens, 1" (16 mm)
| 75 mm | C-mount | 1" | F2.8 Manual iris | 10 Megapixel | - | $549.00 | Ships in 2-3 weeks | |
 LS-FFL-063475 mm, 1", 5 MP, C-mount machine vision lens
| 75 mm | C-mount | 1" | F1.8 Manual iris | 5.0 Megapixel | - | $429.00 | Ships in 2-3 weeks | |
 LS-FFL-063575 mm, 1", 10 MP, C-mount machine vision lens
| 75 mm | C-mount | 1" | F1.8 Manual Iris | 10 MP | - | $549.00 | Ships in 2-3 weeks | |
 LS-FFL-063150 mm, 1", 5 MP, C-mount machine vision lens, F2.0 Manual Iris
| 50 mm | C-mount | 1" | F2.0 Manual Iris | 5.0 Megapixel | - | $369.00 | Ships in 2-3 weeks | |
 LS-FFL-063250 mm, 1", 10 MP, C-mount machine vision lens, F2.0 Manual iris
| 50 mm | C-mount | 1" | F2.0 Manual iris | 10 Megapixel | - | $499.00 | Ships in 2-3 weeks | |
 LS-FFL-062950 mm, 1", 5 MP, C-mount machine vision lens, F1.4 Manual iris
| 50 mm | C-mount | 1" | F1.4 Manual iris | 5.0 Megapixel | - | $369.00 | Ships in 2-3 weeks | |
 LS-FFL-062850 mm, 1", 12 MP, C-mount machine vision lens, BFL 17.27 mm
| 50 mm | C-mount | 1" | F1.3 manual iris | 12 MP | - | $499.00 | Ships in 2-3 weeks | |
 LS-FFL-062635 mm, 1", 5 MP, C-mount machine vision lens
| 35 mm | C-mount | 1" | F2.0 Manual Iris | 5.0 Megapixel | - | $339.00 | Ships in 2-3 weeks | |
 LS-FFL-062735 mm, 1", 10 MP, C-mount machine vision lens, F2.0 Manual iris
| 35 mm | C-mount | 1" | F2.0 Manual iris | 10 Megapixel | - | $479.00 | Ships in 2-3 weeks | |
 LS-FFL-062535 mm, 1", 5 MP, C-mount machine vision lens, -0.09x
| 35 mm | C-mount | 1" | F1.6 Manual iris | 5.0 Megapixel | - | $339.00 | Ships in 2-3 weeks | |
 LS-FFL-062335 mm, 1", 5 MP, C-mount machine vision lens, -0.036x ~ -0.244x
| 35 mm | C-mount | 1" | F1.4 Manual iris | 5.0 Megapixel | - | $339.00 | Ships in 2-3 weeks | |
 LS-FFL-062235 mm, 1", 10 MP, C-mount machine vision lens, F1.2 Manual Iris
| 35 mm | C-mount | 1" | F1.2 Manual Iris | 10 Megapixel | - | $479.00 | Ships in 2-3 weeks |
Choose the lens beyond its mount
A matching thread is the start of a lens selection. The lens must also cover the sensor and form the required field at the available working distance. Use the individual specifications to compare focal length, image circle and focus range before choosing a model.
- Match the camera mount and flange arrangement. A CS-mount camera is a different mechanical case; confirm the adapter or spacer arrangement rather than treating the two mounts as interchangeable.
- Compare the sensor diagonal with the rated image circle. A lens may attach correctly and still vignette the corners of a larger sensor.
- Set the field of view and working distance first, then check focal length, aperture, resolution and the clearance needed for connectors and mounting.
