12 mm, 2/3", 5 MP, C-mount Machine Vision Lens, 5.0 MP, F1.4 manual iris (LS-FFL-0652)
  • 12 mm, 2/3", 5 MP, C-mount Machine Vision Lens, 5.0 MP, F1.4 manual iris (LS-FFL-0652)

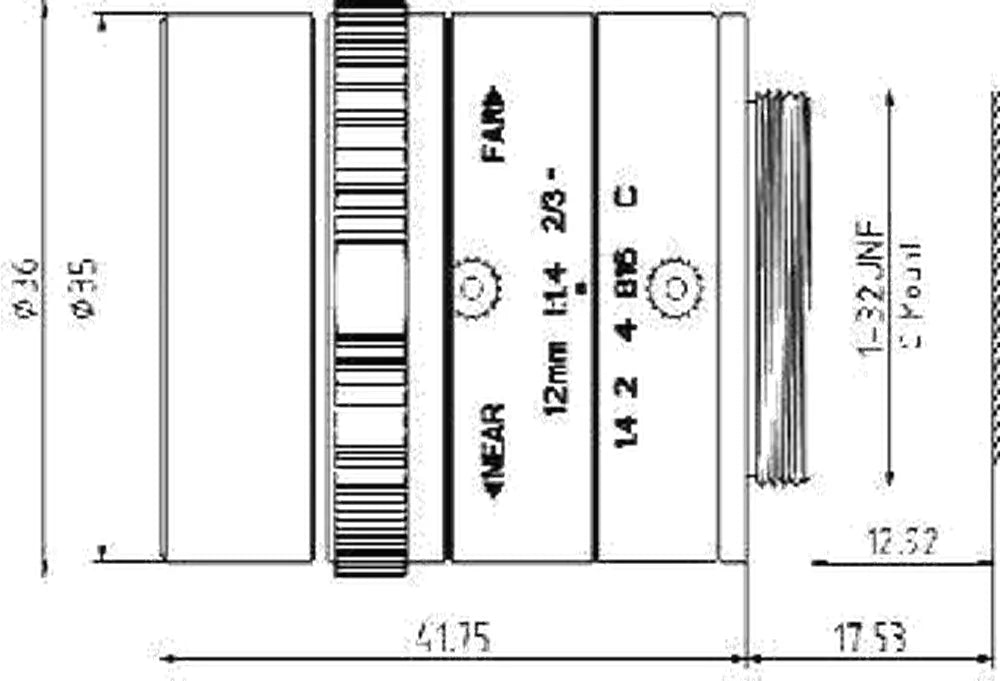

  • LS-FFL-0652 dimensions (mm)

Machine vision lenses

12 mm, 2/3", 5 MP, C-mount Machine Vision Lens, 5.0 MP, F1.4 manual iris (LS-FFL-0652)

Model LS-FFL-0652

  • Focal length12 mm
  • MountC-mount
  • Sensor2/3"
  • ApertureF1.4 manual iris
  • Resolution5.0 MP
$179.00

Ships in 2-3 weeks

0.25 kg shipping weight

Volume pricing, Net 30 terms or a formal quote for purchasing?

Request a quote

12 mm, 2/3", 5 MP, C-mount Machine Vision Lens, 5.0 MP, F1.4 manual iris (LS-FFL-0652)LS-FFL-0652

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

12 mm, 2/3", 5 MP, C-mount Machine Vision Lens. 12 mm 2/3" 5 MP C-mount F1.4 machine vision lens with <1% distortion. At a glance: focal length 12 mm; format 2/3"; resolution 5.0 MP; aperture F1.4 manual iris; mount C.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-FFL-0652
Format2/3"
Angle of view (2/3")48 x 38 x 28 deg
Angle of view (2/3", DxHxV)48 x 38 x 28 deg

Optics

Focal length12 mm
ApertureF1.4 manual iris
Back focal length15.32 mm
M.O.D.0.1 m
Distortion<1%

Sensor and imaging

Resolution5.0 MP

Mechanical

Sizedia. 36 x 41.75
MountC
Weight105 g
Optical total length58.4 mm
Shipping weight (estimated)0.25 kg
