Machine vision lenses

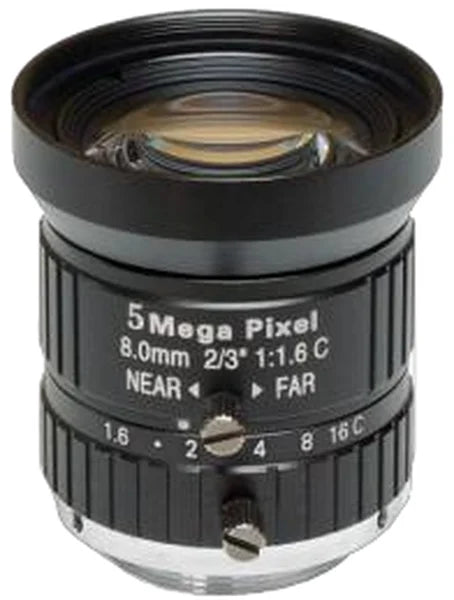

8 mm, 2/3", 5 MP, C-mount Machine Vision Lens, 8.0 mm, 2/3" (dia. 11), 5.0 Megapixel (LS-FFL-0648)
Model LS-FFL-0648
- Focal length8.0 mm
- MountC-mount
- Sensor2/3"
- ApertureF1.6 Manual iris
- Resolution5.0 Megapixel
$169.00
In stock - ships the same business day (2 available, order by 2 PM ET)
0.24 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
8 mm, 2/3", 5 MP, C-mount Machine Vision Lens. Economy 8 mm 2/3" 5 MP C-mount FA lens with F1.6 manual iris. At a glance: focal length 8.0 mm; format 2/3" (dia. 11); resolution 5.0 Megapixel; aperture F1.6 Manual iris; mount C.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-FFL-0648 |
|---|---|
| Format | 2/3" (dia. 11) |
| Angle of view (2/3") | 56.6 x 43.9 deg |
| Angle of view (1/1.8") | 47.4 x 36.3 deg |
| Angle of view (1/2") | 42.6 x 32.5 deg |
| Notes | 7G element |
Optics
| Focal length | 8.0 mm |
|---|---|
| Aperture | F1.6 Manual iris |
| M.O.D. | 0.15 m |
| Distortion | -0.75% |
| Filter thread | M37 x 0.5 |
Sensor and imaging
| Resolution | 5.0 Megapixel |
|---|
Mechanical

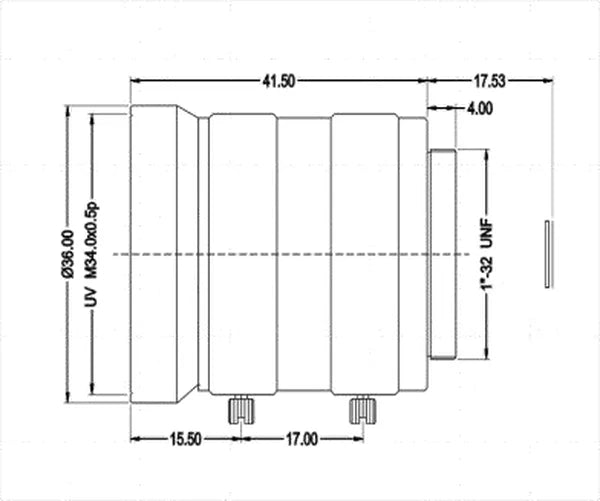

| Size | dia. 39 x 41.5 mm |
|---|---|
| Mount | C |
| Weight | 100 g |
| Shipping weight (estimated) | 0.24 kg |
