8 mm, 2/3", 5 MP, C-mount Machine Vision Lens, 5.0 Megapixel (LS-FFL-0646)
  • 8 mm, 2/3", 5 MP, C-mount Machine Vision Lens, 5.0 Megapixel (LS-FFL-0646)

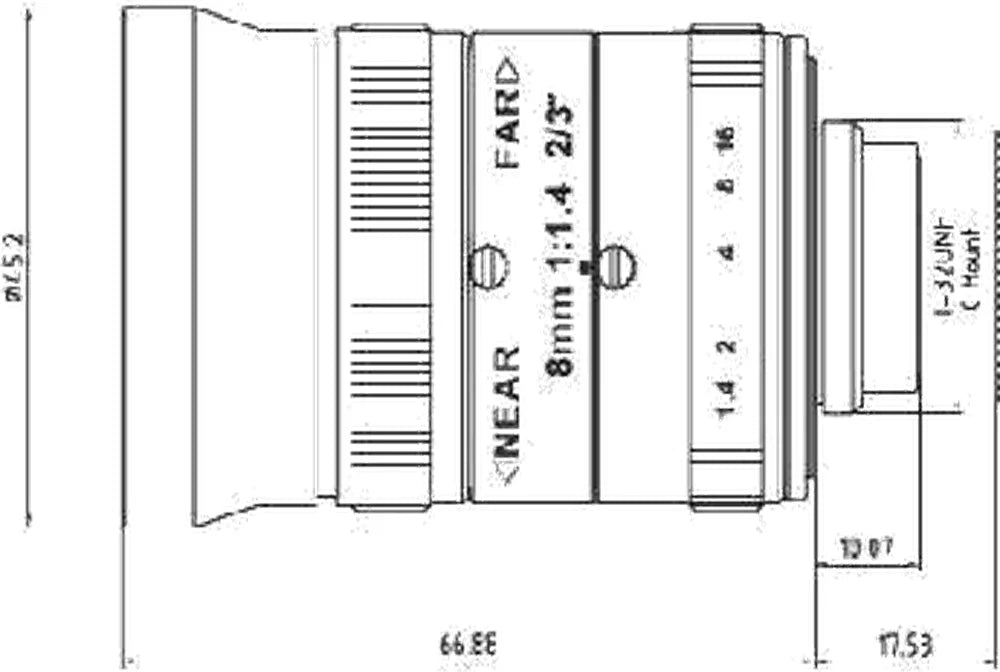

  • LS-FFL-0646 dimensions (mm)

Machine vision lenses

8 mm, 2/3", 5 MP, C-mount Machine Vision Lens, 5.0 Megapixel (LS-FFL-0646)

Model LS-FFL-0646

  • Focal length8 mm
  • MountC-mount
  • Sensor2/3"
  • ApertureF1.4-16 Manual iris
  • Resolution5.0 Megapixel
$169.00

Ships in 2-3 weeks

0.35 kg shipping weight

Volume pricing, Net 30 terms or a formal quote for purchasing?

Request a quote

8 mm, 2/3", 5 MP, C-mount Machine Vision Lens, 5.0 Megapixel (LS-FFL-0646)LS-FFL-0646

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

8 mm, 2/3", 5 MP, C-mount Machine Vision Lens. 5.0 megapixel 8 mm machine vision lens with a 2/3" format covering 2/3", 1/1.8" and 1/2" cameras. F1.4 aperture and <1.5% low distortion. At a glance: focal length 8 mm; format 2/3"; resolution 5.0 Megapixel; aperture F1.4-16 Manual iris; mount C.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-FFL-0646
Format2/3"
Angle of view (2/3")67 x 55 x 43 deg
B.F.L.7.79 mm
Angle of view (2/3", DxHxV)67 x 55 x 43 deg

Optics

Focal length8 mm
ApertureF1.4-16 Manual iris
M.O.D.0.2 m
Distortion<1.5%
Back focal length7.9 mm

Sensor and imaging

Resolution5.0 Megapixel

Mechanical

Sizedia. 45.2 x 66.8 mm
MountC
Weight180 g
Optical total length81.2 mm
Shipping weight (estimated)0.35 kg
